CE1750XWN0 02 – SECTION
Written by
in

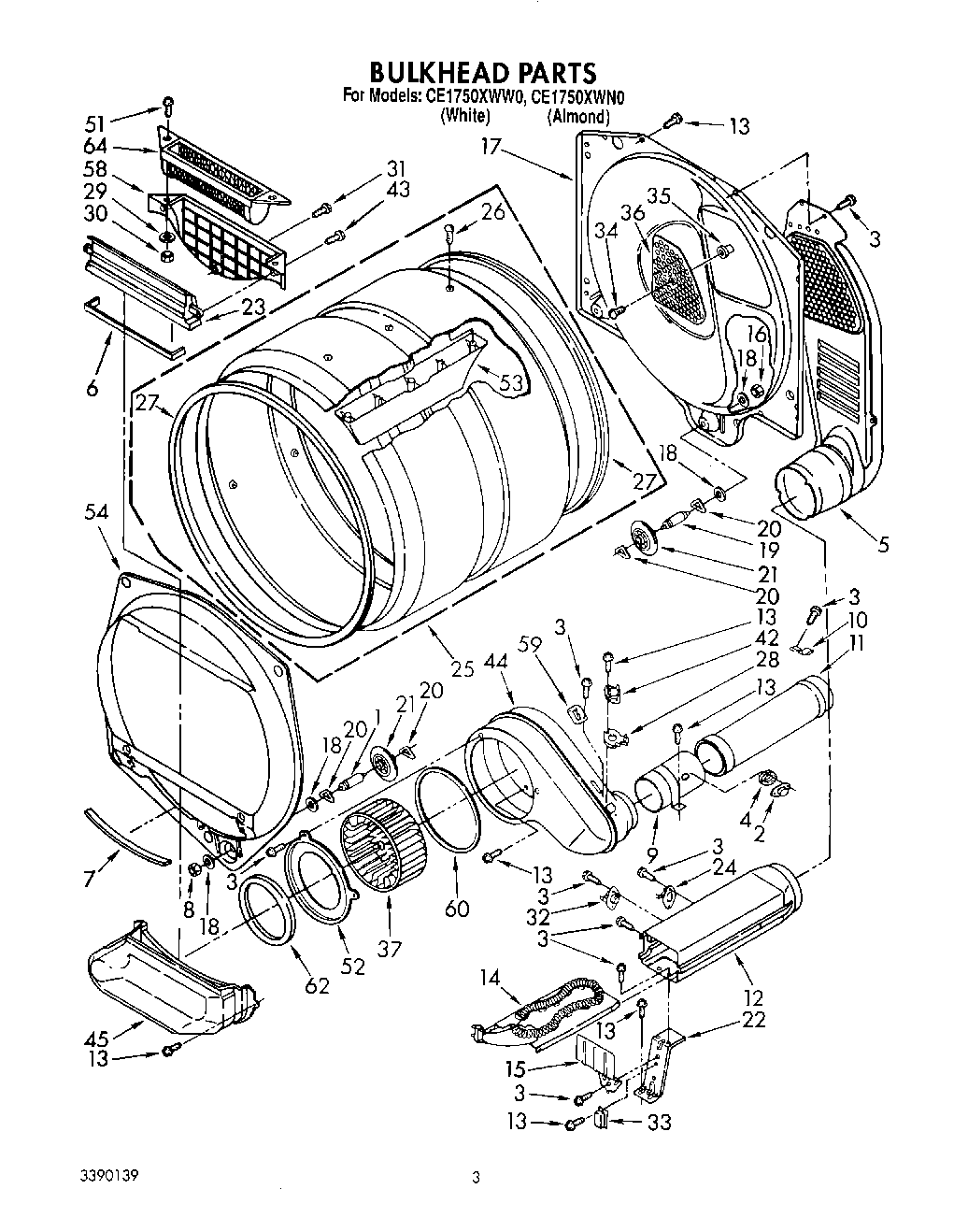

CE1750XWN0 02 – SECTION
Products
Position
Product
350930 Whirlpool White Spray Paint
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
WPL 72112
WPL LIT3396003
WPL LIT3390150
WPL LIT3390139
Golden Harvest
72113 Whirlpool Touch-Up Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
Platinum (Uncut)
1
SHAFT
2
Thermostat, 140~F (60C)
3
WPW10139210 Whirlpool Screw
4
Seal, Thermostat
5
WP3387911 Whirlpool Air Duct
6
WP697813 Whirlpool Seal
8
WP3359452 Whirlpool Nut
9
Exhaust Pipe Assembly
10
Clip, Multivent
11
Extension, Exhaust Pipe
12
W10802681 Whirlpool Box Assembly
13
WP488729 Whirlpool Refrigerator Door Screw
14
W10864898 Whirlpool Dryer Heating Element
15
Shield, Heat
16
Nut, 3/8-16 (L.H.)
17
W11299300 Whirlpool Bulkhead Assembly
18
W11236646 Whirlpool Washer Assembly
19
SHAFT
20
WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21
349241T Whirlpool Dryer Drum Support Roller Kit
22
Bracket, Heater
23
Housing, Outlet
24
279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
25
W10545924 Whirlpool Drum Assembly
26
Screw
27
280114 Whirlpool Dryer Drum Seal
28
Heater, Thermostat
29
Washer, No. 10
30
Nut, Hex
32
THRMST-FIX
33
WP8566493 Whirlpool Relay
34
Screw, 10-32 x 1/2
35
Push-Nut
36
Cover, Air Duct (Includes Illus. Nos. 34 & 35)
37
WP697772 Whirlpool Dryer Blower Wheel
42
WP3387138 Whirlpool Cycling Thermostat
42
WP694674 Whirlpool Cycling Thermostat
43
WP3387230 Whirlpool Screw
44
WP8544363 Whirlpool Housing
45
Lint Duct Assembly
51
WP179051 Whirlpool Screw
52
279780 Whirlpool Plate Cover
53
WPW10113136 Whirlpool Drum Baffle
54
WP697557 Whirlpool Bulkhead Assembly
58
Cover, Lint Screen
59
WP3390719 Whirlpool Dryer Thermal Fuse
60
WP697770 Whirlpool Blower Cover Plate Seal
62
WP8566209 Whirlpool Seal
64
Screen, Lint
←
