CE1750XWN1 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	WPL LIT3401134
	WPL LIT3402325
	Golden Harvest
	72113 Whirlpool Touch-Up Paint
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz

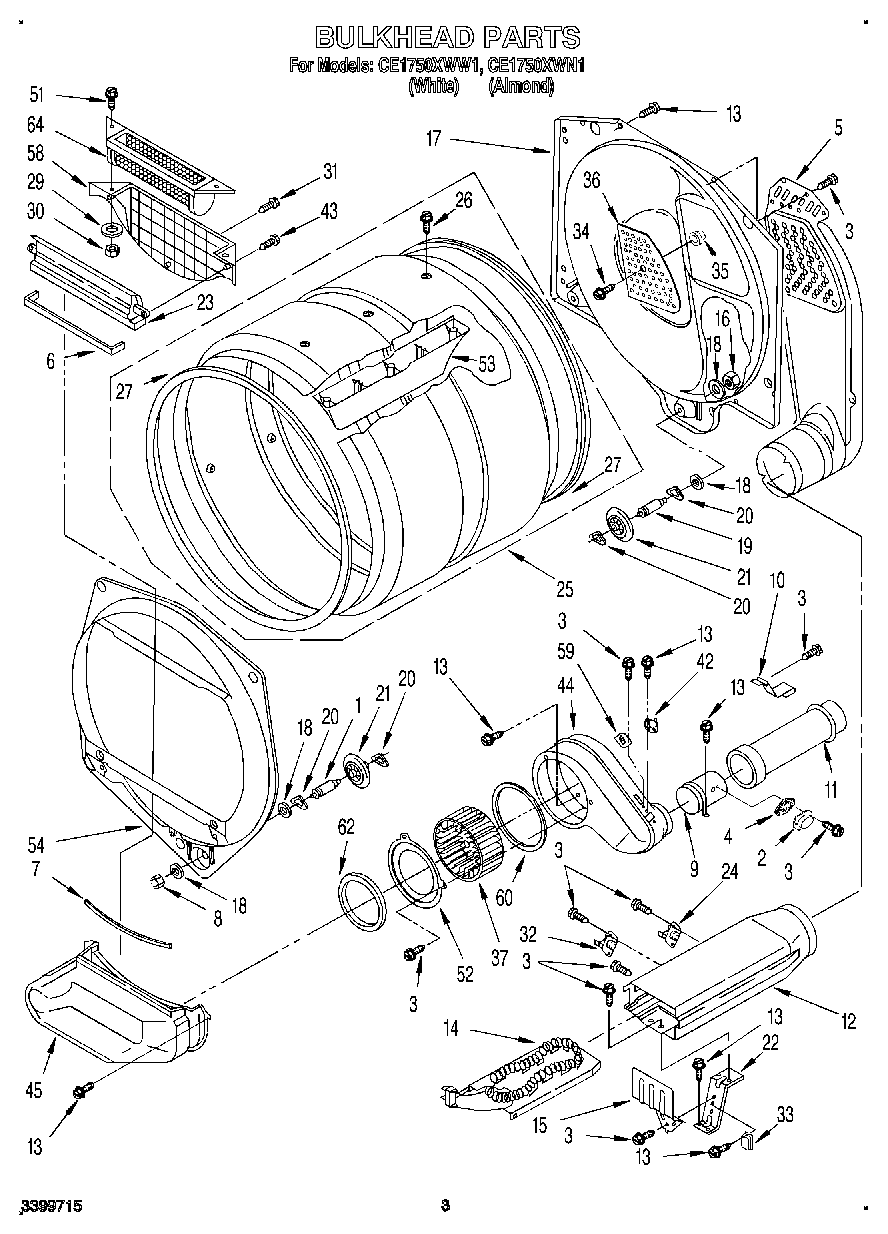

1	SHAFT
2	Thermostat, 140~F (60C)
3	WPW10139210 Whirlpool Screw
4	Seal, Thermostat
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WP3359452 Whirlpool Nut
9	Exhaust Pipe Assembly
10	WP3395536 Whirlpool Clip Assembly
11	Extension, Exhaust Pipe
12	W10802681 Whirlpool Box Assembly
13	WP488729 Whirlpool Refrigerator Door Screw
14	W10864898 Whirlpool Dryer Heating Element
15	Shield, Heat
16	Nut, 3/8-16 (L.H.)
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	Bracket, Heater
23	Housing, Outlet
24	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
25	Drum Complete
26	Screw
27	280114 Whirlpool Dryer Drum Seal
29	Washer, No. 10
30	Nut, Hex
32	THRMST-FIX
33	WP8566493 Whirlpool Relay
34	Screw, 10-32 x 1/2
35	Push-Nut
36	Cover, Air Duct (Includes Illus. Nos. 34 & 35)
37	WP697772 Whirlpool Dryer Blower Wheel
37	WP3387138 Whirlpool Cycling Thermostat
43	WP3387230 Whirlpool Screw
44	WP8544363 Whirlpool Housing
45	Lint Duct Assembly
51	WP179051 Whirlpool Screw
52	279780 Whirlpool Plate Cover
53	WPW10113136 Whirlpool Drum Baffle
54	WP697557 Whirlpool Bulkhead Assembly
58	Cover, Lint Screen
59	WP3390719 Whirlpool Dryer Thermal Fuse
60	WP697770 Whirlpool Blower Cover Plate Seal
62	WP8566209 Whirlpool Seal
64	Screen, Lint
