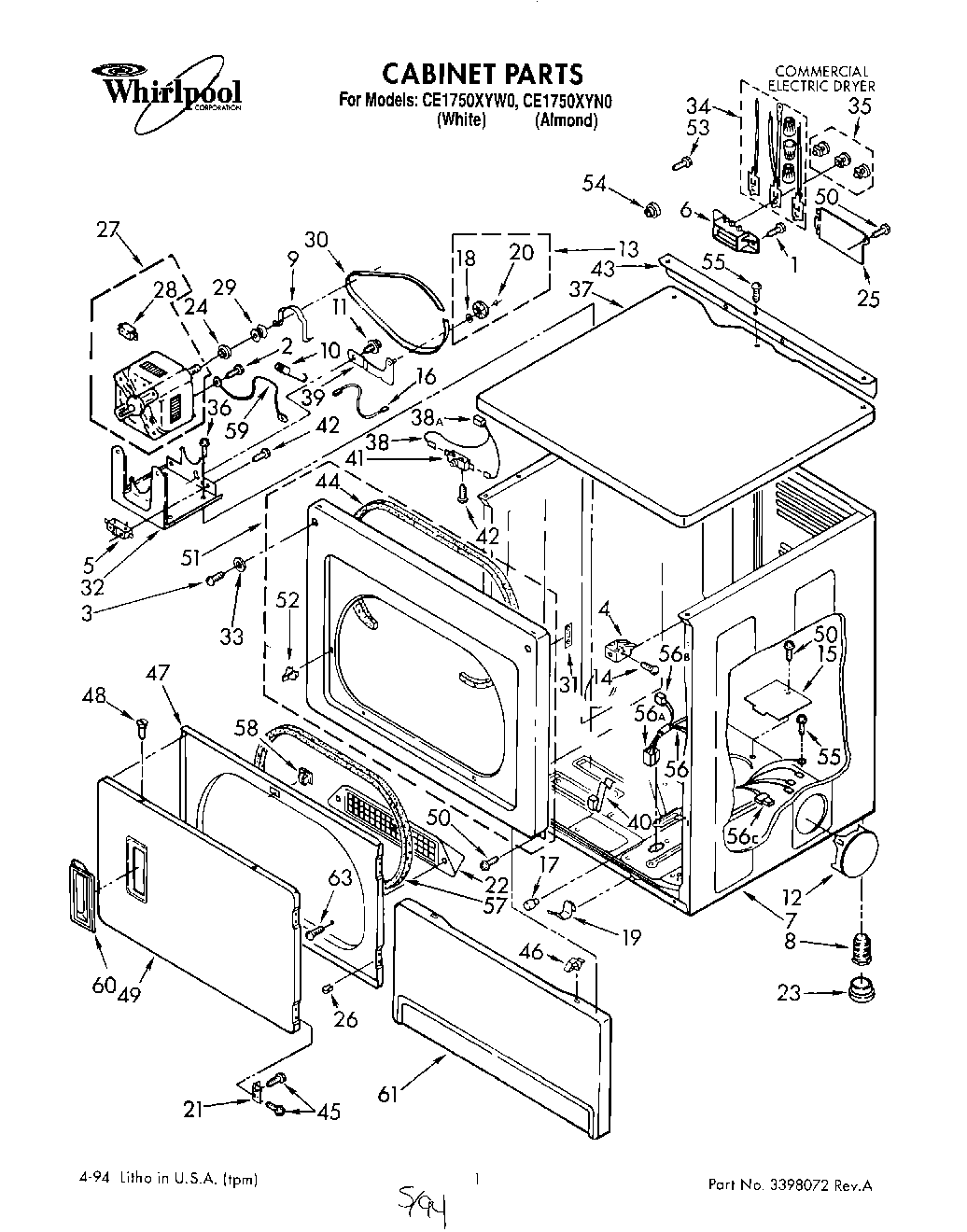

CE1750XYW0 01 – SECTION

CE1750XYW0 01 – SECTION

Written by

in

CE1750XYW0 01 – SECTION

Products

PositionProduct
1WP308685 Whirlpool Microwave Screw
2WPW10139210 Whirlpool Screw
3WP3373329 Whirlpool Dishwasher Screw
43391846 Whirlpool Clip
6279320 Whirlpool Dryer Rear Terminal Block Kit
7Cabinet, Lower (White)
7Cabinet, Lower (Almond)
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12W10470674 Whirlpool Dryer Side Vent Exhaust Kit
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14681615 Whirlpool Screw
15WPW10354249 Whirlpool Cover
16Wire, Belt Switch
17693152 Whirlpool Bumper
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
22Grill
23WP3391943 Whirlpool Foot Boot
24WP3393657 Whirlpool Belt Retainer
25Cover, Terminal Block
26Nut, “U“ (4)
28279827 Whirlpool Dryer Drive Motor
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
34279318 Whirlpool Terminal
35279393 Whirlpool Terminal Block Screw and Nut Kit
36SCREW
37Top (White)
37Top (Almond)
38Harness, Door Switch
38aWP717253 Whirlpool Dishwasher Connector
39W10837240 Whirlpool Dryer Idler Pulley
40Clip, Lint Duct
41WP3391902 Whirlpool Lid Switch
42WP3395530 Whirlpool Screw
43Bracket, Angle
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47Door, Rear
48WP694091 Whirlpool Screw
49W11663440 Whirlpool Door
49Door, Front (Almond)
51Front Panel
51279723 Whirlpool Panel Assembly
53W10850756 Whirlpool Screw
54Bushing, Snap (2)
55WP488729 Whirlpool Refrigerator Door Screw
56WPL 3392875
56bReceptacle, Latching (2-Way) (Uses Terminal 94614)
56aPlug, Mult- Terminal (Uses Terminals 94613)
56cReceptacle, 3-Way Terminal (Use W/94614)
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
59WPL 3387376
603389522 Whirlpool Handle
60WPL 3389523
61WPL 697216
61WP3406797 Whirlpool Toe Panel
63Screw
