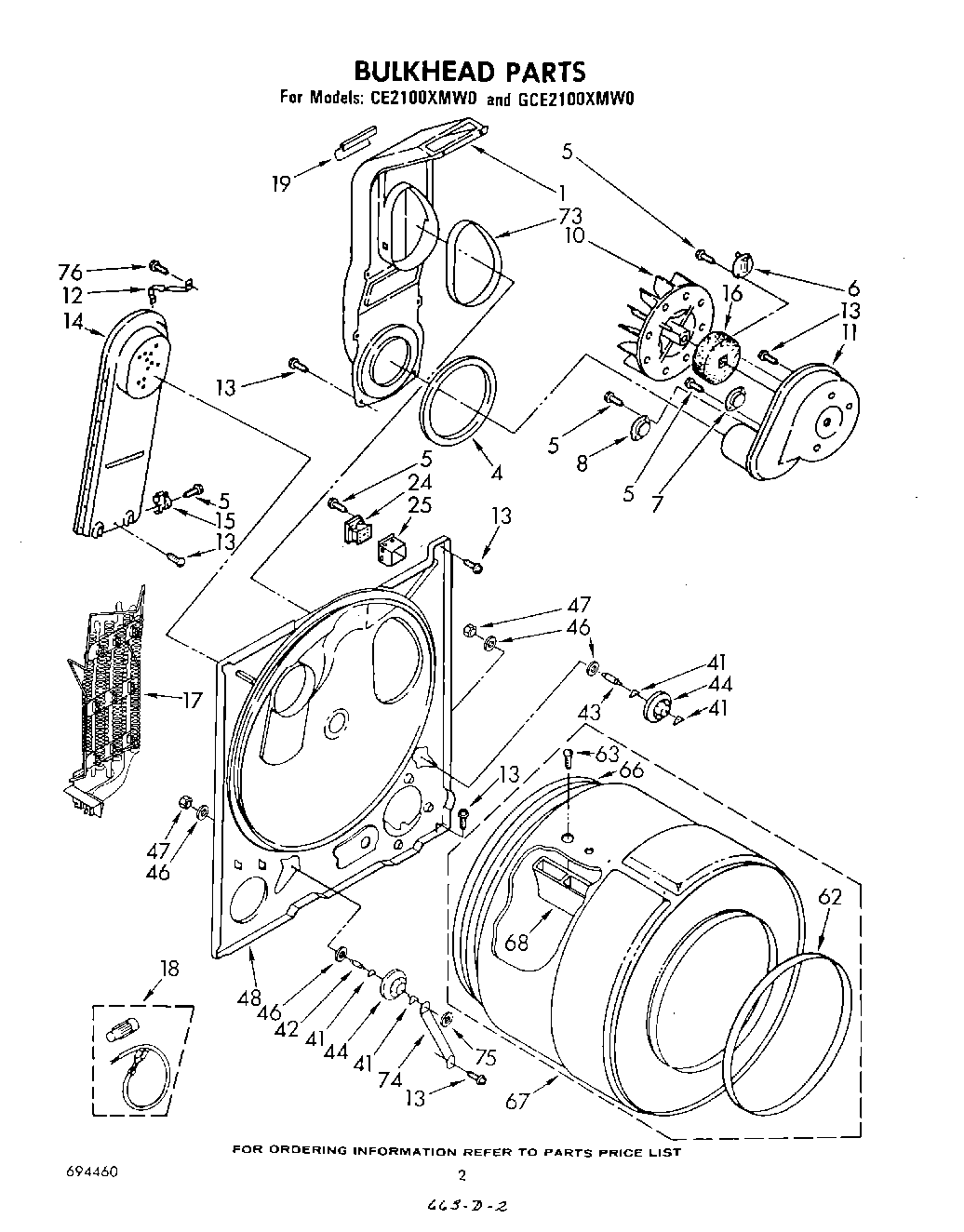

CE2100XMW0 02 – BULKHEAD , LITERATURE AND OPTIONAL

Products

PositionProduct
799344 Whirlpool Refrigerator Paint
1279505 Whirlpool Chute
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6WP3390719 Whirlpool Dryer Thermal Fuse
8WP694674 Whirlpool Cycling Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower (Export)
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15279052 Whirlpool Thermostat L250 3W
16Seal, Blower
17WP279462 Whirlpool Element
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
19686770 Whirlpool Support Bracket
24Relay, 60 Hz.
25Shield, Relay
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
62WP3394508 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
73SEAL
74Bracket, Support
75WP90296 Whirlpool Clip
76WPL 799351
76Instructions, Installation
76Instructions, Multi-Venting
76Leveler (Thinner)
76350930 Whirlpool White Spray Paint
76350938 Whirlpool Spray Gun
7672017 Whirlpool Appliance Touch-Up Paint White
76List, Service Parts
