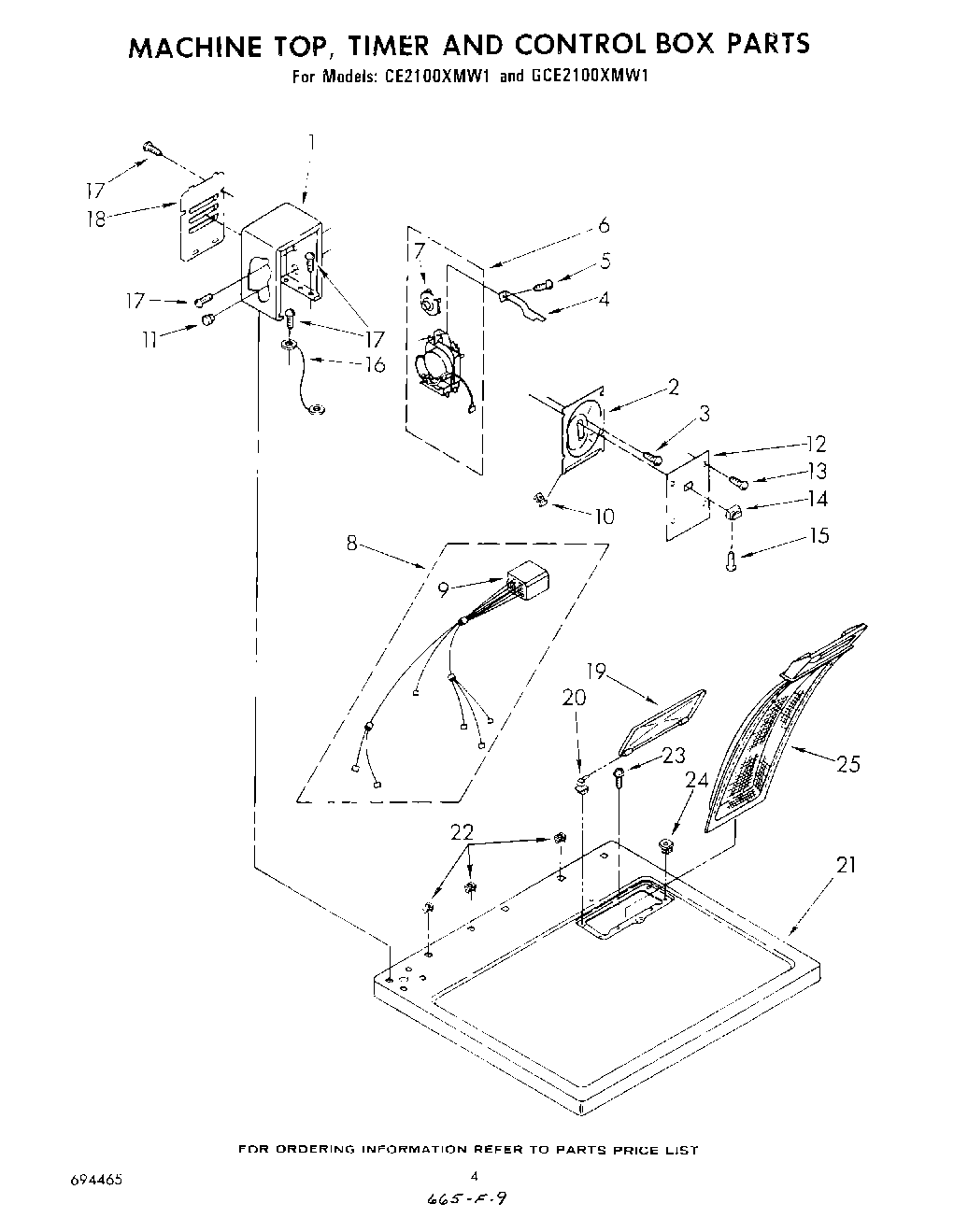

CE2100XMW1 03 – MACHINE TOP, TIMER AND CONTROL BOX

CE2100XMW1 03 – MACHINE TOP, TIMER AND CONTROL BOX

Written by

in

CE2100XMW1 03 – MACHINE TOP, TIMER AND CONTROL BOX

Products

PositionProduct
1Box, Control (White)
2Plate, Timer Mounting
3303776 Whirlpool Dishwasher Screw
4Lever, Timer
5Screw Mou
6279737 Whirlpool Dryer Load Timer
7WP339855 Whirlpool Cam
7WP343777 Whirlpool Cam
7WP339854 Whirlpool Cam
8Harness, Timer
9Plug, Terminal (6 Way)
10W10113937 Whirlpool Clamp
11Bushing, Snap
12Cover, Control Box
13WP965173 Whirlpool Dishwasher Screw
14Button, Timer Set
15Screw
16Wire, Ground
17SCREW
18Panel, Control Box Rear
19Cover, Lint Screen (White)
20WPW10044480 Whirlpool Hinge Assembly
20WPW10044470 Whirlpool Hinge Assembly
21Top (White)
22Nut, Push-In (2)
23W11693756 Whirlpool Screw Assembly
2498460 Whirlpool Nut
25339392V Whirlpool Dryer Lint Filter Screen
