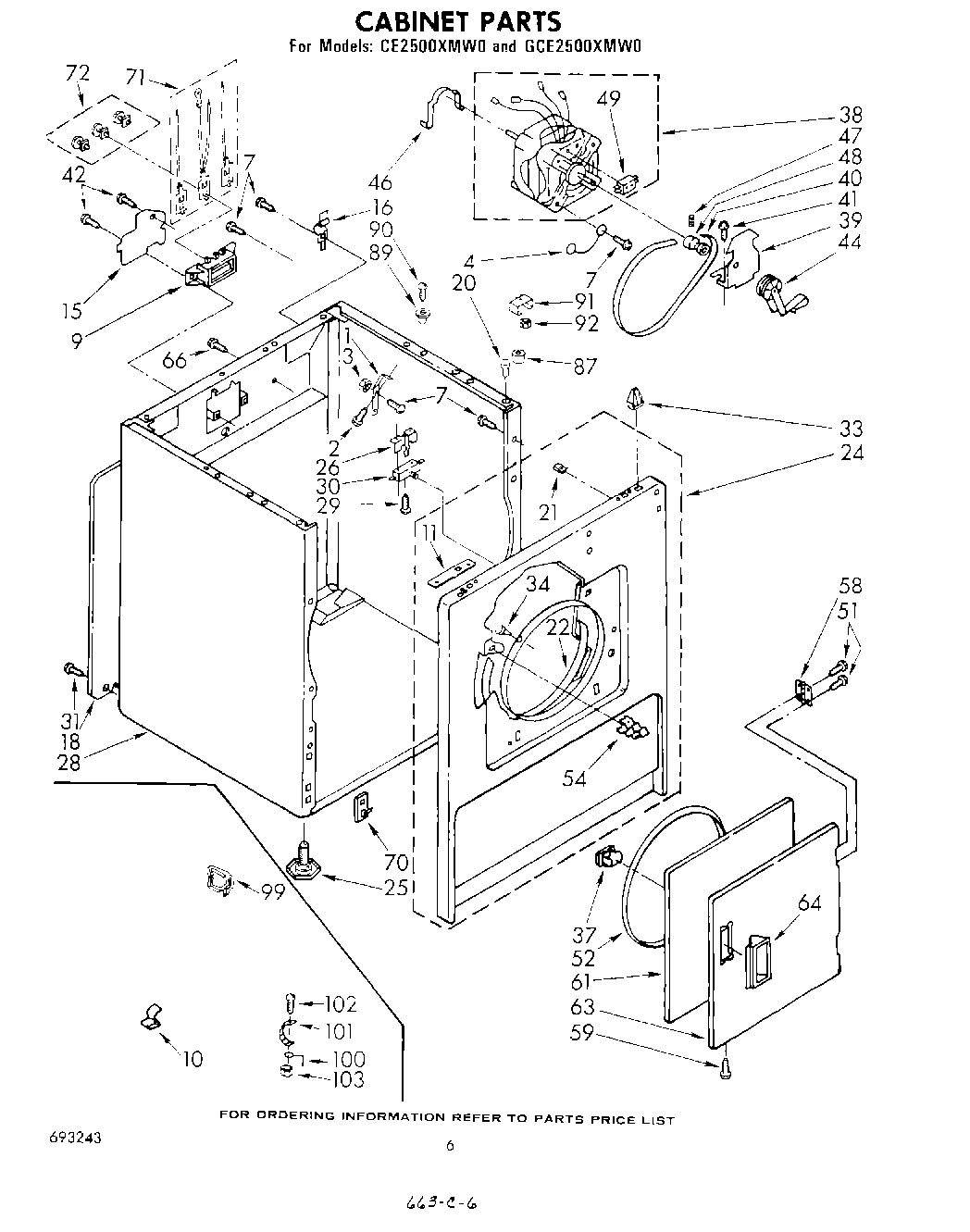

CE2500XMW0 04 – CABINET

Products

PositionProduct
1Bracket, Top Lock
2BOLT, 5/16-18 X 2 3/4
4Wire, Ground (Motor)
7SCREW
9279320 Whirlpool Dryer Rear Terminal Block Kit
108528351 Whirlpool Clip
11Bracket
15W11736322 Whirlpool Cover Assembly
16WP8066217 Whirlpool Hinge
18Panel, Rear
20Locator, Top
21WP98234 Whirlpool Nut
22279264 Whirlpool Bearing and Seal Kit
24Front Panel Assembly (New Avocado)
24Front Panel Assembly (Almond)
24Front Panel Assembly (White)
24Front Panel Assembly (Golden Harvest)
2549621 Whirlpool Leveling Feet
26WP691581 Whirlpool Actuator
28Cabinet (White)
28Cabinet (New Avocado)
28Cabinet (Golden Harvest)
28Cabinet (Almond)
29WP98129 Whirlpool Screw
30W10820036 Whirlpool Door Switch Kit
31WP489069 Whirlpool Compactor Screw
33WP18776 Whirlpool Lock
34279220 Whirlpool Clip
37279570 Whirlpool Dryer Door Latch Kit
39WP348780 Whirlpool Base
40341241 Whirlpool Dryer Drum Belt
413400500 Whirlpool Screw
44WP691366 Whirlpool Dryer Idler Pulley Assembly
46WP660658 Whirlpool Clamp
47SCREW, SET
48W11233559 Whirlpool Motor Pulley
49279827 Whirlpool Dryer Drive Motor
51Screw
52W11613302 Whirlpool Door Seal
58WP348023 Whirlpool Hinge
59WP694091 Whirlpool Screw
61280077 Whirlpool Door
63WPL 689318
63WP348205 Whirlpool Door
63WPL 689319
63Door, Front (Almond)
64Handle, Door (Golden Harvest)
64WPL 689583
64Handle, Door (Almond)
64WP686711 Whirlpool Door Handle
70W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
71279318 Whirlpool Terminal
72279393 Whirlpool Terminal Block Screw and Nut Kit
87WPL 356674
89Locator, Top
90WPL 427190
91WP487939 Whirlpool Refrigerator Nut
9290984 Whirlpool Nut
99Clip, Harness (Rear Bulkhead Area)
100WPL 685449
101Strap, Ground
102Screw, Ground (10-24 x 1)
103W10080180 Whirlpool Nut
