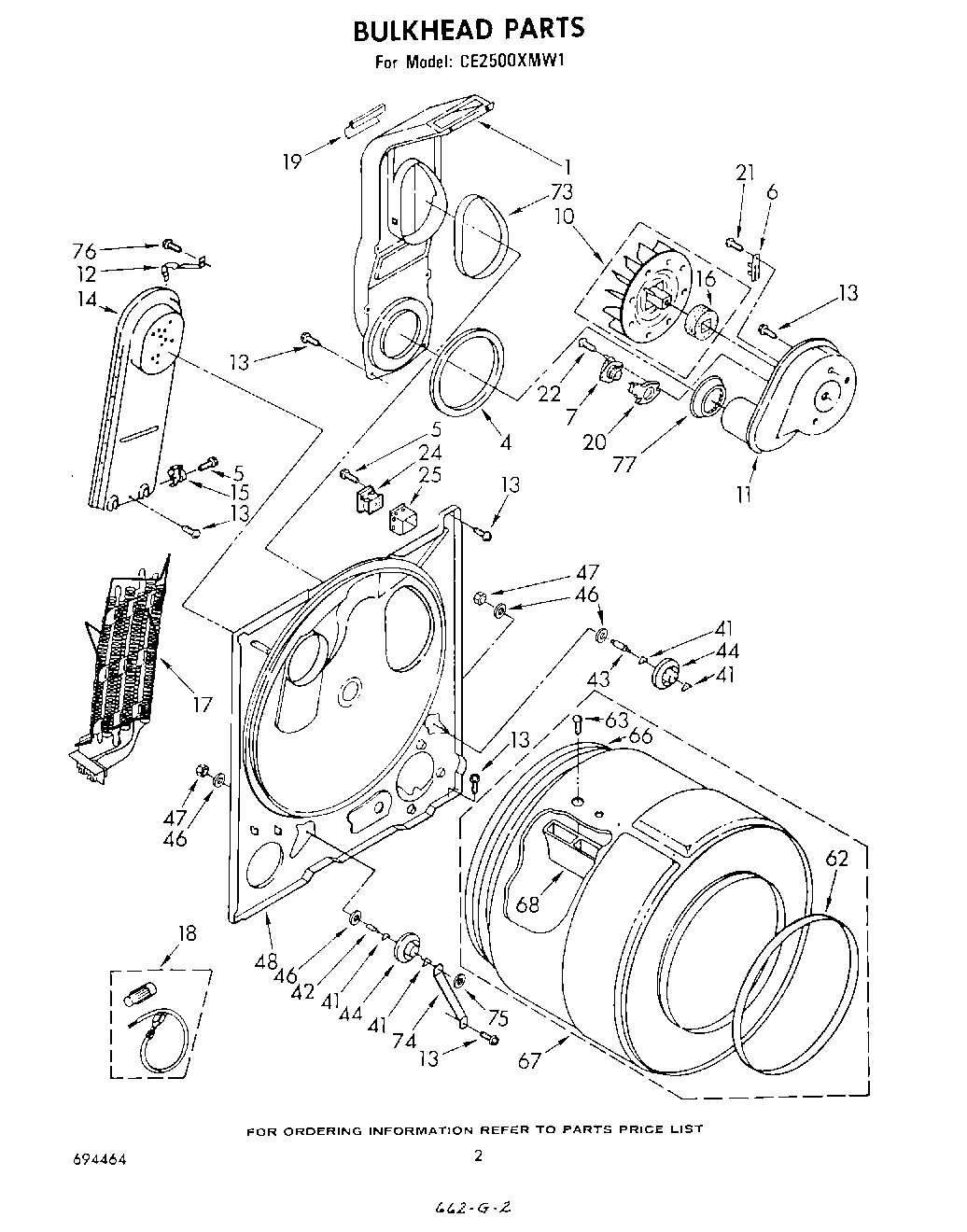

CE2500XMW1 02 – BULKHEAD, LITERATURE AND OPTIONAL

CE2500XMW1 02 – BULKHEAD, LITERATURE AND OPTIONAL

Written by

in

CE2500XMW1 02 – BULKHEAD, LITERATURE AND OPTIONAL

Products

PositionProduct
1279505 Whirlpool Chute
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7WP694674 Whirlpool Cycling Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15279052 Whirlpool Thermostat L250 3W
16Seal, Blower
17WP279462 Whirlpool Element
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
19686770 Whirlpool Support Bracket
20Thermostat, Heater
21WP965173 Whirlpool Dishwasher Screw
22WP488729 Whirlpool Refrigerator Door Screw
24Relay, 60 Hz.
25Shield, Relay
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
62WP3394508 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
73SEAL
74Bracket, Support
75WP90296 Whirlpool Clip
77350956 Whirlpool Spray Assembly
77Leveler (Thinner)
77Instructions, Multi-Venting
77Instructions, Installation
77W11233063 Whirlpool Shield Assembly
77350938 Whirlpool Spray Gun
77WPL 692257
77350930 Whirlpool White Spray Paint
7772017 Whirlpool Appliance Touch-Up Paint White
77799344 Whirlpool Refrigerator Paint
77WP72107 Whirlpool Touchup
77Almond (Uncut)
7772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
77Golden Harvest
77Golden Harvest (Uncut)
77Enamel, New Avocado (1 Qt. Uncut)
77Paint, Spray 13 Oz. (Avocado)
7772109 Whirlpool Dacor Avocado Touch-Up Paint
77List, Service Parts
