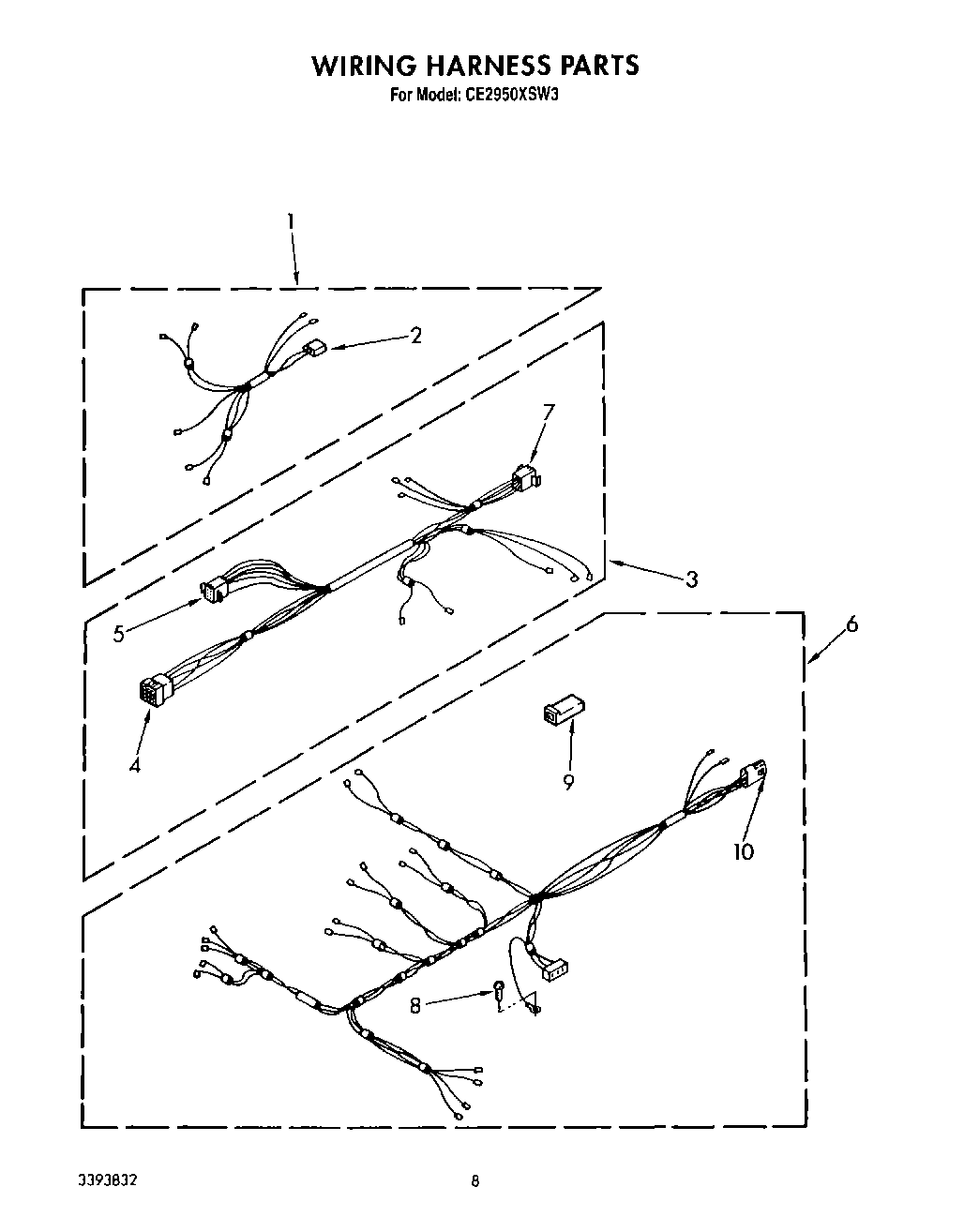

CE2950XSN3 05 – WIRING HARNESS

Products

Position	Product
1	Harness, Timer
2	Receptacle, Latching (2-Way) (Uses Terminal 94614)
3	+Harness, Wiring (Upper)
4	Plug
5	WP717253 Whirlpool Dishwasher Connector
6	+Harness, Wiring (Lower)
7	Plug, Terminal (6 Way)
8	W10850756 Whirlpool Screw
9	Connector, Receptacle
10	WPL 717315
