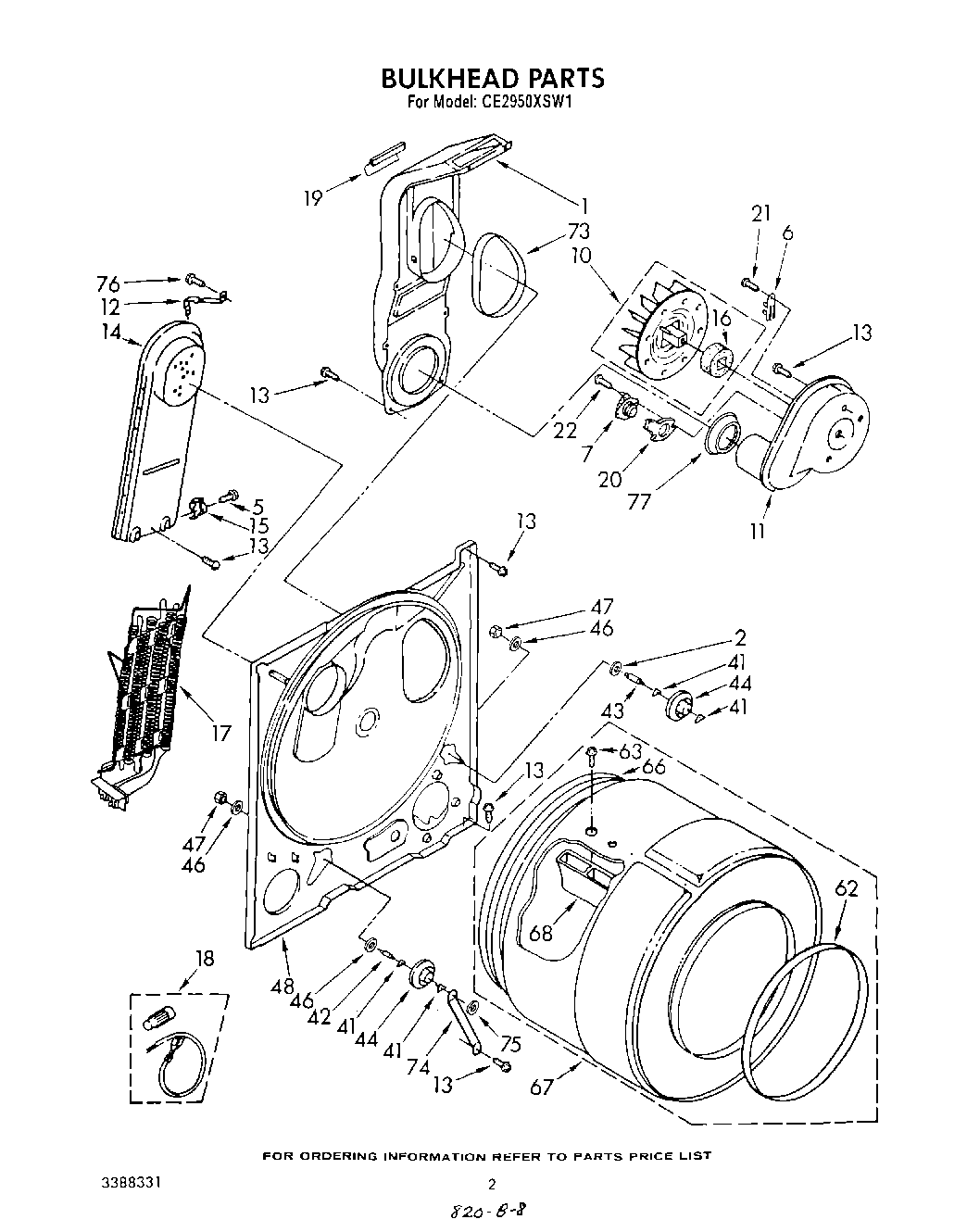

CE2950XSW1 02 – BULKHEAD, LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT687457
Golden Harvest
Golden Harvest (Uncut)
WPL LIT692257
72109 Whirlpool Dacor Avocado Touch-Up Paint
Paint, Spray 13 Oz. (Avocado)
Enamel, New Avocado (1 Qt. Uncut)
WPL LIT3388331
WPL LIT348772
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Leveler (Thinner)
350930 Whirlpool White Spray Paint
WP72107 Whirlpool Touchup
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
1279505 Whirlpool Chute
2WP3388703 Whirlpool Washer
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7WP694674 Whirlpool Cycling Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15WP3390291 Whirlpool High Limit Thermostat
16Seal, Blower
17WP279462 Whirlpool Element
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
19686770 Whirlpool Support Bracket
20Heater, Thermostat
21WP965173 Whirlpool Dishwasher Screw
22WP488729 Whirlpool Refrigerator Door Screw
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
62WP3394508 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
673396775 Whirlpool Drum Assembly
68WP342847 Whirlpool Drum Baffle
73SEAL
74Bracket, Support
75WP90296 Whirlpool Clip
77W11233063 Whirlpool Shield Assembly
