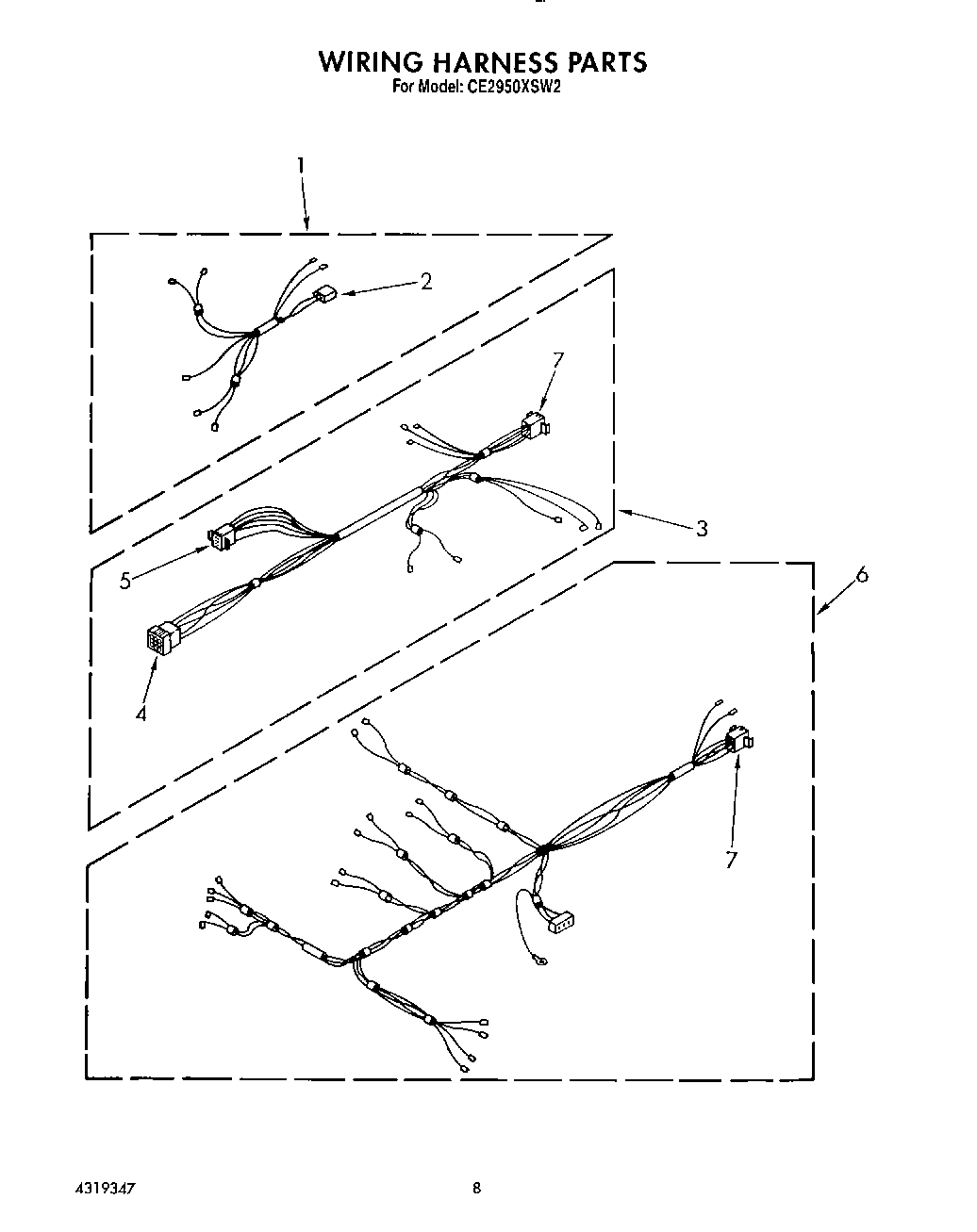

CE2950XSW2 05 – WIRING HARNESS

Written by

Products

Position	Product
1	Harness, Timer
2	Receptacle, Latching (2-Way) (Uses Terminal 94614)
3	Harness, Wiring (Upper)
4	Cap, Terminal (6-Way) (Uses Terminal 94614)
5	WP717253 Whirlpool Dishwasher Connector
6	+Harness, Wiring (Lower)
7	Plug, Terminal (6 Way)
