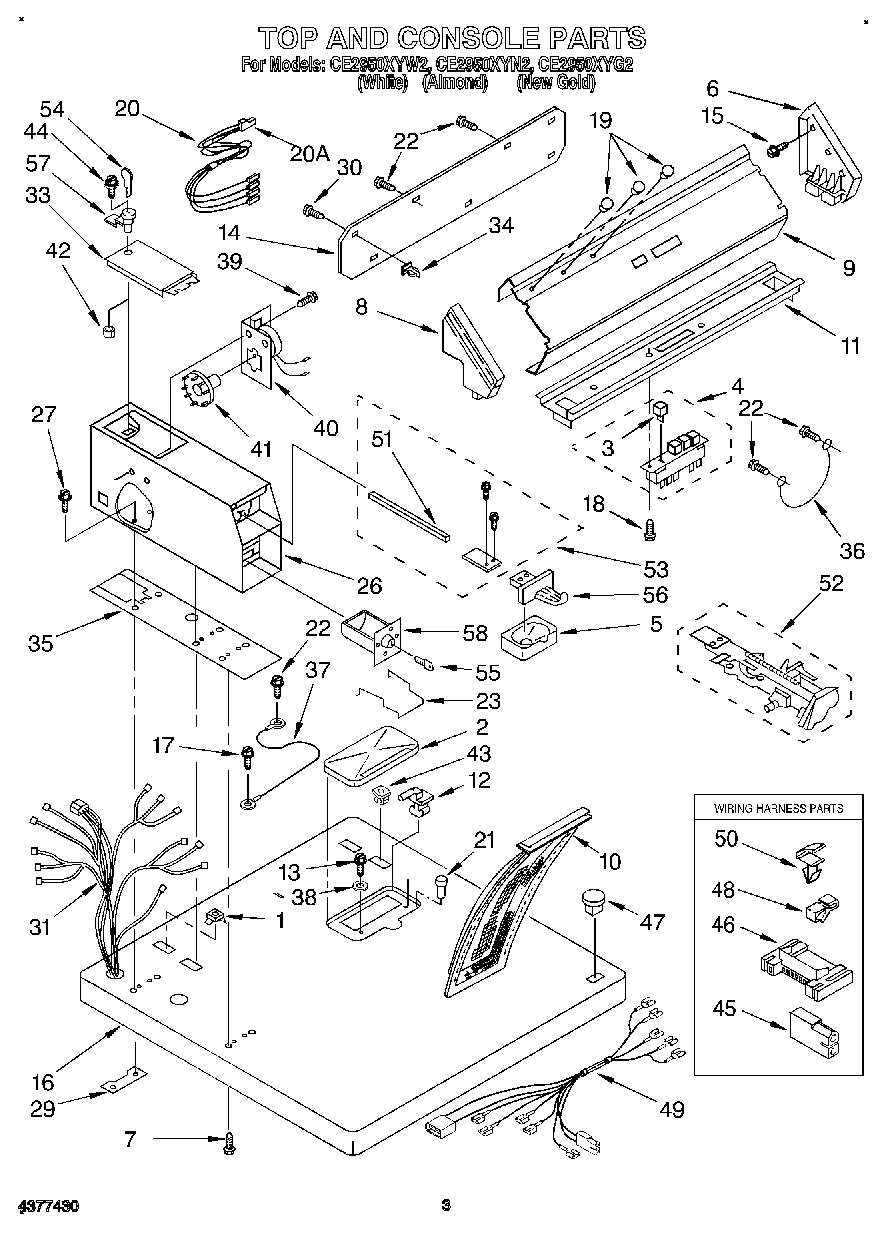

CE2950XYN2 02 – SECTION

Products

PositionProduct
1Stop, Push-In Top
2Cover, Lint Screen
3Button (4)
4Switch, Pushbutton
5WP385421 Whirlpool Coin Operated Laundry Funnel
6WPL 63795
7W10841059 Whirlpool Screw
8End Cap (L.H.)
9Panel, Control
10339392V Whirlpool Dryer Lint Filter Screen
11Bracket, Control
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Panel, Rear
15WPW10109200 Whirlpool Screw
16Top (White)
16Top (Almond)
16Top (New Gold)
17WP90767 Whirlpool Screw
18WP965173 Whirlpool Dishwasher Screw
19WP3348109 Whirlpool Light Lens
20Lights, Indicator (240 Volts)
20APlug
21Bumper, Lint Lid
22SCREW
23Guide, Drawer
26Case, Meter (White)
26Case, Meter (New Gold)
26Case, Meter (Almond)
27W11715721 Whirlpool Screw Assembly
293347825 Whirlpool Plate
30WPL 64211
31Harness, Wiring
33W11283272 Whirlpool Washer Dryer Meter Case Access Door
33Door, Service (New Gold)
33Door, Service (For Almond Model)
34WP689559 Whirlpool Nut
35WP3954812 Whirlpool Cushion
36Wire, Ground
37Wire, Ground
38Washer
39339805 Whirlpool Screw
40279737 Whirlpool Dryer Load Timer
41WP343777 Whirlpool Cam
41WP3387974 Whirlpool Cam
42WP90406 Whirlpool Nut
43Nut, Push-In (2)
44Screw & Washer
45Receptacle, Latching (2-Way) (Uses Terminal 94614)
463395683 Whirlpool Connector
47WP387371 Whirlpool Plug
48Clip, Retainer
493401682 Whirlpool Wire Harness
50WP3394427 Whirlpool Clip
