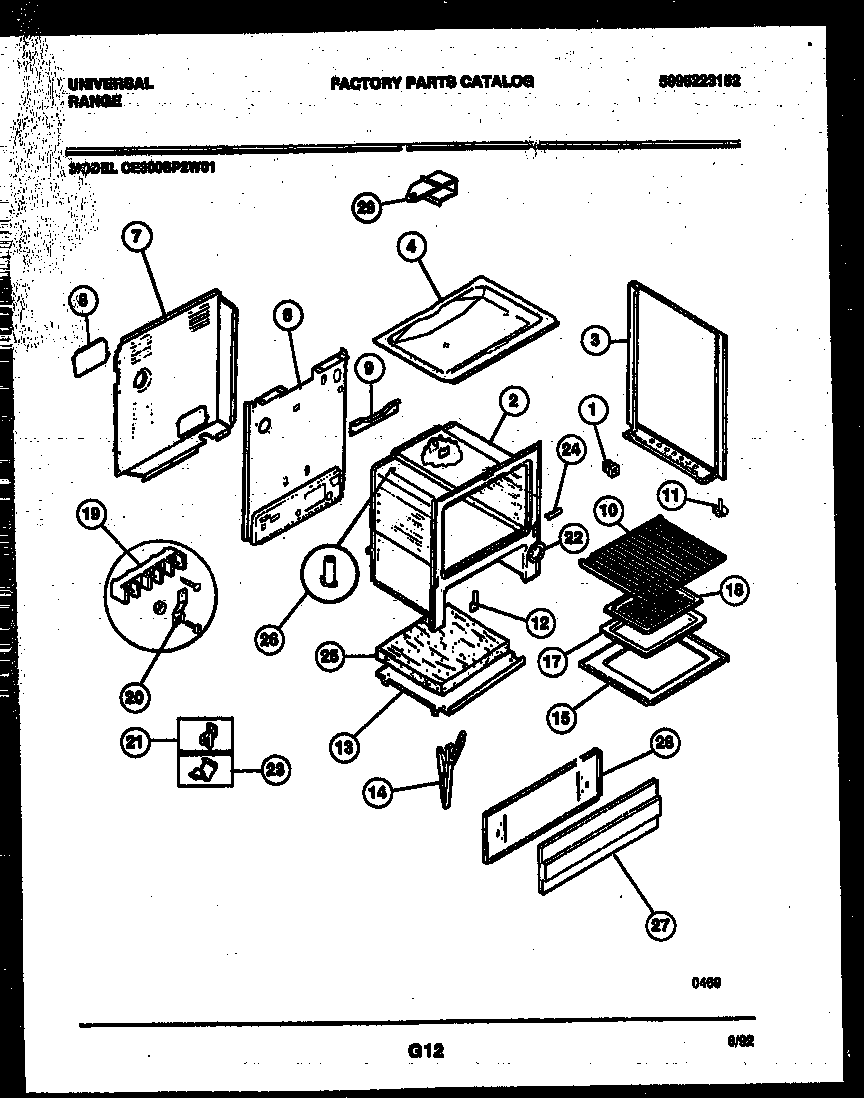

CE300SP2D1 05 – BODY PARTS

Products

Position	Product
*72939	WCI 19100210058
*72939	3203550 Frigidaire Oven Plug
*72939	WCI 5303206618
*72938	WCI 3051387
1	SPACER-BODYSIDE, (8)
3	WCI 5303269545
3	WCI 5303269543
4	WCI 5303271756
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	Hinge,oven door ,(2)
15	PANEL-OVEN BOTTOM
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051218 Frigidaire Oven Plate
23	WCI 3051367
24	COVER-OVEN FRONT
25	316403803 Frigidaire Insulation
26A	INSULATION, OVEN WRAPPER
26B	INSUL – OVEN BACK (NON-ILLUSTRATED)
26C	5303300265 Frigidaire Oven Screw
26	WCI 5303283907
26D	316205500 Frigidaire Oven Nut
27	PNL – DRAWER (ALMD)
28A	ANTI-TIP KIT (NOT ILLUSTRATED)
28	SHIELD-PNL
29	WCI 3203582
