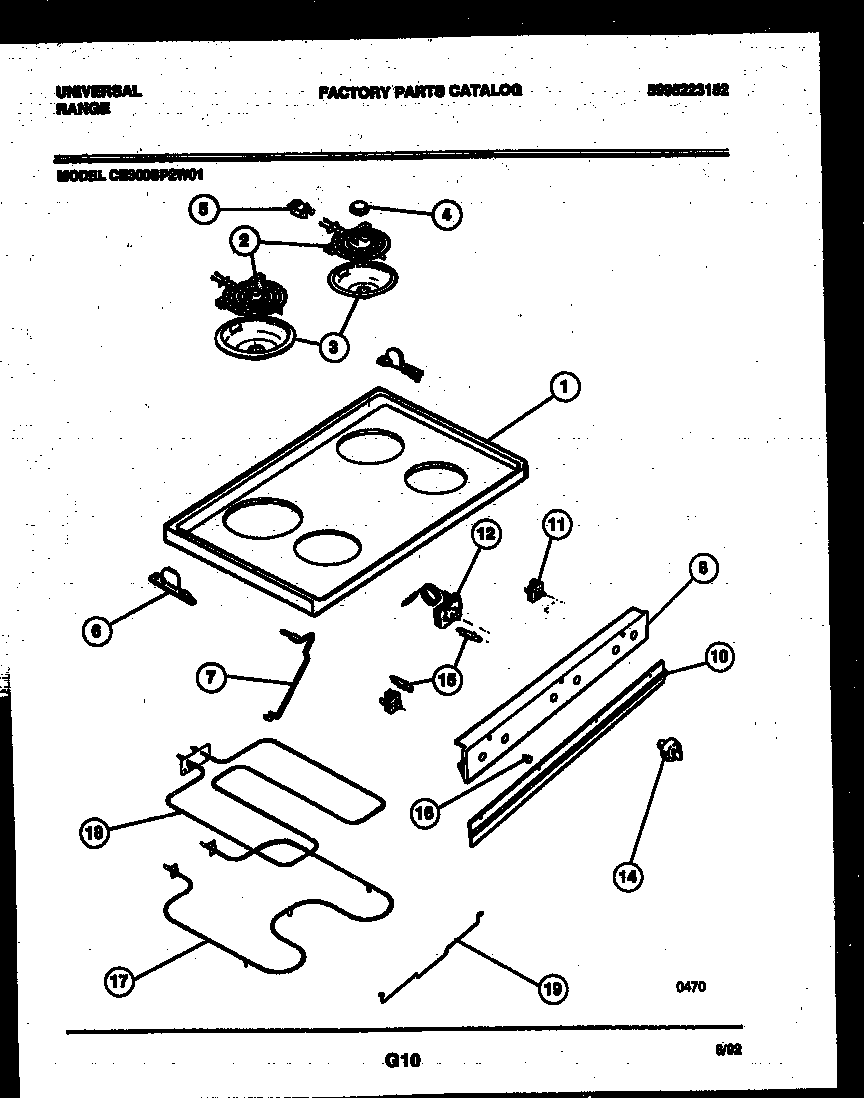

CE300SP2W1 04 – COOKTOP AND BROILER PARTS

CE300SP2W1 04 – COOKTOP AND BROILER PARTS

Written by

in

CE300SP2W1 04 – COOKTOP AND BROILER PARTS

Products

PositionProduct
1WCI 3051379
2318372210 Frigidaire Oven Range 6" 1250W Surface Element
2316442300 Frigidaire Oven 2100W Coil Element 8
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4MEDALLION, STAINLESS STEEL, SURF ELEM
55303935058 Frigidaire Oven Burner Receptacle Kit
6BRACKET-HINGE,MAIN TOP LH
6BRACKET-HINGE,MAIN TOP RH
7ROD-MAIN SUPPORT (2)
8WCI 316009221
10WCI 3204623
115303935086 Frigidaire Oven Top Burner Switch Kit
12WCI 5303210266
14WCI 5303288320
14KNOB-THERMOS
15WCI 5303210270
16JEWEL-IND
17316075103 Frigidaire Oven Bake Element
185303051140 Frigidaire Broil Element
19316203400 Frigidaire Oven Support
