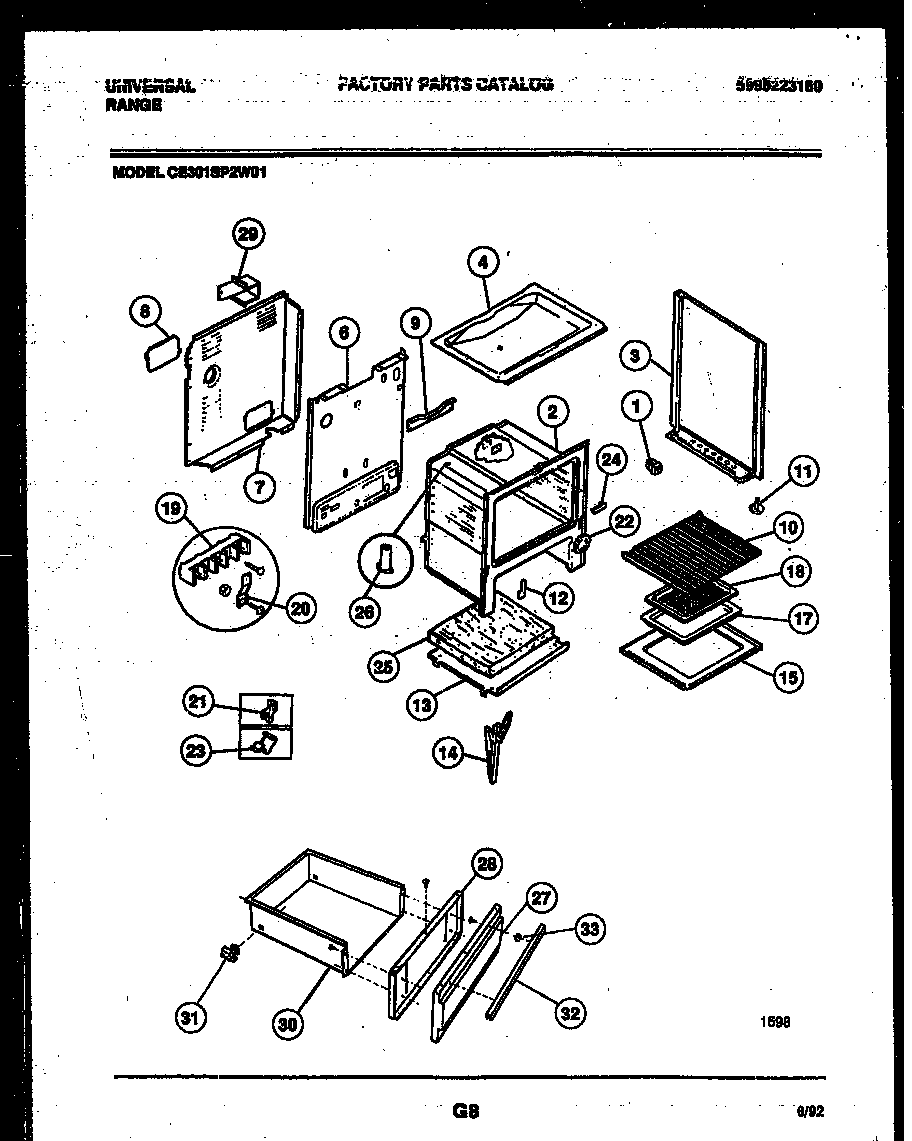

CE301SP2D1 02 – BODY PARTSadmin2025-04-26T08:46:44+00:00CE301SP2D1 02 – BODY PARTS
Products
| Position | Product |
|---|
| *73828 | 3131903 Frigidaire Door/Drawer Bumper |
| *73828 | 5303300265 Frigidaire Oven Screw |
| *73828 | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 1 | SPACER-BODYSIDE, (8) |
| 3 | WCI 5303269545 |
| 3A | WCI 5303269543 |
| 4 | WCI 5303271756 |
| 6 | WCI 3203082 |
| 7 | SHIELD-REAR WALL, LOWER |
| 8 | COVER-ACCESS |
| 9 | COVER-FLUE |
| 10 | 316067902 Frigidaire Oven Rack |
| 11 | SCREW-LEVELING |
| 12 | WCI 3131570 |
| 13 | SHIELD, OVEN BOTTOM |
| 14 | Hinge,oven door ,(2) |
| 15 | PANEL-OVEN BOTTOM |
| 17 | PAN-BROILER |
| 18 | WCI 5303131356 |
| 19 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 20 | PLATE-GROUND STRAP |
| 21 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 22 | 3051218 Frigidaire Oven Plate |
| 23 | WCI 3051367 |
| 24 | COVER-OVEN FRONT |
| 25 | 316403803 Frigidaire Insulation |
| 26A | INSULATION, OVEN WRAPPER |
| 26B | INSUL - OVEN BACK (NON-ILLUSTRATED) |
| 26 | WCI 5303283907 |
| 26D | 316205500 Frigidaire Oven Nut |
| 27 | PANEL - BROILER ALMD |
| 28 | SHIELD-PNL |
| 28A | WCI 3051387 |
| 29B | 3203550 Frigidaire Oven Plug |
| 29 | WCI 3203582 |
| 29C | 3051162 Frigidaire Oven Range Front Broiler Drawer Glide |
| 29A | WCI 5303206618 |
| 30 | WCI 3051133 |
| 31 | 3051163 Frigidaire Oven Range Rear Broiler Drawer Glide |
| 32 | HANDLE-DRAWER, BRUSHED CHROME |
| 33 | FSTNR, SPACER (2) |
