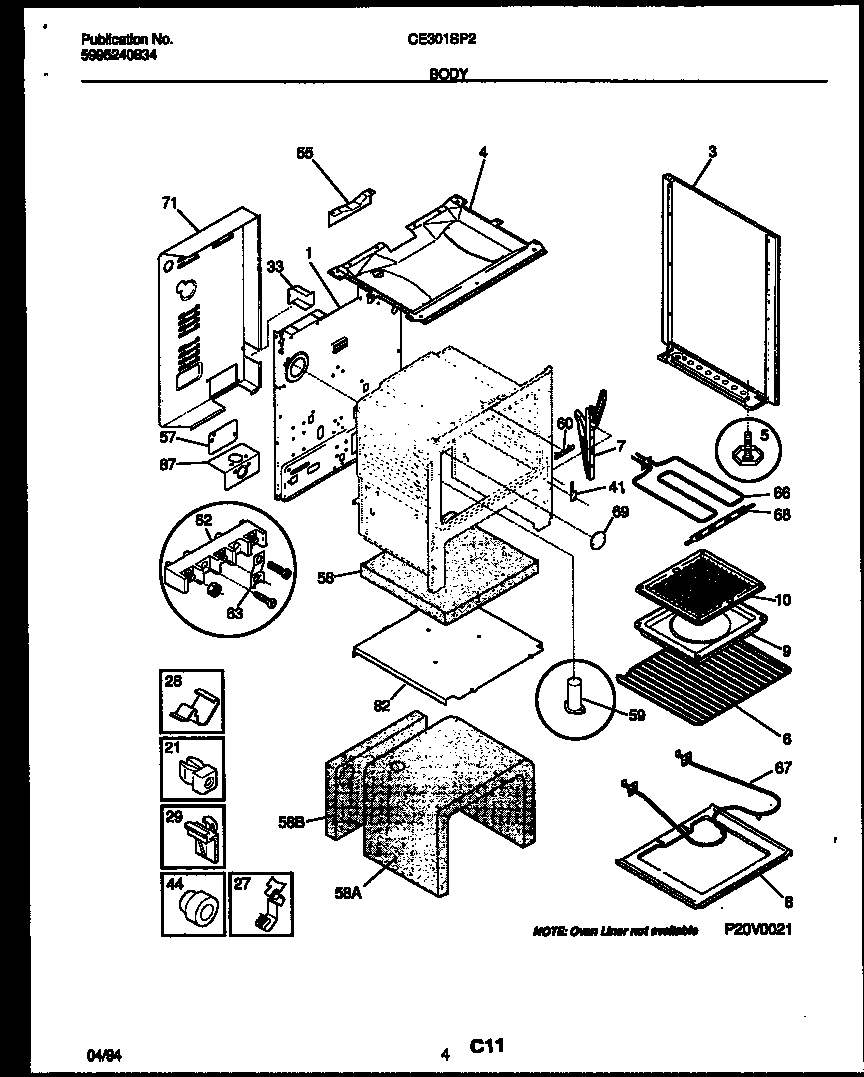

CE301SP2D2 03 – BODY PARTS

Products

Position	Product
*97880	WCI 3051387
*97880	3203550 Frigidaire Oven Plug
*97880	WCI 08067961
*97880	316205500 Frigidaire Oven Nut
1	WCI 3203082
3	PNL-B/S-RH-WHITE
3A	PNL-B/S-LH-WHITE
4	WCI 5303271756
5	SCREW-LEVELING
5B	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5A	ANTI-TIP KIT (NOT ILLUSTRATED)
6	316067902 Frigidaire Oven Rack
7	Hinge,oven door ,(2)
8	PANEL-OVEN BOTTOM
9	PAN-BROILER
10	WCI 5303131356
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
28	WCI 3051367
29	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
33	WCI 3203582
41	WCI 3131570
44	3131903 Frigidaire Door/Drawer Bumper
55	COVER-FLUE
57	COVER-ACCESS
58A	INSULATION, OVEN WRAPPER
58	316403803 Frigidaire Insulation
58B	INSUL - OVEN BACK (NON-ILLUSTRATED)
59	WCI 5303283907
60	COVER-OVEN FRONT
62	5304409888 Frigidaire Oven Terminal Block with Hardware
63	PLATE-GROUND STRAP
66	5303051140 Frigidaire Broil Element
67	316075103 Frigidaire Oven Bake Element
68	316203400 Frigidaire Oven Support
69	3051218 Frigidaire Oven Plate
71	SHIELD-REAR WALL, LOWER
82	SHIELD, OVEN BOTTOM
87	WCI 5303206618
