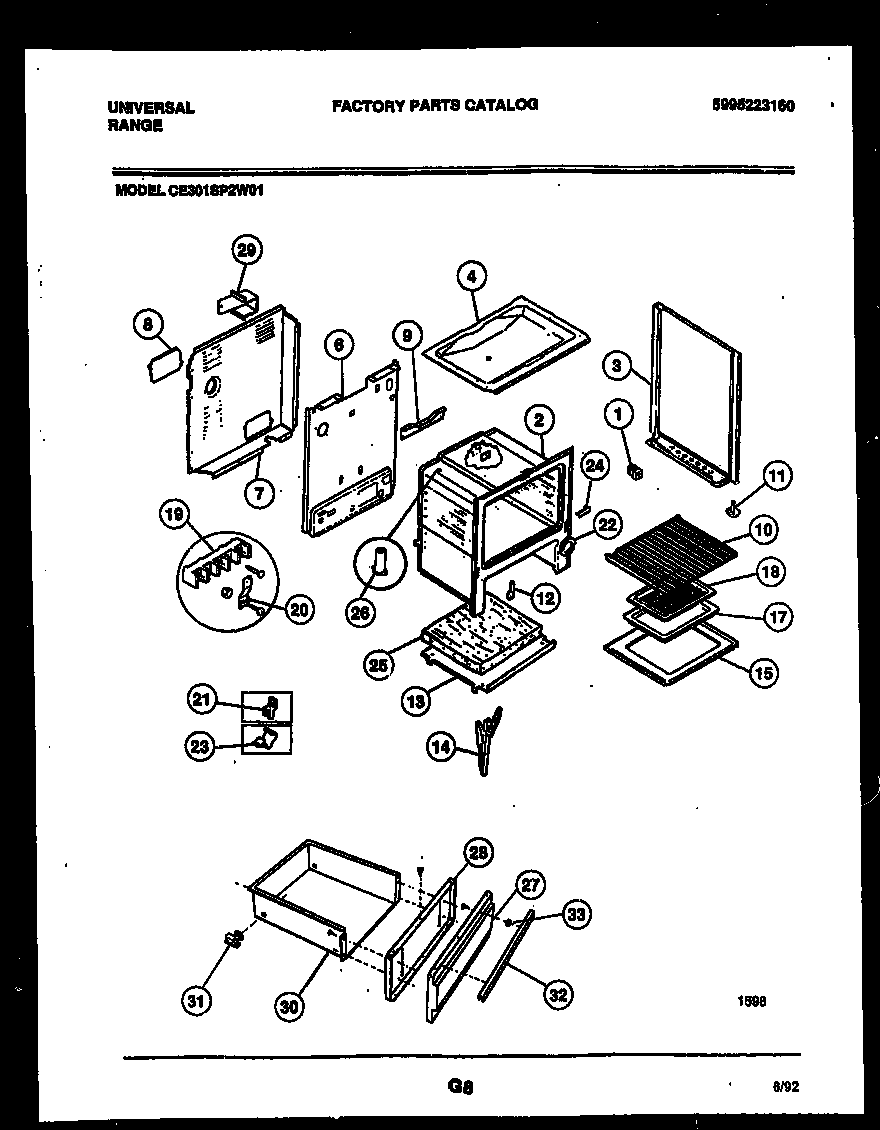

CE301SP2L01 02 – BODY PARTS

Products

Position	Product
*64889	5303300265 Frigidaire Oven Screw
*64889	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*64889	3131903 Frigidaire Door/Drawer Bumper
1	SPACER-BODYSIDE, (8)
3	PNL-B/S LH-WHEAT
3	WCI 5303269545
3	PNL-B/S-LH-WHITE
3	PNL-B/S-RH-WHITE
3	WCI 5303269543
3	PNL-B/S RH-WHEAT
4	WCI 5303271756
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	Hinge,oven door ,(2)
15	PANEL-OVEN BOTTOM
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051218 Frigidaire Oven Plate
23	WCI 3051367
24	COVER-OVEN FRONT
25	316403803 Frigidaire Insulation
26	316205500 Frigidaire Oven Nut
26	INSUL - OVEN BACK (NON-ILLUSTRATED)
26	WCI 5303283907
26	INSULATION, OVEN WRAPPER
27	PNL-DRAWER (WHTE)
27	PNL DRAWER WHEAT
27	PANEL - BROILER ALMD
28	WCI 3051387
28	SHIELD-PNL
29	WCI 5303206618
29	WCI 3203582
29	3203550 Frigidaire Oven Plug
29	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
30	WCI 3051133
31	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
32	HANDLE-DRAWER, BRUSHED CHROME
33	FSTNR, SPACER (2)
