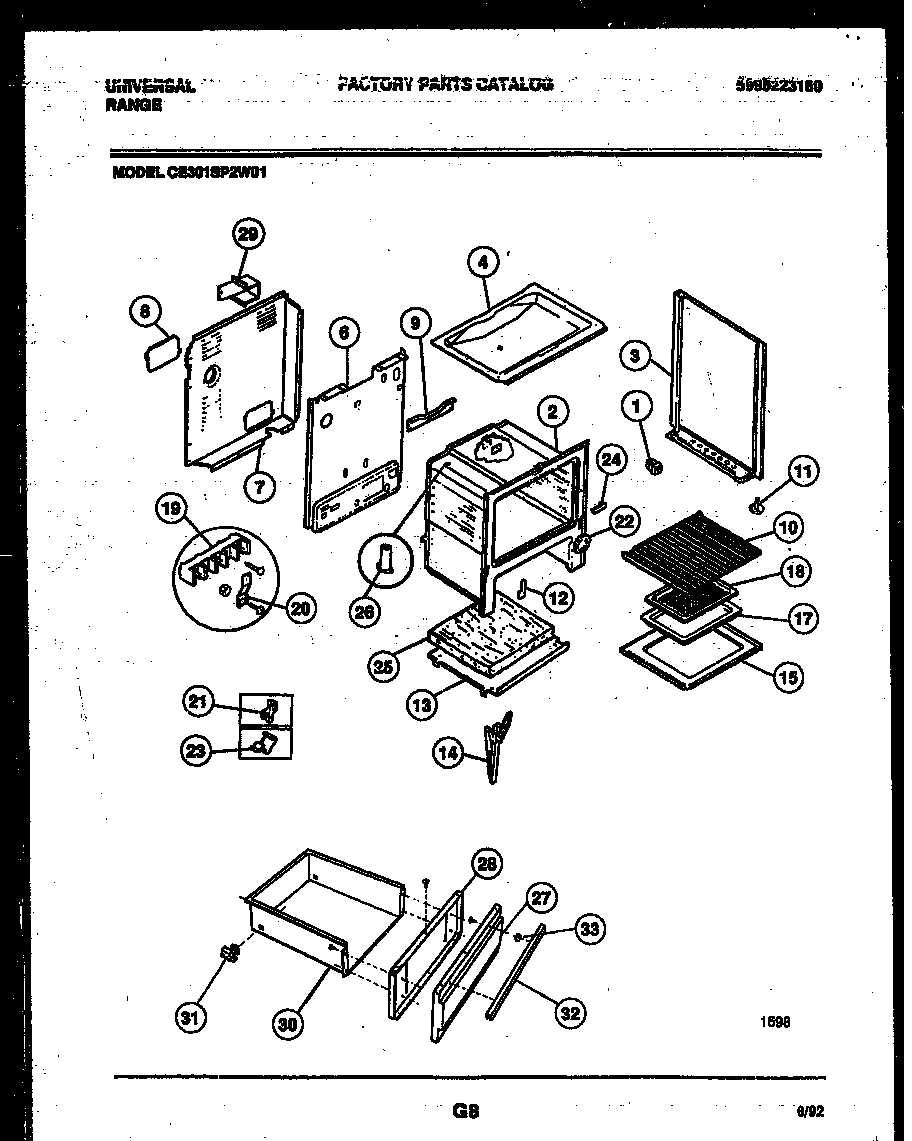

CE301SP2Y1 02 – BODY PARTS

CE301SP2Y1 02 – BODY PARTS

Written by

in

CE301SP2Y1 02 – BODY PARTS

Products

PositionProduct
*738285303300265 Frigidaire Oven Screw
*73828SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*738283131903 Frigidaire Door/Drawer Bumper
1SPACER-BODYSIDE, (8)
3PNL-B/S LH-WHEAT
3APNL-B/S RH-WHEAT
4WCI 5303271756
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14Hinge,oven door ,(2)
15PANEL-OVEN BOTTOM
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215303284616 Frigidaire Range Bulb Clip Thermostat
223051218 Frigidaire Oven Plate
23WCI 3051367
24COVER-OVEN FRONT
25316403803 Frigidaire Insulation
26BINSUL – OVEN BACK (NON-ILLUSTRATED)
26WCI 5303283907
26D316205500 Frigidaire Oven Nut
26AINSULATION, OVEN WRAPPER
27PNL DRAWER WHEAT
28SHIELD-PNL
28AWCI 3051387
29WCI 3203582
29B3203550 Frigidaire Oven Plug
29AWCI 5303206618
29C3051162 Frigidaire Oven Range Front Broiler Drawer Glide
30WCI 3051133
313051163 Frigidaire Oven Range Rear Broiler Drawer Glide
32HANDLE-DRAWER, BRUSHED CHROME
33FSTNR, SPACER (2)
