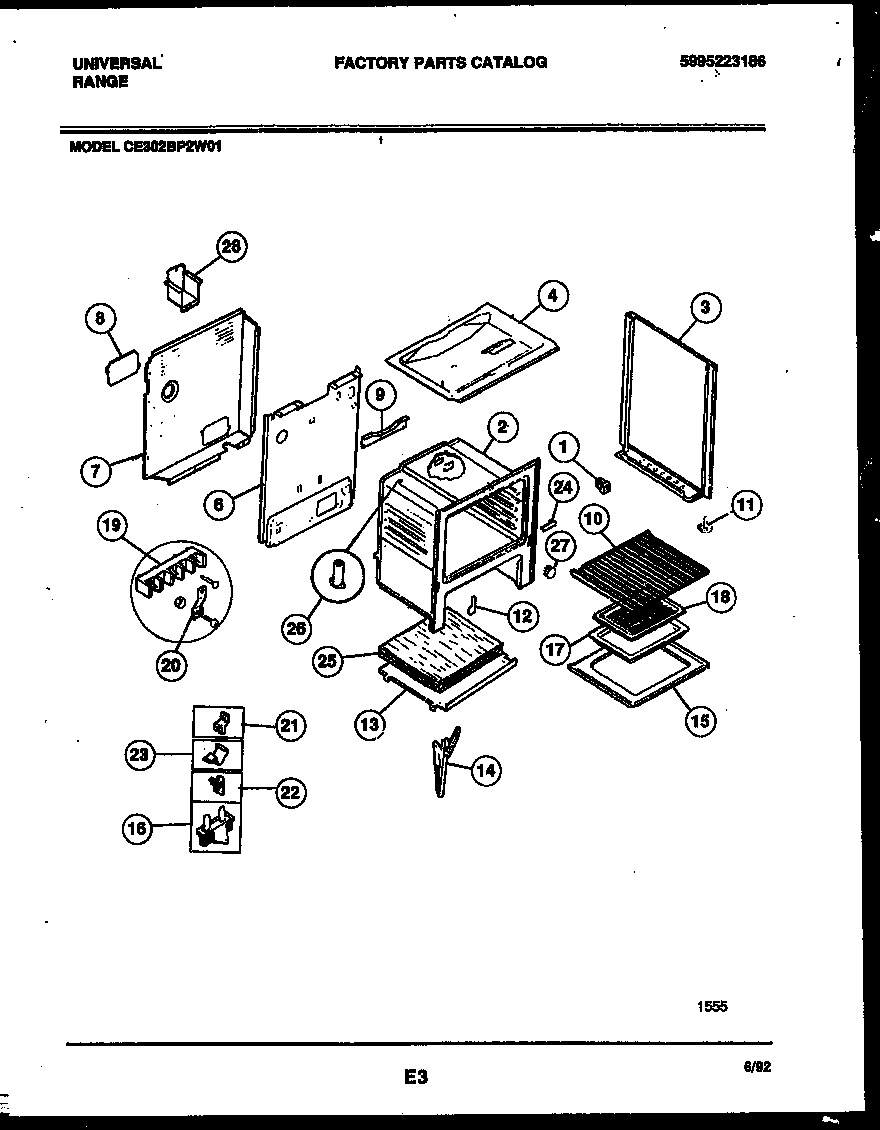

CE302BP2H1 04 – BODY PARTS

Products

Position	Product
*63011	5303300265 Frigidaire Oven Screw
*63011	WCI 5303206618
*63010	INSULATION, OVEN WRAPPER
*63010	INSUL – OVEN BACK (NON-ILLUSTRATED)
*63011	3131903 Frigidaire Door/Drawer Bumper
*63011	ANTI-TIP KIT (NOT ILLUSTRATED)
*63011	316205500 Frigidaire Oven Nut
*63011	WCI 316002012
*63011	3203550 Frigidaire Oven Plug
1	SPACER-BODYSIDE, (8)
3	PNL-B/S LH-WHEAT
3A	PNL-B/S RH-WHEAT
4	WCI 5303271756
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	Hinge,oven door ,(2)
15	PANEL-OVEN BOTTOM
16	FUSE-THERMO CUTOUT
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	COVER-OVEN FRONT
25	316403803 Frigidaire Insulation
26	WCI 5303283907
27	3051218 Frigidaire Oven Plate
28	WCI 3203582
