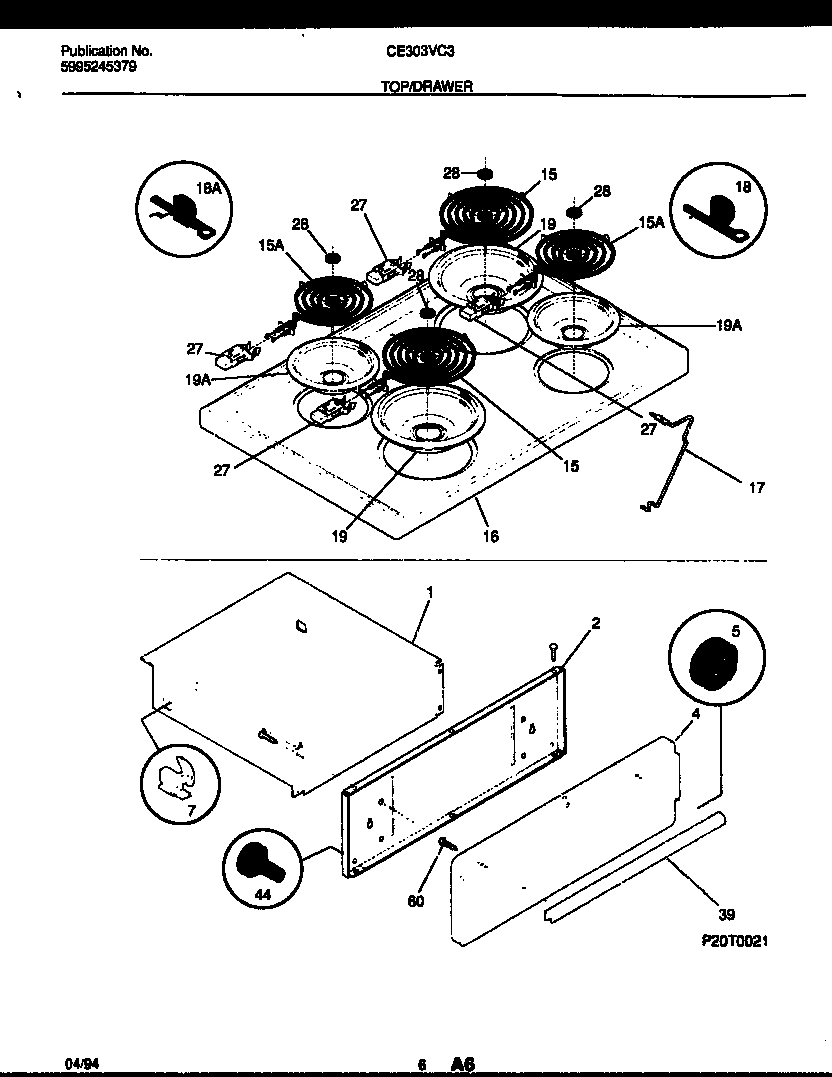

CE303VC3D1 04 – COOKTOP AND DRAWER PARTS

CE303VC3D1 04 – COOKTOP AND DRAWER PARTS

Written by

in

CE303VC3D1 04 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*96982WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL – BROILER ALMD
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442300 Frigidaire Oven 2100W Coil Element 8
15A318372210 Frigidaire Oven Range 6" 1250W Surface Element
16WCI 3013512
17ROD-MAIN SUPPORT (2)
18BRACKET-HINGE,MAIN TOP RH
18ABRACKET-HINGE,MAIN TOP LH
19A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
275303935058 Frigidaire Oven Burner Receptacle Kit
28AMEDALLION, STAINLESS STEEL, SURF ELEM
39HANDLE-DRAWER, BRUSHED CHROME
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
