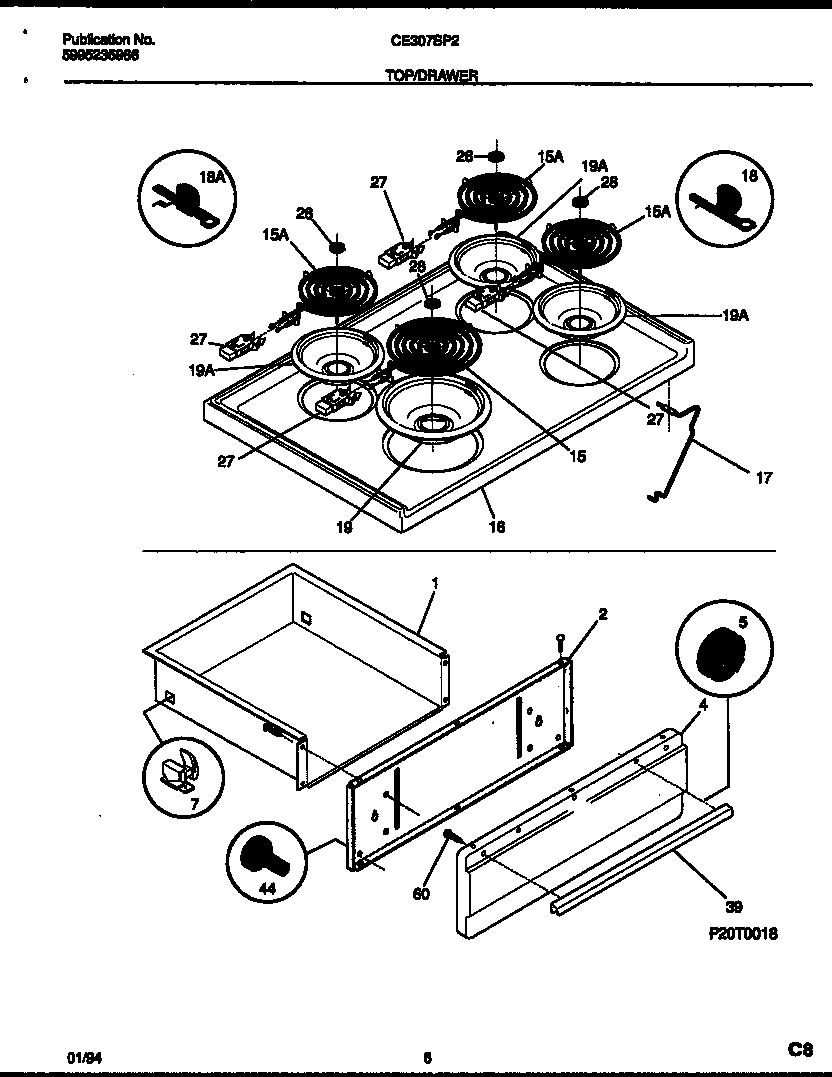

CE307SP2W1 04 – COOKTOP AND DRAWER PARTS

CE307SP2W1 04 – COOKTOP AND DRAWER PARTS

Written by

in

CE307SP2W1 04 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
1AWCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4PNL-DRAWER (WHTE)
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15316442300 Frigidaire Oven 2100W Coil Element 8
15A318372210 Frigidaire Oven Range 6" 1250W Surface Element
16WCI 3051379
17ROD-MAIN SUPPORT (2)
18BRACKET-HINGE,MAIN TOP RH
18ABRACKET-HINGE,MAIN TOP LH
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
275303935058 Frigidaire Oven Burner Receptacle Kit
28WCI 5308067828
39HANDLE-DRAWER, BRUSHED CHROME
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
