CE35000AAA 03 – DOOR/DRAWER

CE35000AAA 03 – DOOR/DRAWER

Written by

in

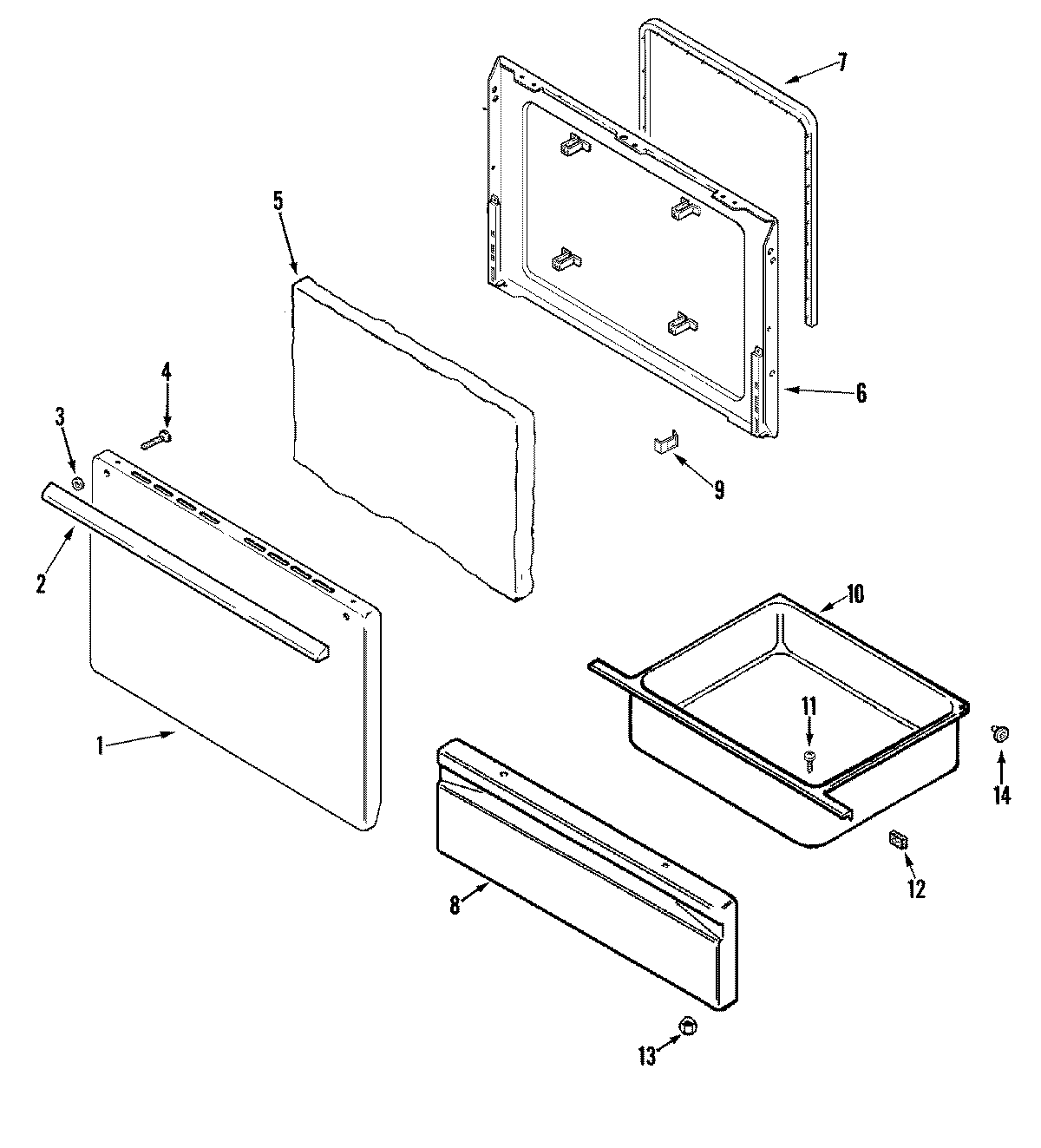

CE35000AAA 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 2401F096-74
1SCREW
2WP2411F013-70 Whirlpool Door Handle
3MAY 8010P084-60
4WP3387230 Whirlpool Screw
5MAY 4804F050-60
6MAY 74003240
7WP7212P043-60 Whirlpool Oven Door Seal Gasket
8MAY 74003522
9CLIP, DOOR
10MAY 71003042
11MAY 7101P037-60
12MAY 8010P085-60
13WPW10131078 Whirlpool Nut Assembly
14MAY 74003566
14WP488130 Whirlpool Air Conditioner Nut
