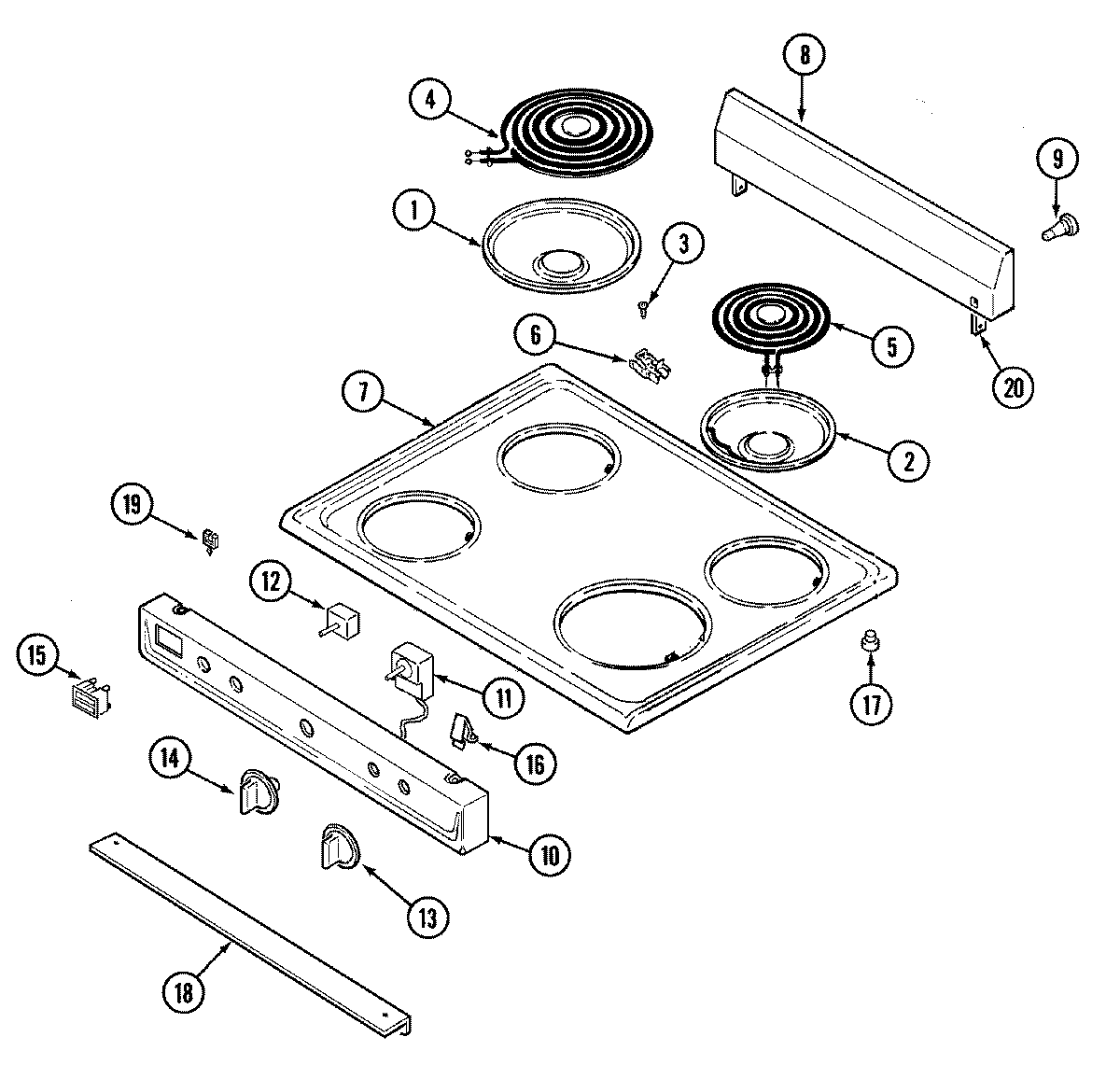

CE35000AAT 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
NI	MAY 5170D130-60
NI	MAY 16010161
NI	MAY 12001323
NI	MAY 74003402
1	DRIP BOWL 8" W/HOLE CHROME
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
2	WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
3	MAY 7118P013-60
4	WPY04000035 Whirlpool Surface Element
4	WP9761346 Whirlpool Stove Surface Burner Element
5	WPW10345407 Whirlpool Surface Element
5	WPY04000036 Whirlpool Surface Element
6	MAY 1430306K
7	MAY 3802F085-80
7	MAY 74005059
8	MAY 74005246
9	SPACER, HINGE (MAIN TOP)
10	BRACKET, CNTL. PANEL
10	MAY 74003401
11	MAY 74003267
11	SCREW
12	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
12	WP7403P239-60 Whirlpool Oven Switch
13	WP74003280 Whirlpool Knob Assembly
14	WP7737P030-60 Whirlpool Knob Switch
15	MAY 74006106
15	MAY 7407P015-60
16	MAY 7112P087-60
17	MAY 74001428
18	SUPPORT UPPER FRONT PANEL
18	SCREW
19	MAY 7112P029-60
20	MAY 3801F242-51
20	MAY 3801F243-51
