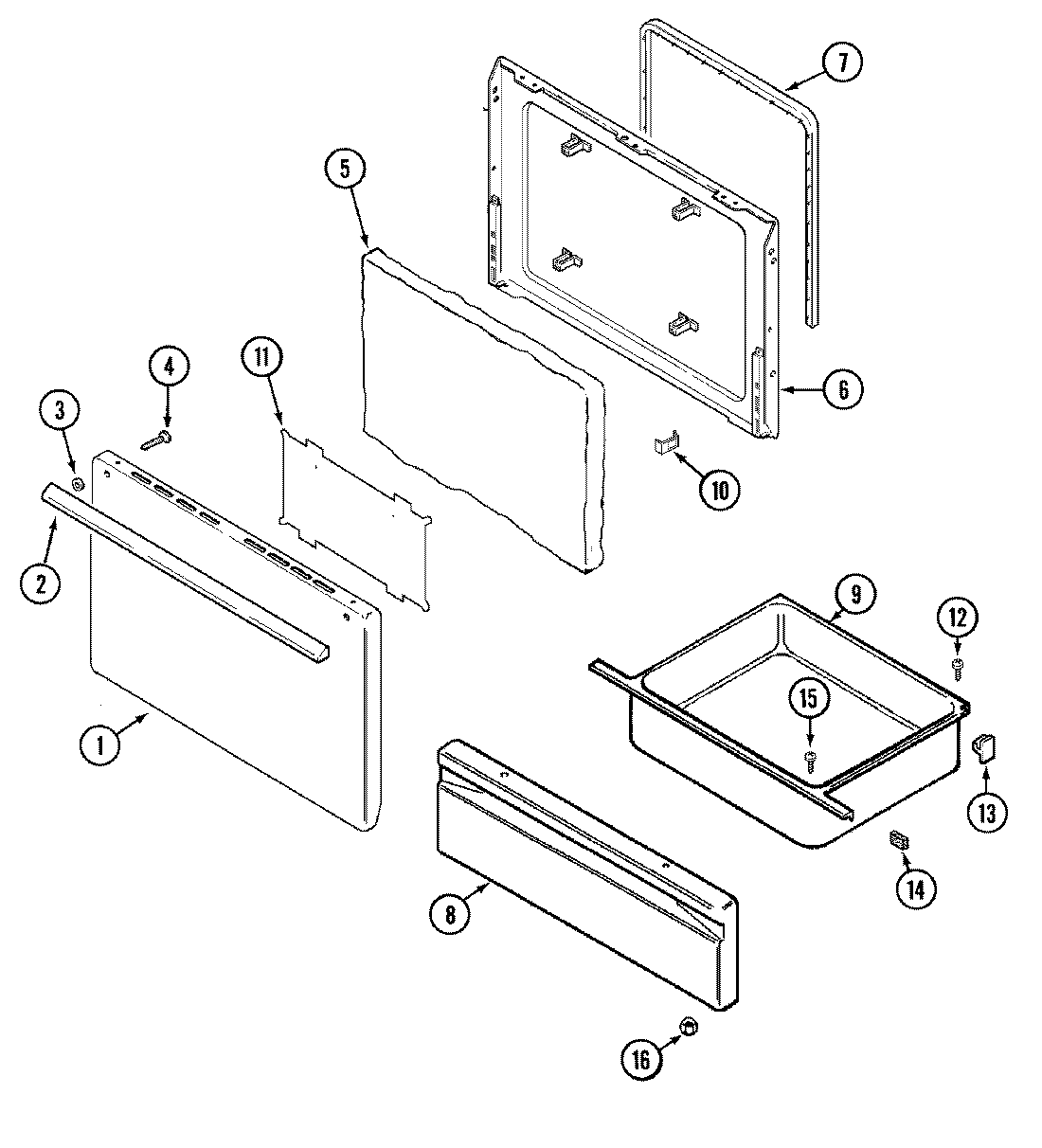

CE3500PPA 04 – DOOR/DRAWER (CE3500PPx)

Products

Position	Product
1	MAY 2401F096-74
2	WP2411F013-70 Whirlpool Door Handle
2	MAY 7701P030-60
3	MAY 8010P084-60
4	WP3387230 Whirlpool Screw
5	MAY 4804F011-60
6	MAY 74003240
6	MAY 2402W201-19
7	WP7212P043-60 Whirlpool Oven Door Seal Gasket
8	MAY 74003522
8	MAY 2416F038-64
9	MAY 3405F015-80
9	LINING, DRAWER PANEL
9	MAY 71003042
10	CLIP, DOOR
11	MAY 3601F250-51
12	MAY 7101P291-60
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13	WP8004P026-60 Whirlpool Support
13	MAY 74003566
13	WP488130 Whirlpool Air Conditioner Nut
14	MAY 7208P011-60
15	WP4159193 Whirlpool Screw
16	WPW10131078 Whirlpool Nut Assembly
