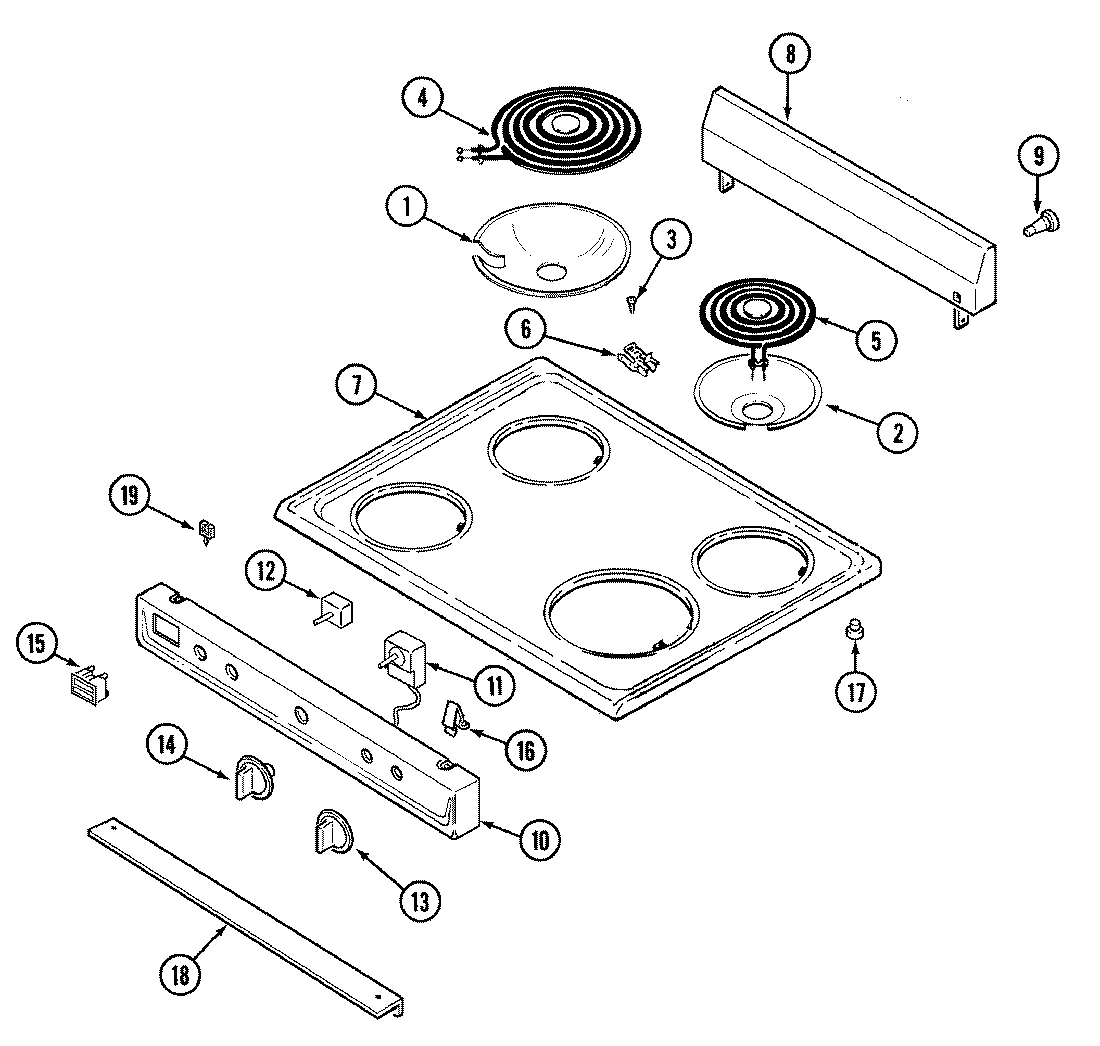

CE3500PPA 09 – TOP ASSEMBLY/CONTROL PANEL (CE3500PPx)

Products

Position	Product
NI	MAY 5175D053-60
NI	MAY 16002080
NI	MAY 8113P023-60
NI	MAY 5170D130-60
1	DRIP BOWL 8" W/HOLE CHROME
1	MAY 7725P009-60
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
2	WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
2	MAY 7725P008-60
3	MAY 7118P013-60
4	WPY04000035 Whirlpool Surface Element
5	WPY04000036 Whirlpool Surface Element
6	MAY 1430306K
7	MAY 2002W074-84
8	MAY 7719P060-60
8	MAY 2601F360-74
9	SPACER, HINGE (MAIN TOP)
9	MAY 7101P290-60
10	MAY 74003401
10	MAY 2614F030-09
11	MAY 7404P085-60
11	MAY 74003267
12	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
12	WP7403P239-60 Whirlpool Oven Switch
12	MAY 7101P280-60
13	WP74003280 Whirlpool Knob Assembly
14	WP7737P030-60 Whirlpool Knob Switch
15	MAY 7407P015-60
16	MAY 7112P087-60
17	MAY 8010P048-60
18	SUPPORT UPPER FRONT PANEL
19	MAY 7112P029-60
