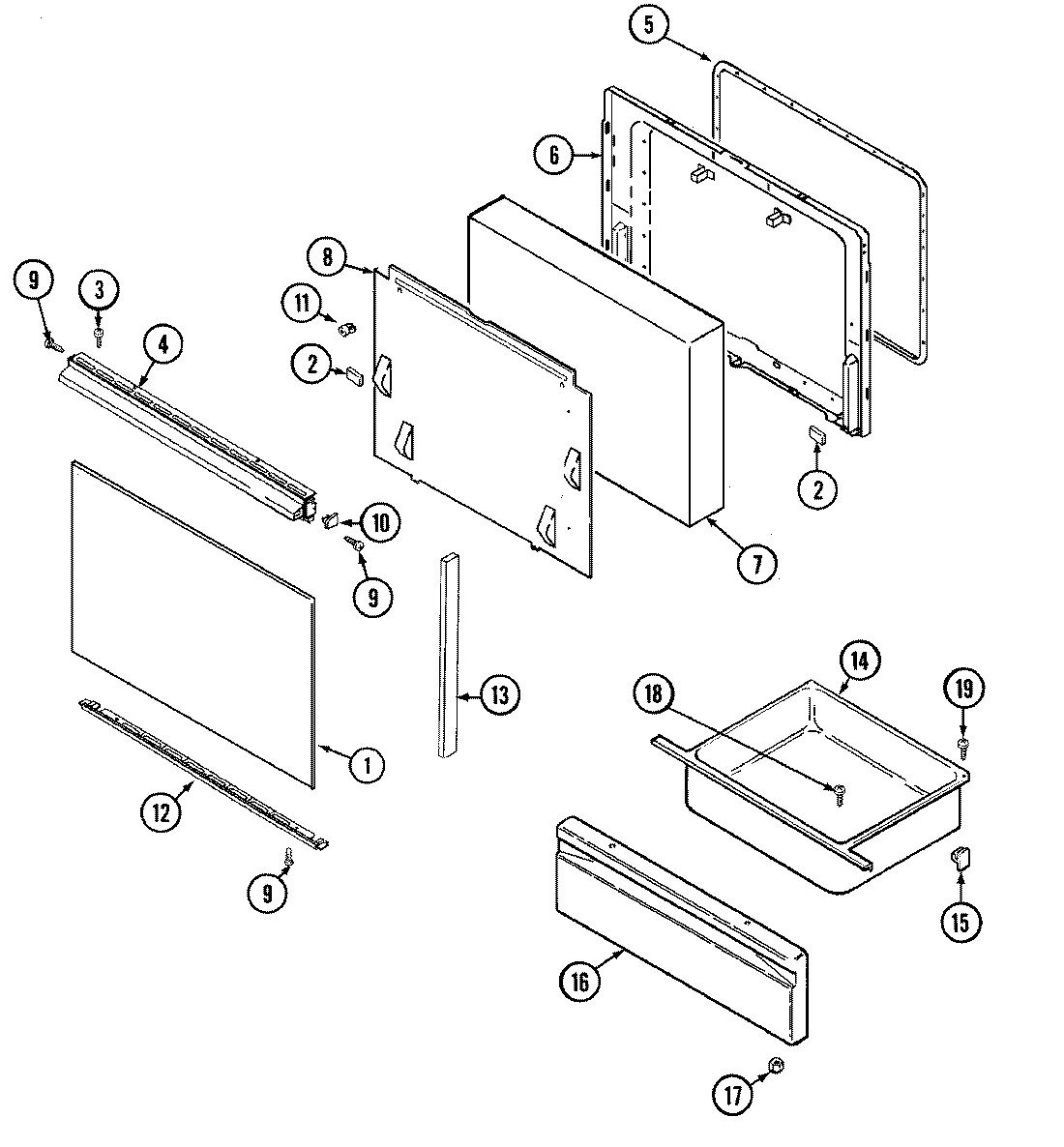

CE3500PPW 05 – DOOR/DRAWER (CE3520SRx SERIES 01)

Products

Position	Product
1	MAY 7902P325-60
2	MAY 8010P085-60
3	WP98008545 Whirlpool Screw
4	MAY 7701P103-60
5	WP7212P043-60 Whirlpool Oven Door Seal Gasket
6	MAY 2402W201-19
7	MAY 4804F011-60
8	MAY 3601F218-45
9	MAY 7101P290-60
10	MAY 7744P076-60
10	MAY 7744P075-60
11	MAY 7103P045-60
12	MAY 7744P078-60
13	MAY 7744P055-60
14	MAY 3405F015-80
17	WPW10131078 Whirlpool Nut Assembly
19	SCREW
