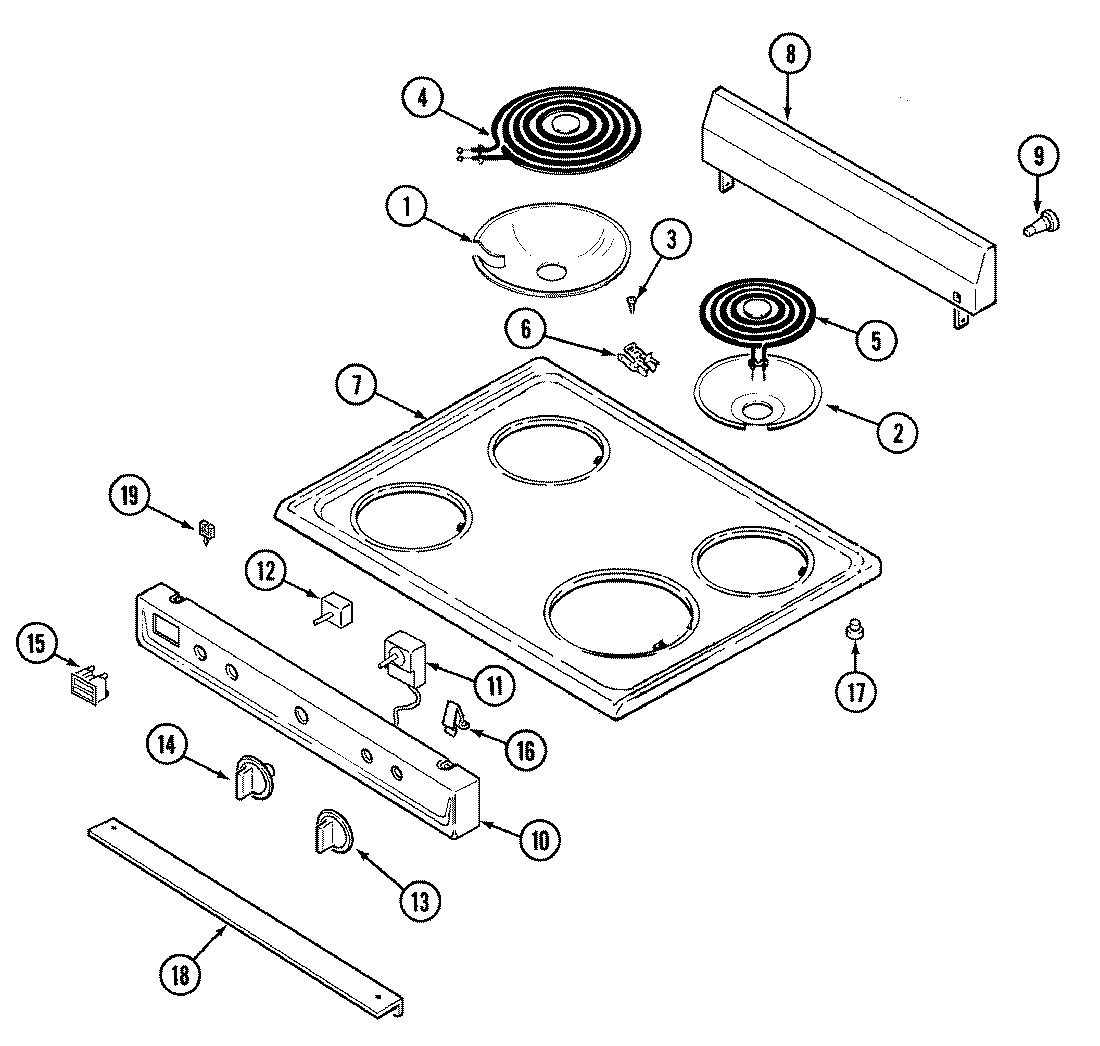

CE3500PPW 09 – TOP ASSEMBLY/CONTROL PANEL (CE3500PPx)

CE3500PPW 09 – TOP ASSEMBLY/CONTROL PANEL (CE3500PPx)

Written by

in

CE3500PPW 09 – TOP ASSEMBLY/CONTROL PANEL (CE3500PPx)

Products

PositionProduct
NIMAY 5175D053-60
NIMAY 16002080
NIMAY 8113P023-60
NIMAY 5170D130-60
1DRIP BOWL 8" W/HOLE CHROME
1MAY 7725P009-60
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
2MAY 7725P008-60
3MAY 7118P013-60
4WPY04000035 Whirlpool Surface Element
5WPY04000036 Whirlpool Surface Element
6MAY 1430306K
7MAY 2002W074-81
8MAY 7719P060-60
8MAY 2601F360-71
9SPACER, HINGE (MAIN TOP)
9MAY 7101P290-60
10MAY 74003401
10MAY 2614F030-09
11MAY 7404P085-60
11MAY 74003267
12WP7403P238-60 Whirlpool Infinite Switch (Small Element)
12WP7403P239-60 Whirlpool Oven Switch
12MAY 7101P280-60
13WP74003280 Whirlpool Knob Assembly
14WP7737P030-60 Whirlpool Knob Switch
15MAY 7407P015-60
16MAY 7112P087-60
17MAY 8010P048-60
18SUPPORT UPPER FRONT PANEL
19MAY 7112P029-60
