CE35100AAT 03 – DOOR/DRAWER (AAT)

CE35100AAT 03 – DOOR/DRAWER (AAT)

Written by

in

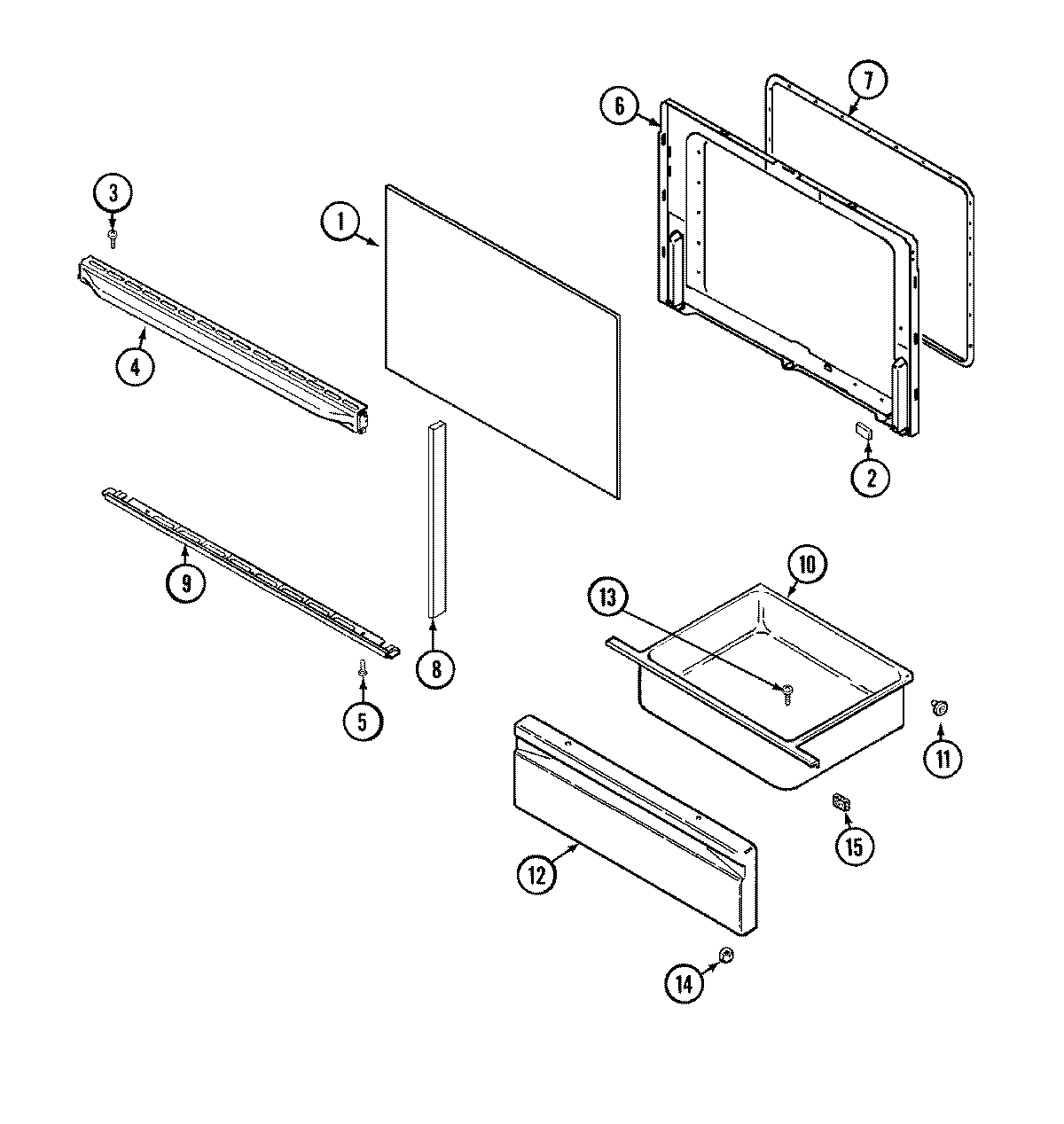

CE35100AAT 03 – DOOR/DRAWER (AAT)

Products

PositionProduct
1MAY 7902P325-60
3WP98008545 Whirlpool Screw
4MAY 74003429
6MAY 3601F218-51
6MAY 74003240
6MAY 74009377
6MAY 74001842
6SCREW
7WP7212P043-60 Whirlpool Oven Door Seal Gasket
8MAY 74003430
9MAY 74003432
10MAY 74003618
11MAY 74003566
11WP488130 Whirlpool Air Conditioner Nut
12MAY 74005055
13WP7101P072-60 Whirlpool Screw
14WPW10131078 Whirlpool Nut Assembly
15MAY 8010P085-60
