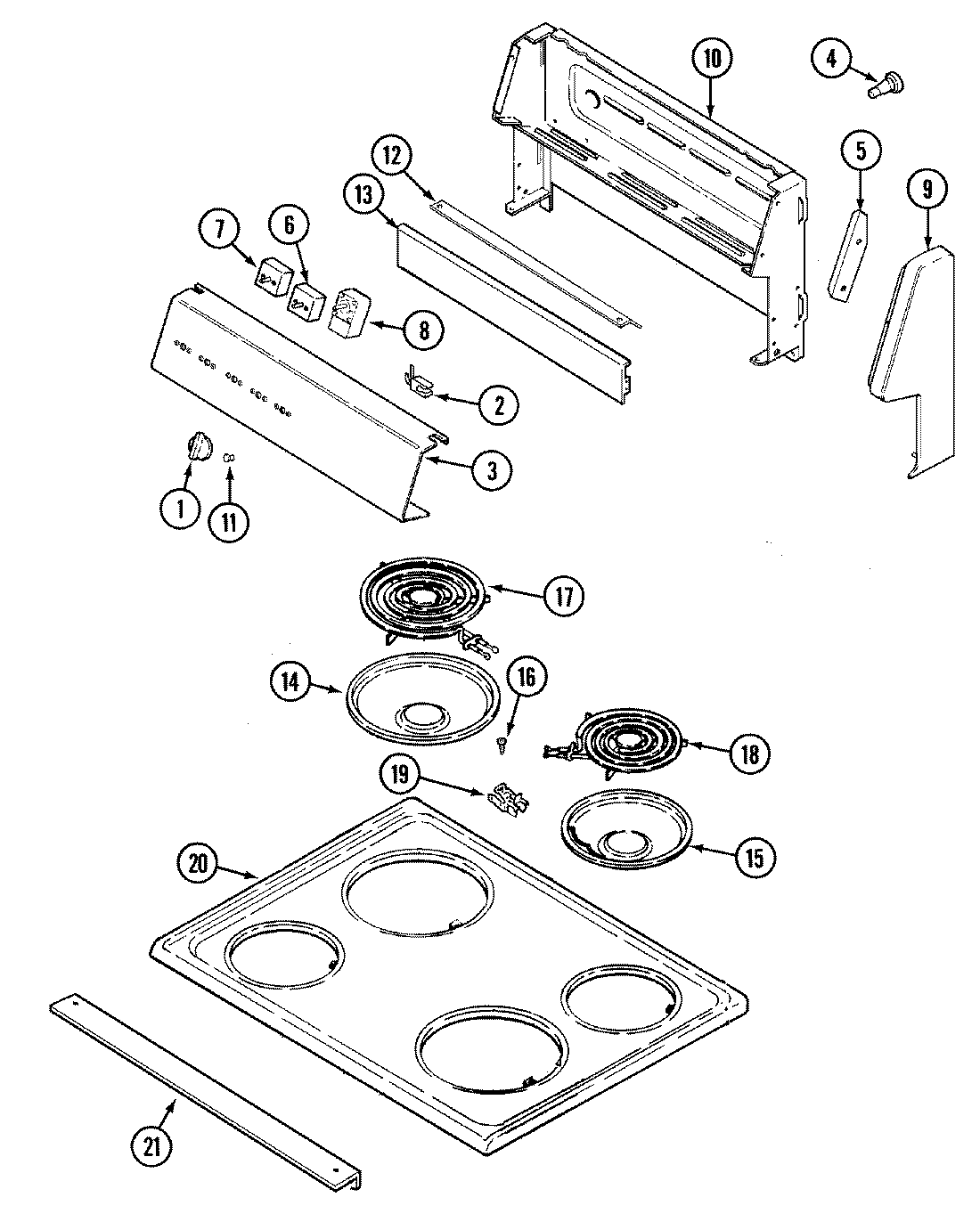

CE3510PPA 02 – CONTROL PANEL/TOP ASSEMBLY

CE3510PPA 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

CE3510PPA 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
NIMAY 8113P023-60
NIMAY 16002080
NIMAY 5170D119-60
NIMAY 5125A316-60
NIMAY 5175D049-60
1SCREW
1WP7737P030-60 Whirlpool Knob Switch
1MAY 7735P031-60
1MAY 7739P037-60
2MAY 7407P081-60
3MAY 2601F396-70
4SPACER, HINGE (MAIN TOP)
5MAY 3807F435-45
5MAY 3807F436-45
6WP7403P255-60 Whirlpool Selector Switch
7WP7403P239-60 Whirlpool Oven Switch
7WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8MAY 7404P081-60
9MAY 7101P032-60
9MAY 7726P070-60
9MAY 7726P069-60
10MAY 4001F085-51
11W11690159 Whirlpool Handle
12MAY 3604F201-80
13MAY 2612F036-84
14MAY 7725P009-60
15MAY 7725P008-60
15WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
16MAY 7118P013-60
17WPY04000035 Whirlpool Surface Element
18WPY04000036 Whirlpool Surface Element
19MAY 1430306K
20MAY 2002W074-84
21MAY 7118P015-60
21MAY 3802F085-80
