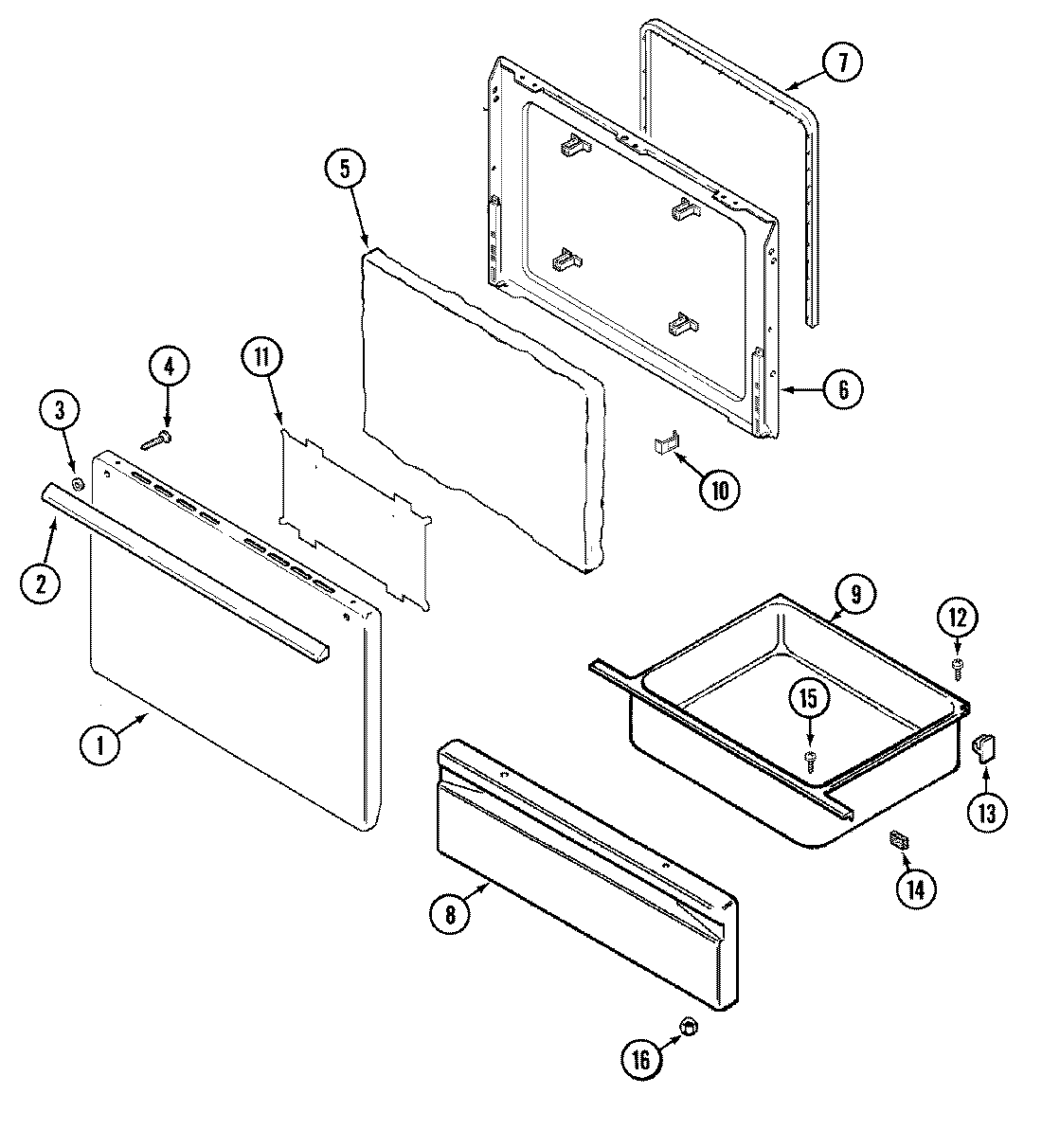

CE3510PRV 06 – DOOR/DRAWER (CE3510PRx)

CE3510PRV 06 – DOOR/DRAWER (CE3510PRx)

Written by

in

CE3510PRV 06 – DOOR/DRAWER (CE3510PRx)

Products

PositionProduct
1PANEL, DOOR (WHT)
2WP2411F013-71 Whirlpool Door Handle
3WP74005058 Whirlpool Spacer Assembly
4WP3387230 Whirlpool Screw
5MAY 4804F011-60
6MAY 74003240
6MAY 2402W201-19
7WP7212P043-60 Whirlpool Oven Door Seal Gasket
8MAY 2416F039-62
9MAY 74003618
9MAY 3405F015-80
10CLIP, DOOR
11MAY 3601F250-51
12MAY 7101P291-60
12NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13MAY 74003566
13WP8004P026-60 Whirlpool Support
13WP488130 Whirlpool Air Conditioner Nut
14MAY 7208P011-60
15WP4159193 Whirlpool Screw
16WPW10131078 Whirlpool Nut Assembly
