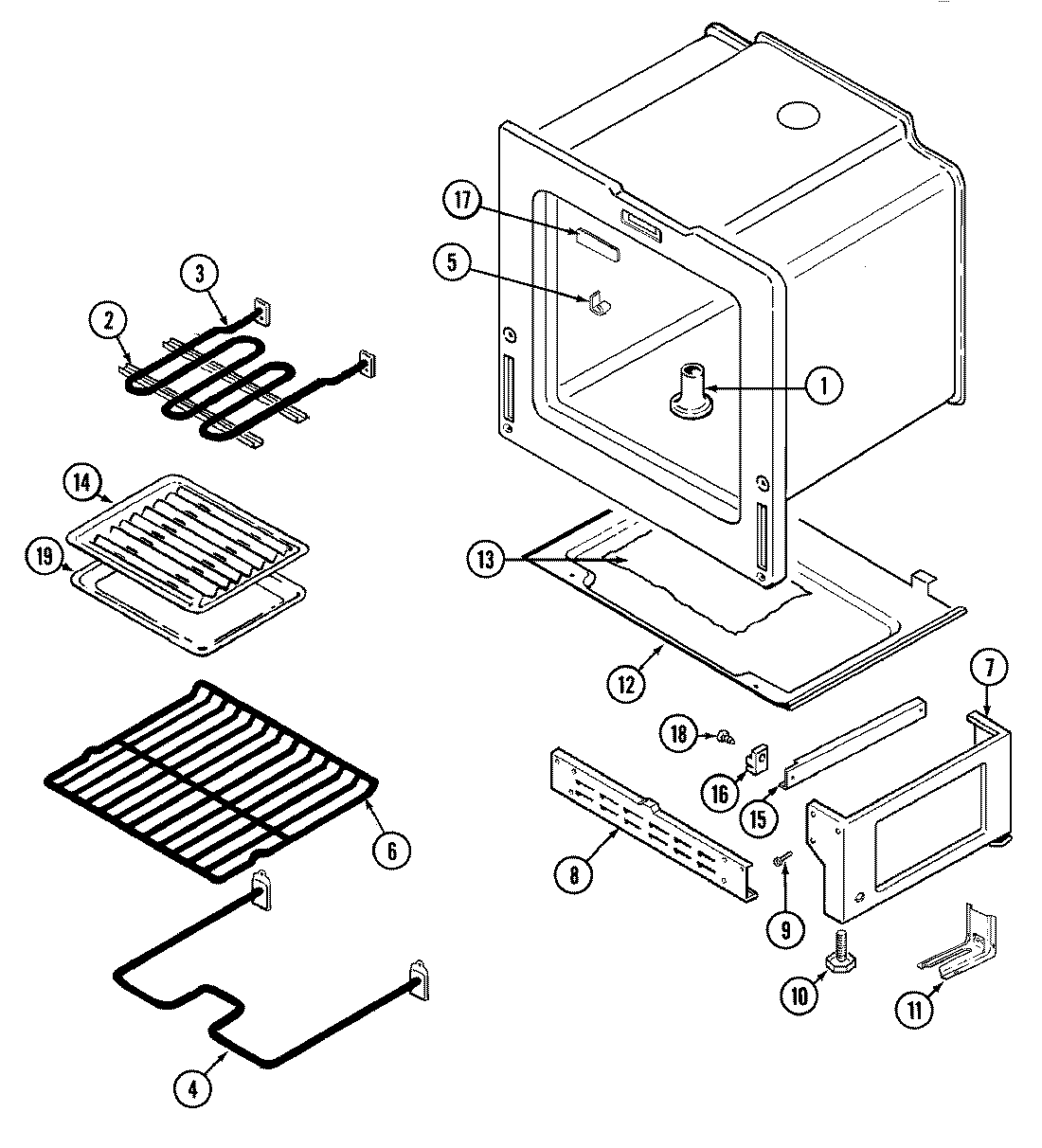

CE3510PRV 11 – OVEN/BASE (CE3510PRx)

Products

Position	Product
1	MAY 8026P019-60
2	MAY 3807F389-45
3	MAY Y04000057
4	MAY Y04000058
5	WP7112P004-60 Whirlpool Thermal Clip
6	MAY 7801P040-60
7	MAY 74003003
7	MAY 4020W007-80
8	MAY 4020F001-80
9	MAY 7101P290-60
10	MAY 7101P306-60
10	W11665456 Whirlpool Range Level Foot
11	MAY 7101P289-60
11	MAY 3801F218-51
12	MAY 3804F109-51
13	MAY 8312P058-60
14	MAY Y3413F01619
15	RUNNER, DRAWER
15	MAY 3406F028-51
16	MAY 8004P025-60
16	WP488130 Whirlpool Air Conditioner Nut
16	MAY 74003566
17	MAY 8114P335-60
18	MAY 7101P334-60
18	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
19	MAY Y3401F02019
