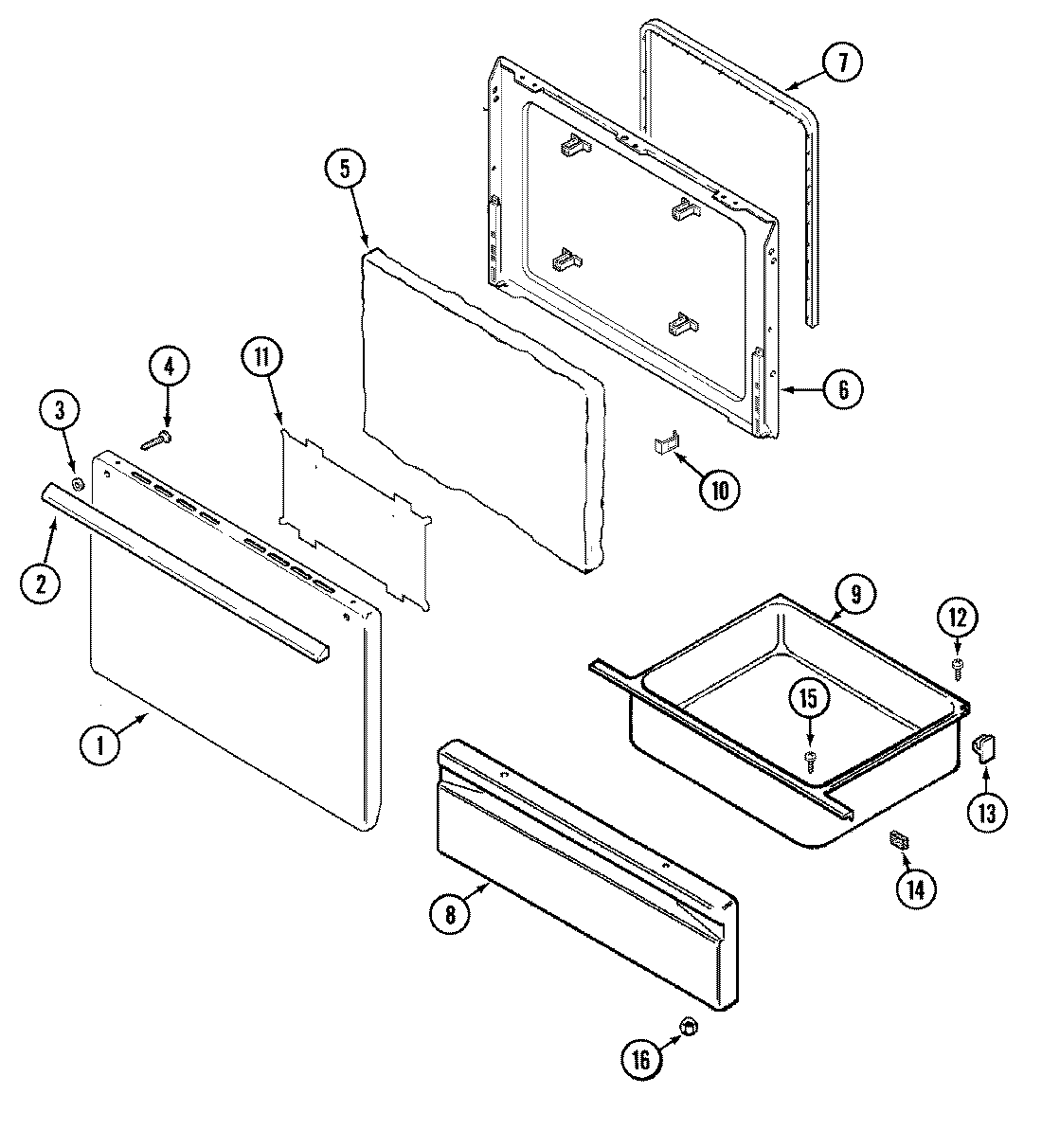

CE3510PRW 06 – DOOR/DRAWER (CE3510PRx)

Products

Position	Product
1	PANEL, DOOR (WHT)
2	WP2411F013-70 Whirlpool Door Handle
2	MAY 7701P030-60
3	MAY 8010P084-60
4	WP3387230 Whirlpool Screw
5	MAY 4804F011-60
6	MAY 2402W201-19
7	WP7212P043-60 Whirlpool Oven Door Seal Gasket
8	MAY 2416F039-62
9	MAY 3405F015-80
10	CLIP, DOOR
11	MAY 3601F250-51
12	MAY 7101P291-60
13	WP8004P026-60 Whirlpool Support
14	MAY 7208P011-60
15	WP4159193 Whirlpool Screw
16	WPW10131078 Whirlpool Nut Assembly
