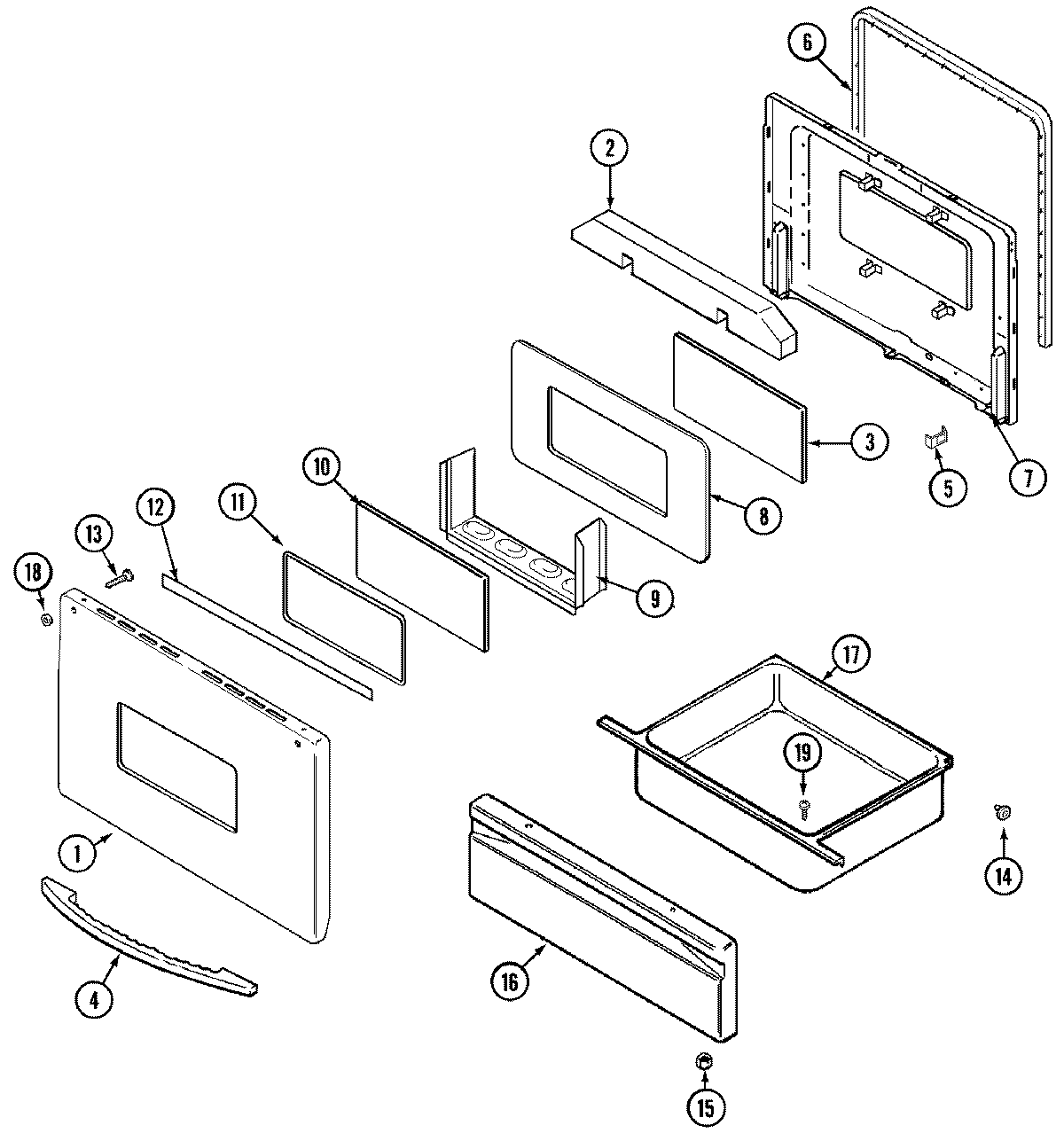

CE35110BCV 03 – DOOR/DRAWER

Products

PositionProduct
1SCREW
1MAY 74006288
2MAY 74002458
3MAY 74002002
4MAY 74006291
5CLIP, DOOR
6WP7212P043-60 Whirlpool Oven Door Seal Gasket
7MAY 74005097
8MAY 74002461
8MAY 7101P209-60
9MAY 74002462
10MAY 74002464
11MAY 7201P017-60
12TAPE, FOIL (3“ WIDE)
13MAY 74006295
14SHAFT, STORAGE DRAWER ROLLER
14WP74004078 Whirlpool Door Roller
14WP488130 Whirlpool Air Conditioner Nut
15WPW10131078 Whirlpool Nut Assembly
16MAY 74003399
17MAY 71003042
17WP3801F813-51 Whirlpool Bracket
18MAY 74001521
