CE35111AAQ 01 – BODY (AAQ/AAT)

CE35111AAQ 01 – BODY (AAQ/AAT)

Written by

in

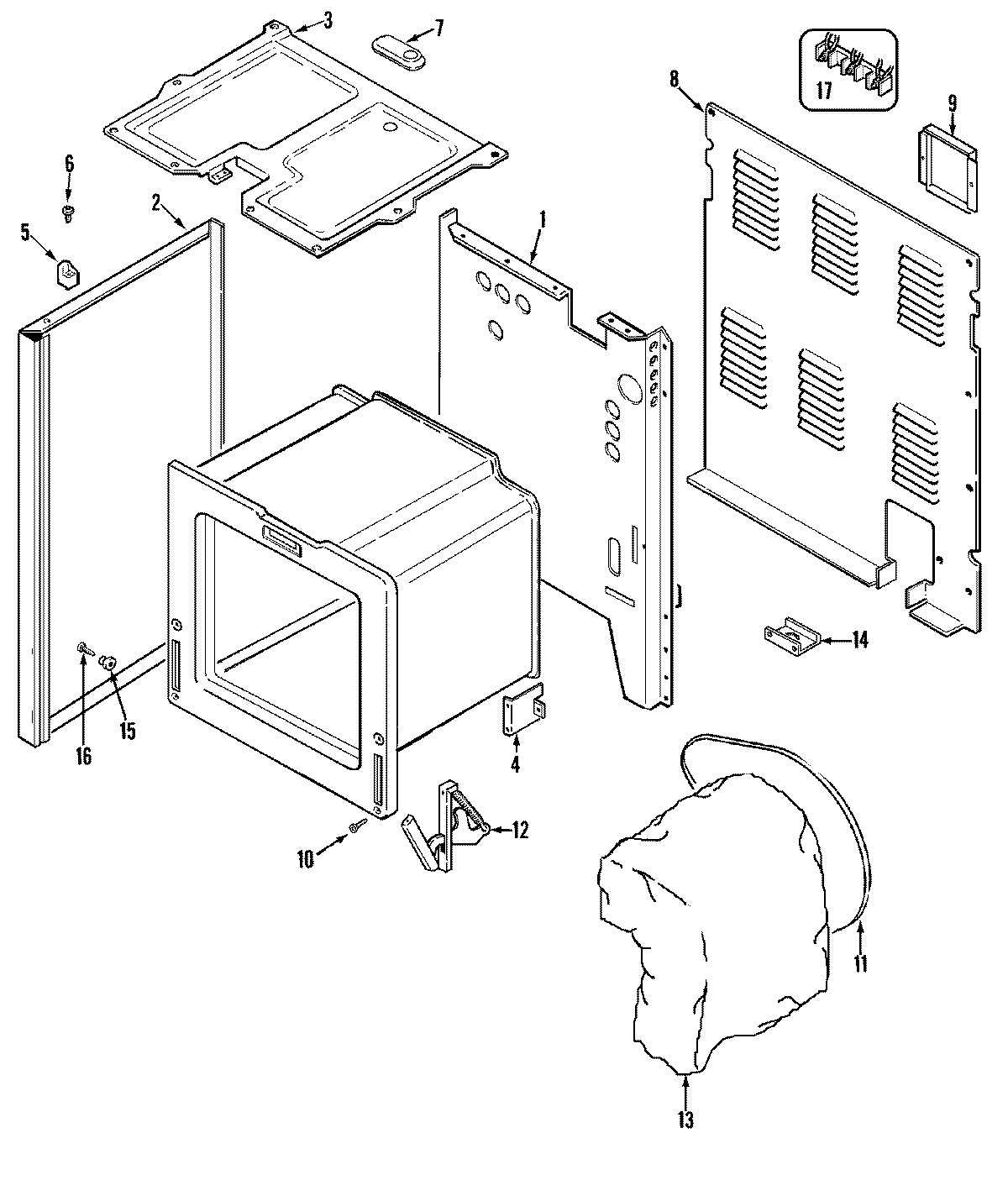

CE35111AAQ 01 – BODY (AAQ/AAT)

Products

PositionProduct
1MAY 74006322
1GROMMET
1MAY 74002334
1MAY 74001772
2MAY 74004965
3MAY 4011F239-19
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6SCREW
7COVER, VENT
8MAY 74003241
9MAY 4005F427-51
10WP4159193 Whirlpool Screw
11MAY 74003385
12W10876639 Whirlpool Door Hinge Assembly
13MAY 4804F039-60
13MAY 74003112
14W10190166 Whirlpool Service Bracket
15MAY 8004P024-60
16MAY 74001449
16W11693756 Whirlpool Screw Assembly
17WPW10245259 Whirlpool Terminal Block
17SCREW (10ABX1.0-ZN)
17WP7103P027-60 Whirlpool Nut
