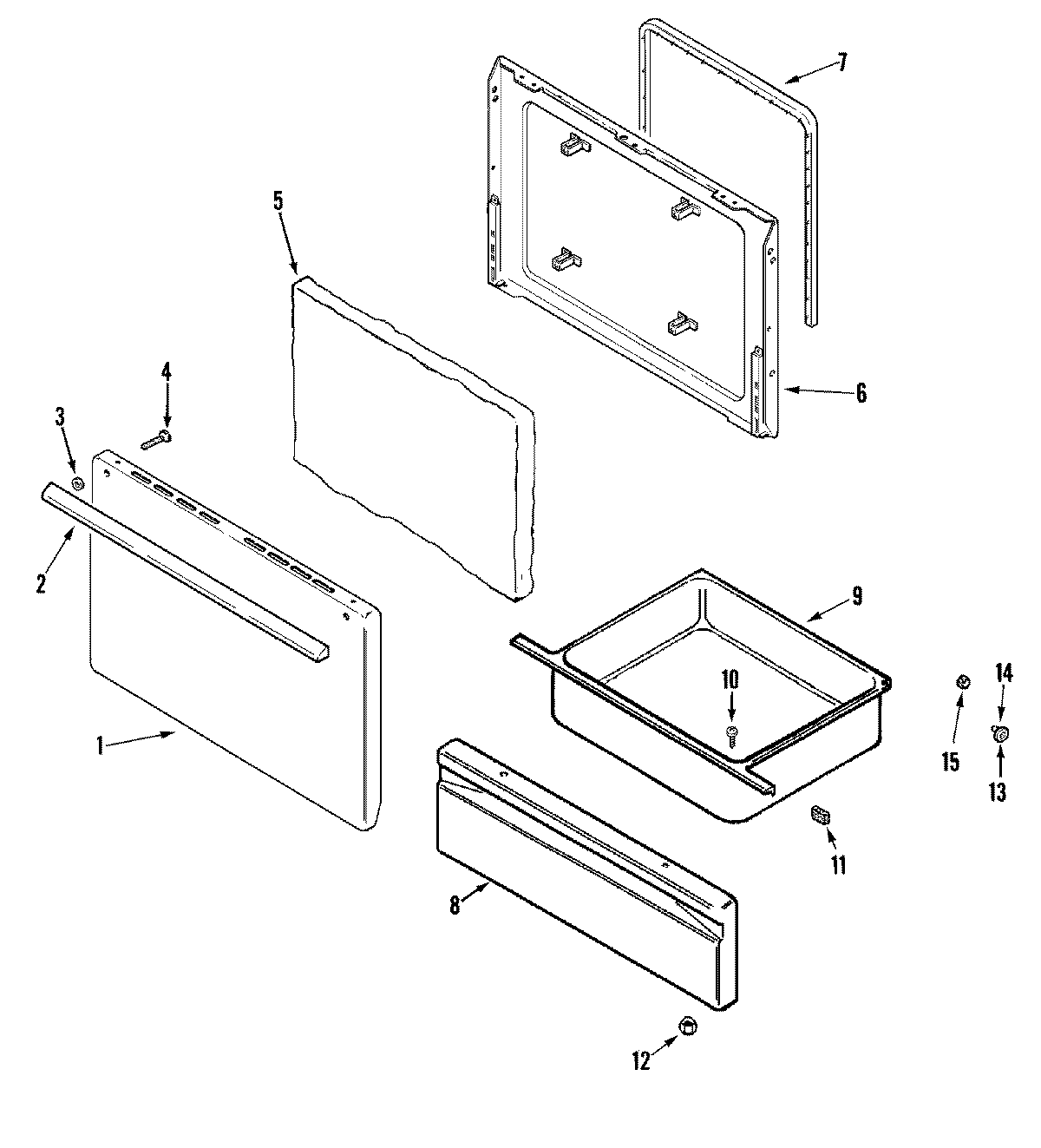

CE35200AAV 03 – DOOR/DRAWER (AAQ,AAV)

Products

Position	Product
1	PANEL, DOOR (WHT)
2	WP2411F013-71 Whirlpool Door Handle
3	WP74005058 Whirlpool Spacer Assembly
4	WP3387230 Whirlpool Screw
5	MAY 4804F050-60
6	MAY 74003240
7	WP7212P043-60 Whirlpool Oven Door Seal Gasket
8	MAY 74003399
9	MAY 74008337
10	SCREW
11	WP74005546 Whirlpool RU Spacer
12	WPW10131078 Whirlpool Nut Assembly
13	WP74004078 Whirlpool Door Roller
14	SHAFT, STORAGE DRAWER ROLLER
15	WP488130 Whirlpool Air Conditioner Nut
16	CLIP, DOOR
