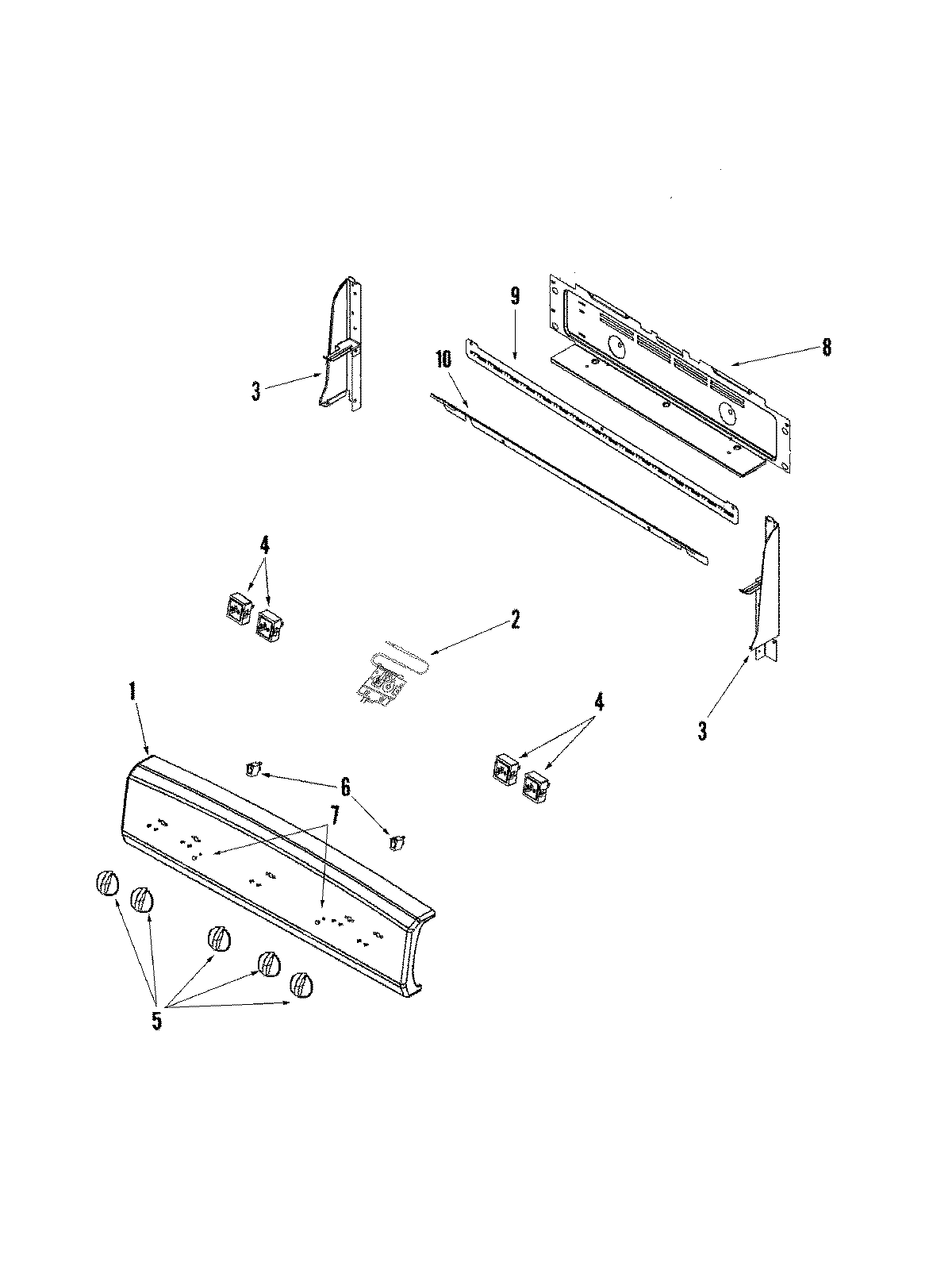

CE35200AAW 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74010356
2MAY 74010330
3MAY 74010202
3MAY 74010201
3WP98008545 Whirlpool Screw
3WP74003976 Whirlpool Screw
4SCREW
4WP7403P239-60 Whirlpool Oven Switch
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5MAY 74010332
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 7101P147-60
8MAY 74009943
9MAY 74009701
9SCREW (8BX3/8-NI)
10MAY 74009978
10WP90767 Whirlpool Screw
