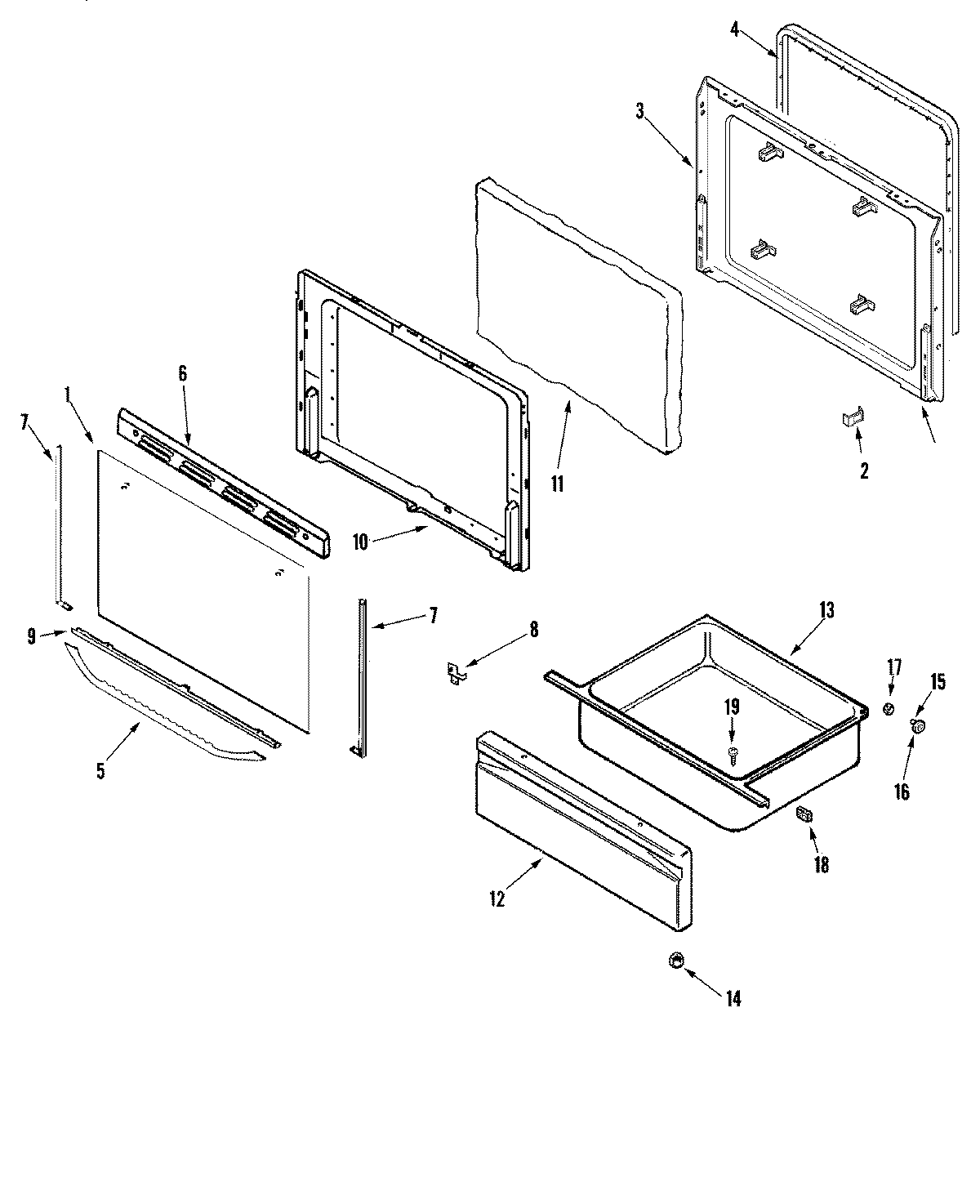

CE35200AAW 03 – DOOR/DRAWER (AAW)

CE35200AAW 03 – DOOR/DRAWER (AAW)

Written by

in

CE35200AAW 03 – DOOR/DRAWER (AAW)

Products

PositionProduct
1MAY 74010335
2CLIP, DOOR
3MAY 74009377
4WP7212P043-60 Whirlpool Oven Door Seal Gasket
5MAY 74010338
5WP74006515 Whirlpool Washer Screw
6MAY 74010239
7WP3608F116-70 Whirlpool Door Trim
7WP3608F117-70 Whirlpool Door Trim
7NUT, SNAP (ROUND-BLK)
7WP98008545 Whirlpool Screw
7WP74004224 Whirlpool Tape
83801F832-45 Whirlpool Bracket
83801F831-45 Whirlpool Bracket Assembly
9SUPPORT, GLASS (BLK)
10MAY 3601F218-51
10SCREW
11MAY 74001842
12MAY 74003399
13MAY 74008337
14WPW10131078 Whirlpool Nut Assembly
15SHAFT, STORAGE DRAWER ROLLER
16WP74004078 Whirlpool Door Roller
17WP488130 Whirlpool Air Conditioner Nut
18WP74005546 Whirlpool RU Spacer
