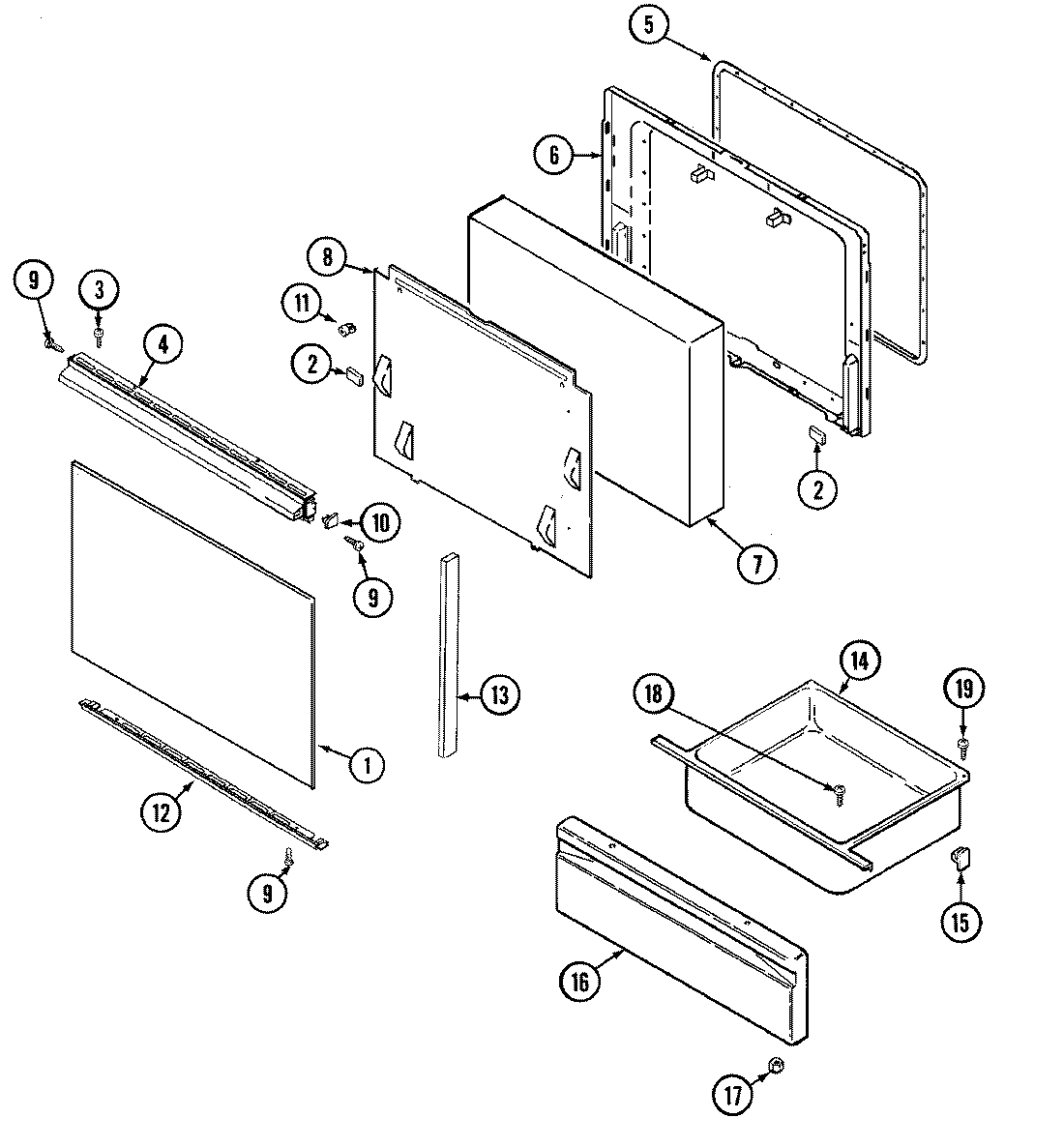

CE3520SPA 03 – DOOR/DRAWER (CE3520SPx) – Aparts

CE3520SPA 03 – DOOR/DRAWER (CE3520SPx)

Products

Position	Product
1	MAY 7902P325-60
2	MAY 8010P085-60
3	WP98008545 Whirlpool Screw
4	MAY 7701P103-60
5	MAY 7212P034-60
6	MAY 2402W201-19
7	MAY 4804F011-60
8	MAY 3601F218-45
9	MAY 7101P290-60
10	MAY 7744P076-60
10	MAY 7744P075-60
11	MAY 8010P075-60
12	MAY 7744P078-60
13	MAY 7744P055-60
14	MAY 3405F015-80
15	WP8004P026-60 Whirlpool Support
16	MAY 2416F039-64
17	WPW10131078 Whirlpool Nut Assembly
18	WP4159193 Whirlpool Screw
19	SCREW
