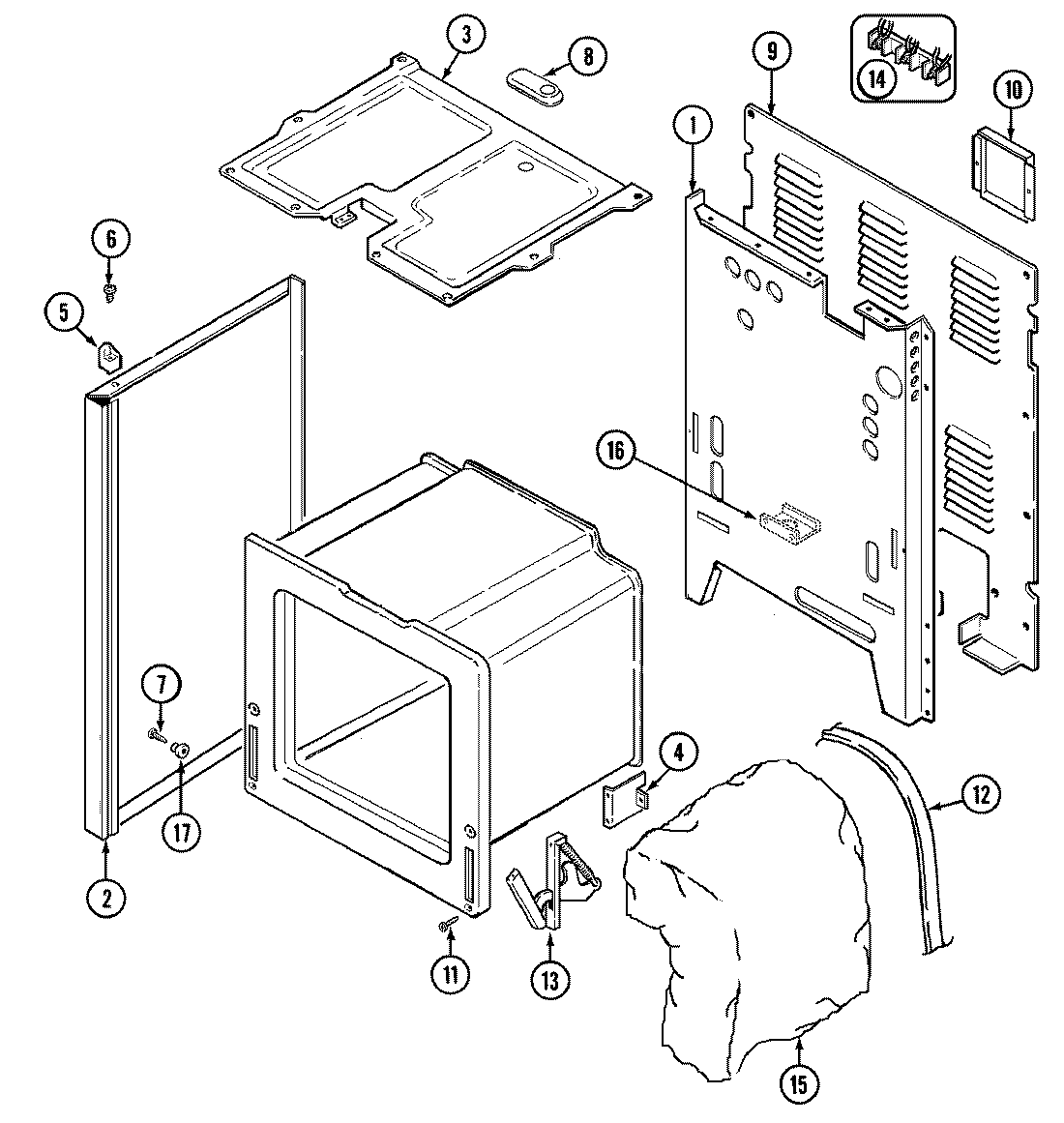

CE3520SRW 02 – BODY (CE3520SRx)

Products

Position	Product
1	MAY 4002F189-80
2	MAY 2618F085-71
2	MAY 2618F099-71
3	MAY 4011F208-19
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7118P013-60
7	MAY 7101P334-60
8	MAY 4005F350-45
9	MAY 4005F348-51
10	MAY 4005F427-51
11	SCREW, HINGE
12	MAY 4820F001-59
13	MAY 12400042
13	W10876639 Whirlpool Door Hinge Assembly
14	WPW10245259 Whirlpool Terminal Block
15	MAY 4804F017-60
15	MAY 4804F018-60
16	MAY 3605F174-51
17	MAY 8004P024-60
