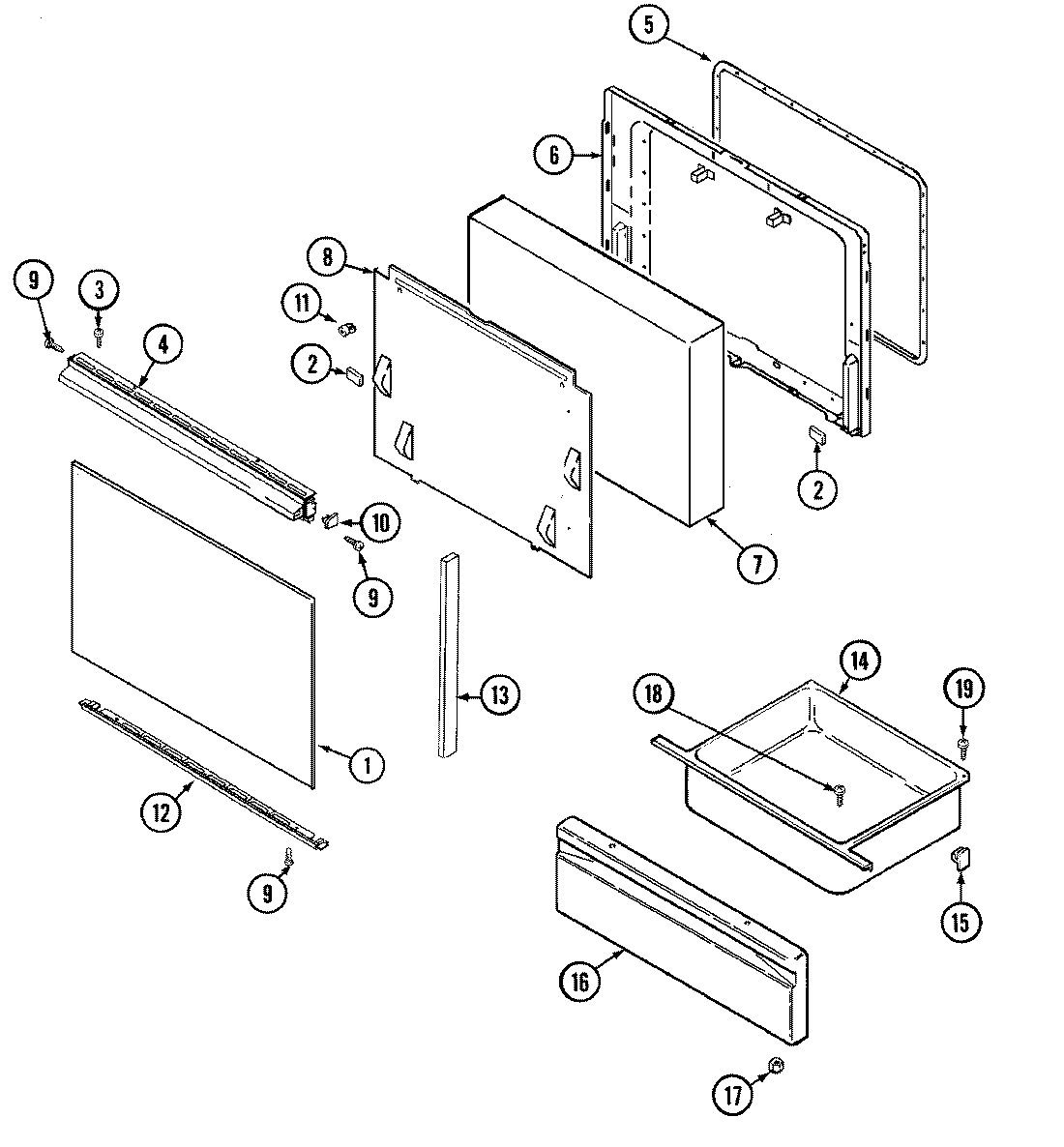

CE3520SRW 04 – DOOR/DRAWER (CE3520SRx SERIES 01)

CE3520SRW 04 – DOOR/DRAWER (CE3520SRx SERIES 01)

Written by

in

CE3520SRW 04 – DOOR/DRAWER (CE3520SRx SERIES 01)

Products

PositionProduct
1MAY 7902P325-60
2MAY 8010P085-60
3WP98008545 Whirlpool Screw
4MAY 7701P103-60
5WP7212P043-60 Whirlpool Oven Door Seal Gasket
6MAY 2402W201-19
7MAY 4804F011-60
8MAY 3601F218-45
9MAY 7101P290-60
10MAY 7744P076-60
10MAY 7744P075-60
11MAY 7103P045-60
12MAY 7744P078-60
13MAY 7744P055-60
14MAY 3405F015-80
15WP8004P026-60 Whirlpool Support
16MAY 2416F039-62
17WPW10131078 Whirlpool Nut Assembly
19SCREW
