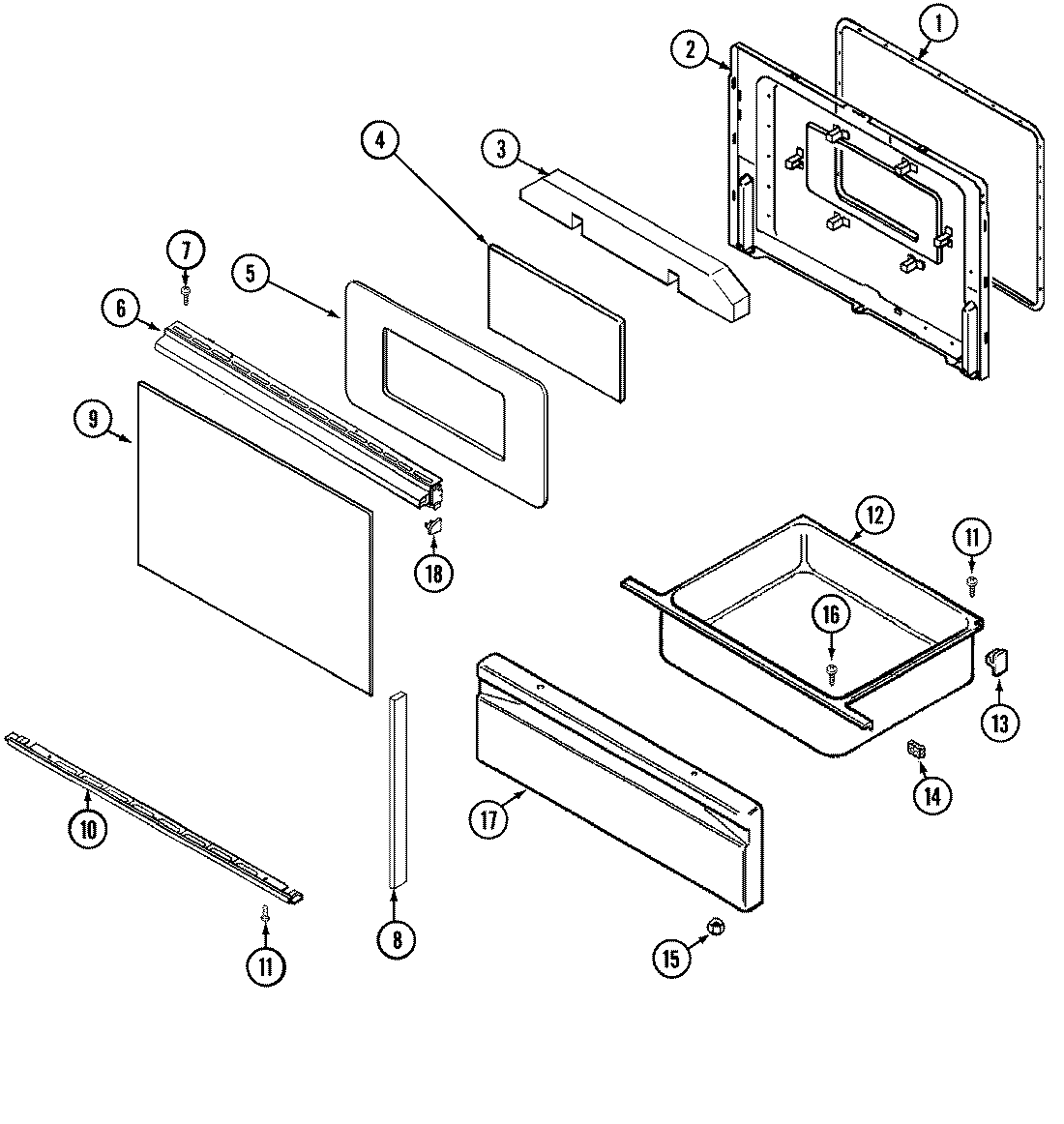

CE3531XUA 03 – DOOR/DRAWER (“X“ DOOR SERIAL PREFIX 28)

CE3531XUA 03 – DOOR/DRAWER (“X“ DOOR SERIAL PREFIX 28)

Written by

in

CE3531XUA 03 – DOOR/DRAWER (“X“ DOOR SERIAL PREFIX 28)

Products

PositionProduct
1WP7212P043-60 Whirlpool Oven Door Seal Gasket
2MAY 74003248
2MAY 74002460
3MAY 74002458
4MAY 74002459
5MAY 74002461
6MAY 7701P103-60
6MAY 74003429
6MAY 7701P144-60
7WP98008545 Whirlpool Screw
8MAY 74003430
8MAY 74002084
9MAY 74003431
9MAY 7902P321-60
10MAY 7744P105-60
10MAY 74003432
11SCREW
12MAY 3405F015-80
12MAY 74003618
13WP8004P026-60 Whirlpool Support
13MAY 74003566
13WP488130 Whirlpool Air Conditioner Nut
14WP854334 Whirlpool Air Conditioner Sealing Strip
15WPW10131078 Whirlpool Nut Assembly
16WP7101P072-60 Whirlpool Screw
17MAY 2416F039-64
18MAY 74002539
18MAY 74002540
