CE3537XUA 02 – CONTROL PANEL

CE3537XUA 02 – CONTROL PANEL

Written by

in

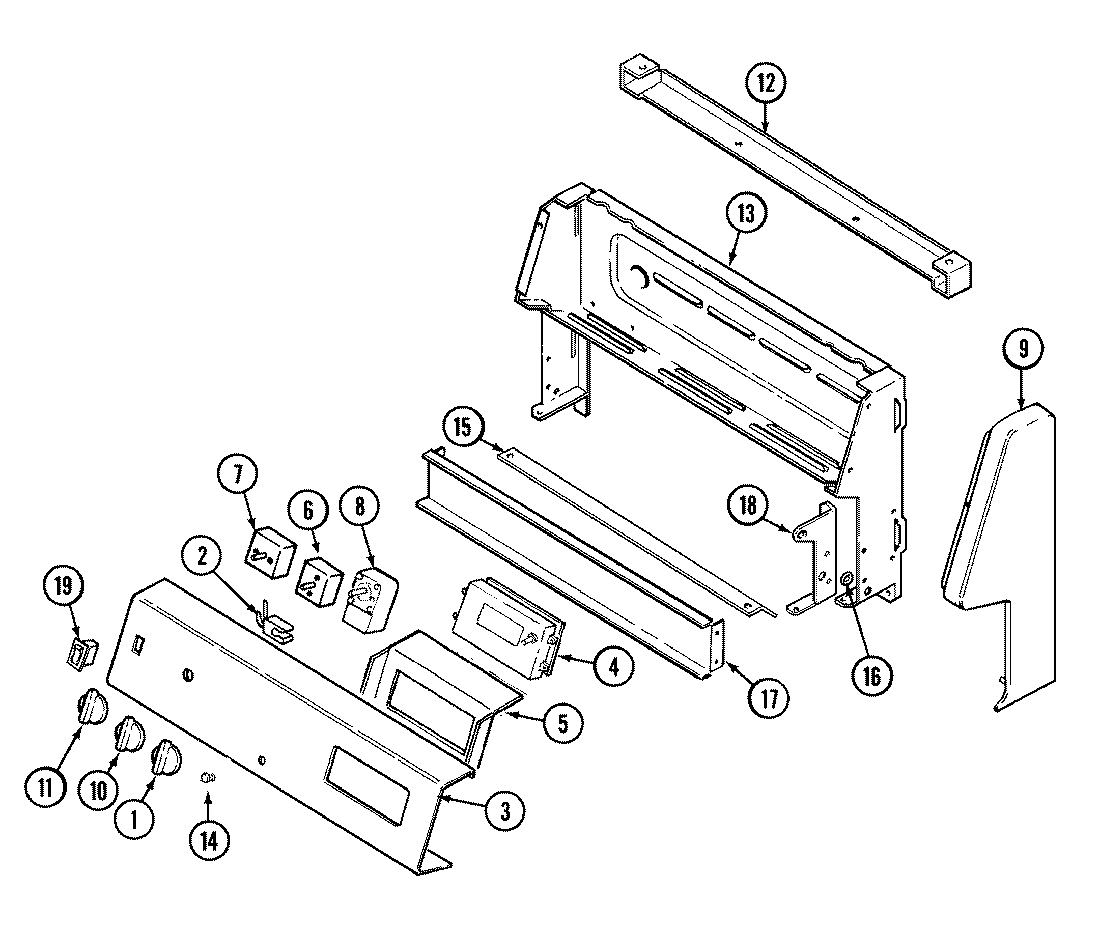

CE3537XUA 02 – CONTROL PANEL

Products

PositionProduct
NIMAY 16002080
NIMAY 5175D077-60
NIMAY 5170D118-60
NIMAY 8113P023-60
1MAY 7735P037-60
2W10852510 Whirlpool Indicator Light
3MAY 7703P639-60
4MAY 7602P118-60
4SCREW (8BX3/8-NI)
5WPY706189 Whirlpool Stove Screw
5MAY 3801F340-45
6WP7403P255-60 Whirlpool Selector Switch
7WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7SCREW
7WP7403P239-60 Whirlpool Oven Switch
8WP7404P105-60 Whirlpool Thermostat
9MAY 74001352
9MAY 7726P059-60
9MAY 74001355
9MAY 7726P060-60
11MAY 7731P082-60
12MAY 4001F064-51
13MAY 4001F091-51
14W11690131 Whirlpool Light Lens
15MAY 3604F201-80
16WP3195558 Whirlpool Nut
17MAY 3802F088-51
18MAY 3807F453-60
18MAY 3807F454-60
197403P067-60 Whirlpool Light Switch
