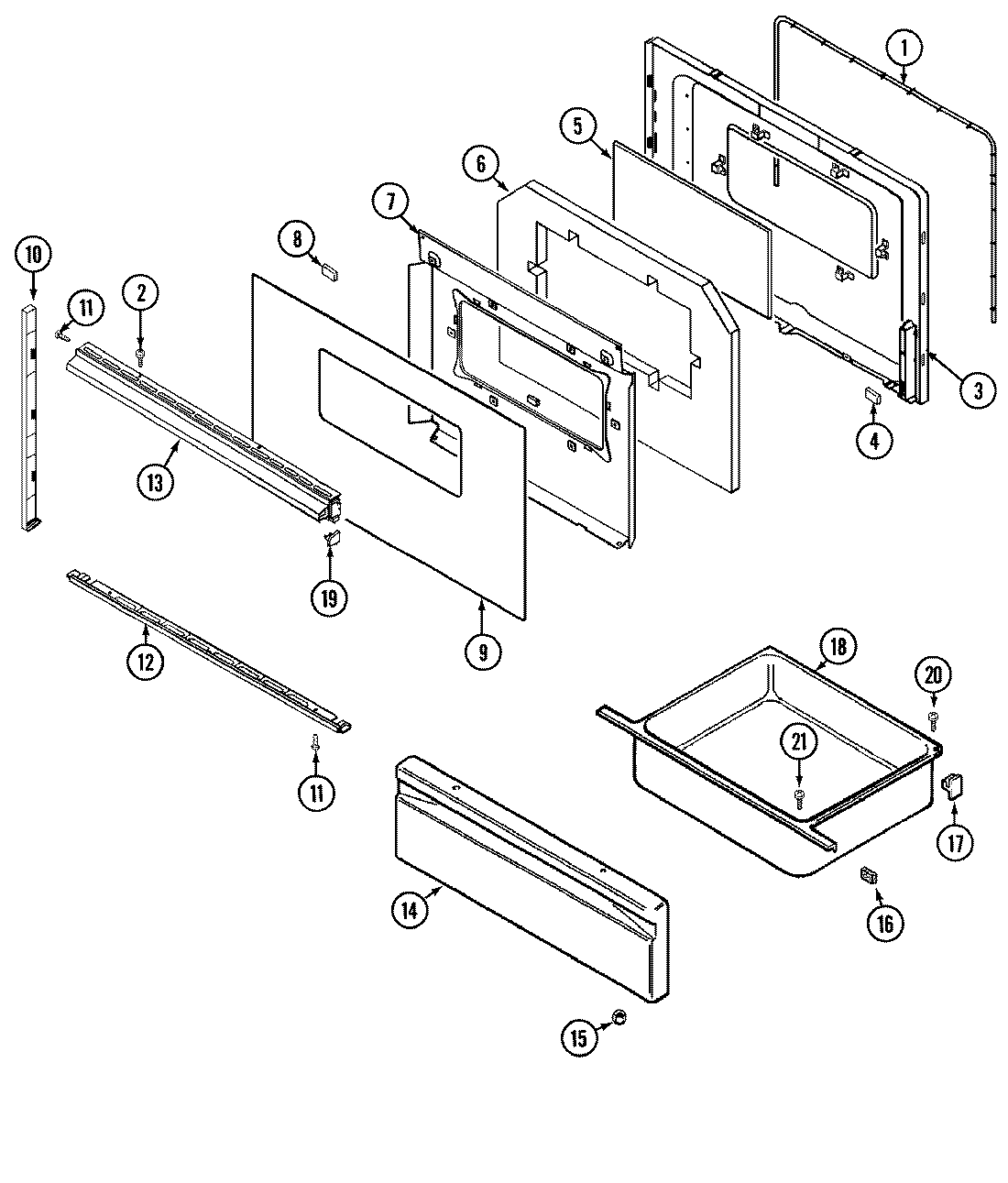

CE3537XUA 04 – DOOR/DRAWER (SERIAL PREFIX 11)

CE3537XUA 04 – DOOR/DRAWER (SERIAL PREFIX 11)

Written by

in

CE3537XUA 04 – DOOR/DRAWER (SERIAL PREFIX 11)

Products

PositionProduct
1WP7212P043-60 Whirlpool Oven Door Seal Gasket
2WP98008545 Whirlpool Screw
3MAY 2402W213-19
5MAY 7902P319-60
6MAY 7002P158-60
7MAY 3601F240-80
8MAY 8270P095-60
9MAY 7902P321-60
10MAY 7744P055-60
12MAY 7744P105-60
13MAY 7701P103-60
14MAY 2416F039-64
15WP4159193 Whirlpool Screw
15WPW10131078 Whirlpool Nut Assembly
16MAY 8010P085-60
17WP8004P026-60 Whirlpool Support
18MAY 3405F019-80
19MAY 7744P076-60
19MAY 7744P075-60
20MAY 7101P290-60
21WP7101P072-60 Whirlpool Screw
