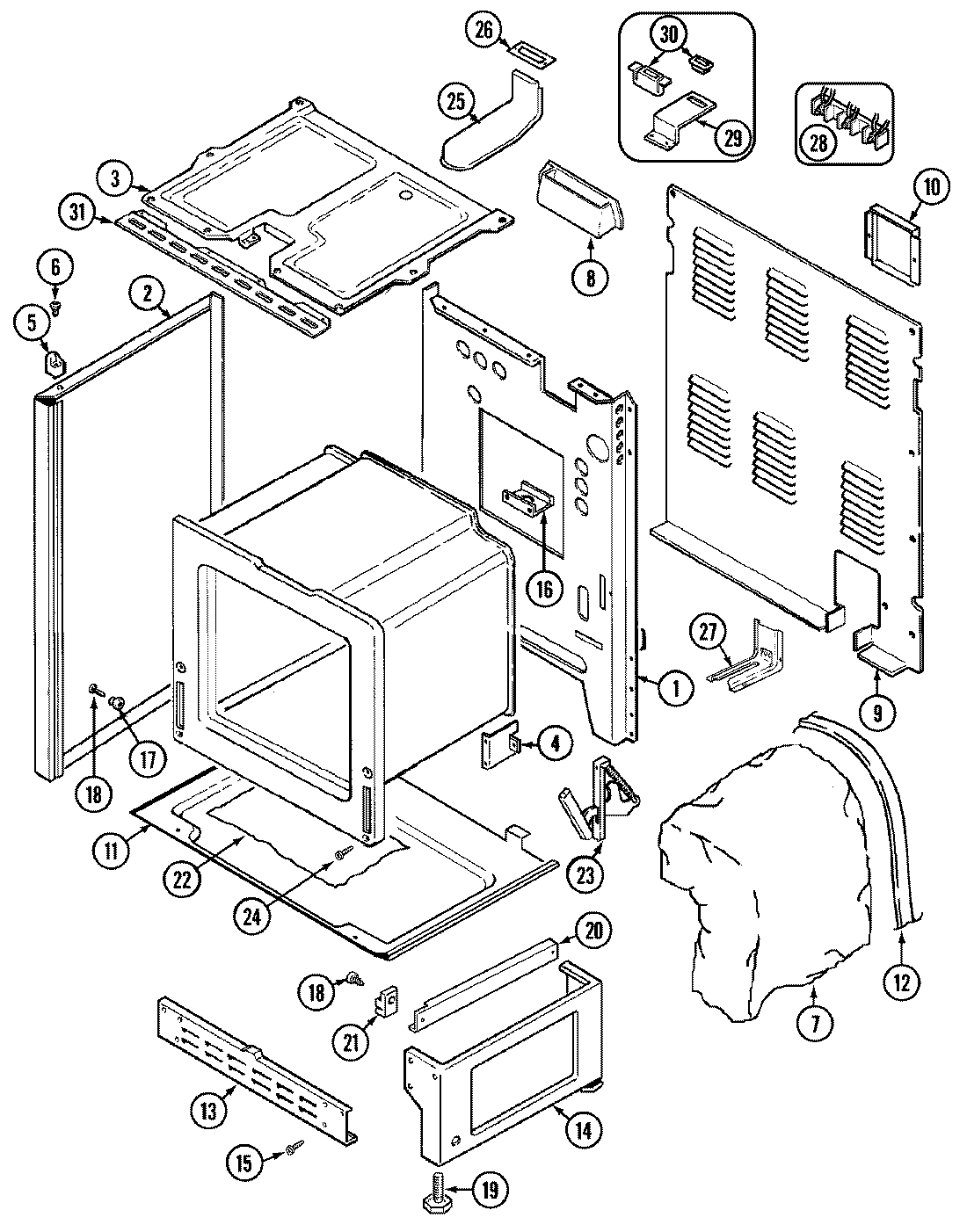

| 1 | MAY 74001341 |
| 2 | MAY 2618F110-71 |
| 3 | MAY 74001695 |
| 3 | MAY 74001707 |
| 3 | MAY 74001753 |
| 4 | SUPPORT,OVEN REAR |
| 5 | SPACER, MAIN TOP (LT) |
| 5 | SPACER, MAIN TOP (RT) |
| 6 | MAY 7118P013-60 |
| 7 | MAY 4804F039-60 |
| 7 | MAY 4804F044-60 |
| 8 | MAY 3826W014-45 |
| 9 | MAY 4005F455-51 |
| 10 | MAY 4005F427-51 |
| 11 | MAY 3804F112-51 |
| 12 | MAY 4820F001-59 |
| 13 | MAY 4020F001-80 |
| 14 | MAY 4020W017-80 |
| 15 | MAY 7101P290-60 |
| 16 | MAY 3605F174-51 |
| 17 | MAY 8004P024-60 |
| 18 | MAY 7101P300-60 |
| 19 | MAY 74001311 |
| 20 | MAY 3406F028-51 |
| 21 | MAY 74002312 |
| 21 | MAY 8004P025-60 |
| 22 | MAY 8312P058-60 |
| 23 | MAY 7106P055-60 |
| 24 | SCREW, HINGE |
| 25 | MAY 4006W107-45 |
| 26 | MAY 7212P036-60 |
| 27 | MAY 3801F218-51 |
| 28 | WPW10245259 Whirlpool Terminal Block |
| 29 | MAY 3801F312-45 |
| 29 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 30 | MAY 7407P106-60 |
| 30 | MAY 74003053 |
| 31 | MAY 3801F305-80 |
