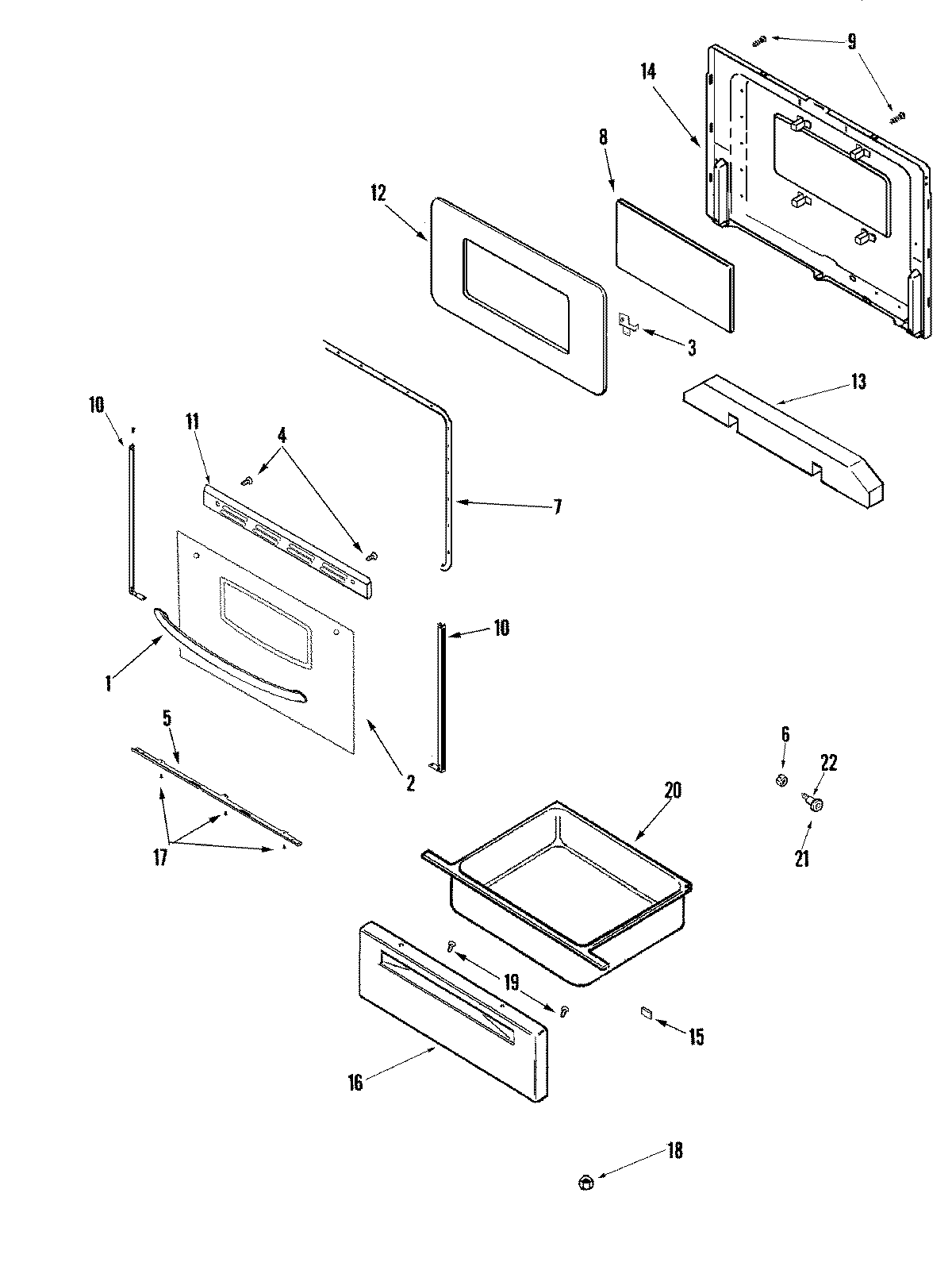

CE35400AAQ 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74010336
2	MAY 74010343
2	MAY 74003146
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	MAY 74006295
4	MAY 74001521
6	WP488130 Whirlpool Air Conditioner Nut
7	WP7212P043-60 Whirlpool Oven Door Seal Gasket
8	MAY 74002002
10	TRIM, DOOR (BSQ-RT)
10	TRIM, DOOR (BSQ-LT)
10	WP74004224 Whirlpool Tape
10	WP74009541 Whirlpool Screw Assembly
11	MAY 74010237
11	MAY 7101P356-60
12	MAY 74002461
13	MAY 74002458
14	MAY 74005097
14	NUT, SNAP (ROUND-BLK)
15	WP74005546 Whirlpool RU Spacer
16	MAY 74005055
17	SCREW
18	WPW10131078 Whirlpool Nut Assembly
20	DRAWER, STORAGE
21	WP74004078 Whirlpool Door Roller
22	SHAFT, STORAGE DRAWER ROLLER
