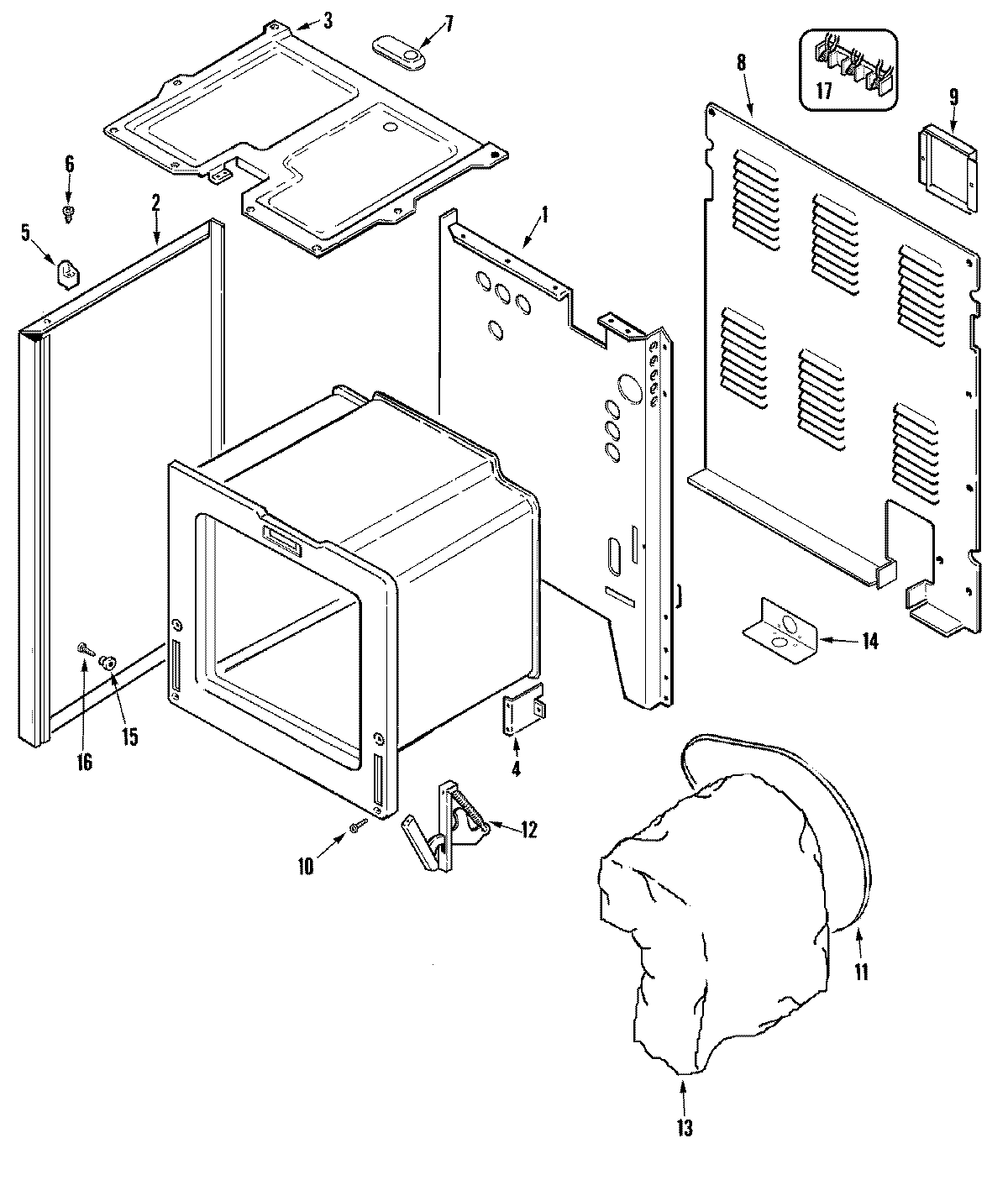

CE35400AAV 01 – BODY

CE35400AAV 01 – BODY

Written by

in

CE35400AAV 01 – BODY

Products

PositionProduct
1MAY 74009677
1MAY 74002334
2MAY 74003236
3MAY 74007026
3WP74003976 Whirlpool Screw
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
7COVER, VENT
7MAY 71001394
8MAY 74009744
9MAY 74010256
10SCREW (10-24X5/16-NI)
11MAY 74003385
12W10876639 Whirlpool Door Hinge Assembly
13MAY 4804F039-60
13MAY 74003112
14W10190166 Whirlpool Service Bracket
14SCREW
15MAY 8004P024-60
16W11693756 Whirlpool Screw Assembly
16MAY 74007476
17SCREW (10ABX1.0-ZN)
17MAY 7111P020-60
17WPW10245259 Whirlpool Terminal Block
17WP7103P027-60 Whirlpool Nut
