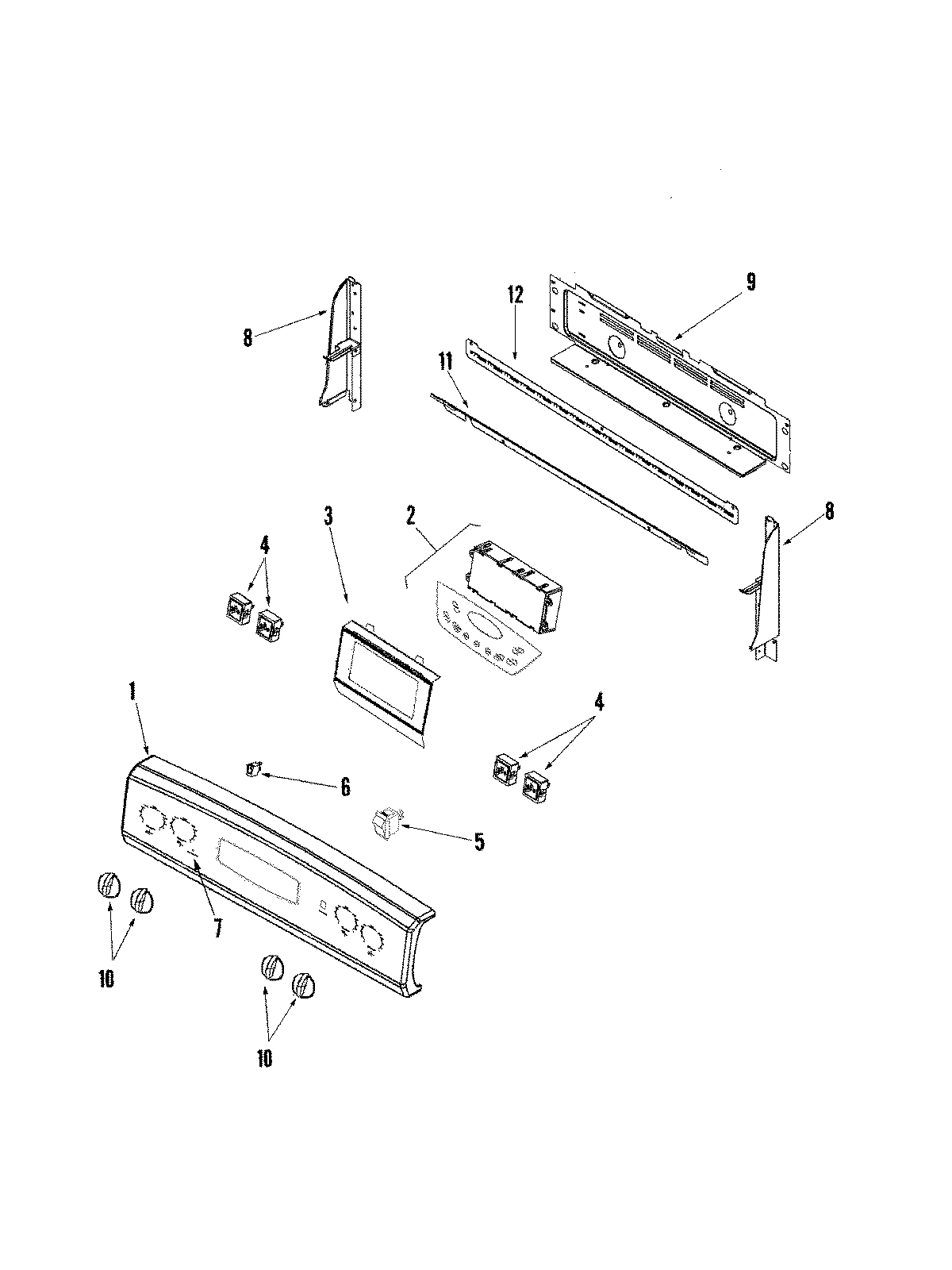

CE35400AAV 02 – CONTROL PANEL

CE35400AAV 02 – CONTROL PANEL

Written by

in

CE35400AAV 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74010359
2MAY 74010311
3WP74003976 Whirlpool Screw
3MAY 74008716
4SCREW
4WP7403P239-60 Whirlpool Oven Switch
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
574008717 Whirlpool White Rocker Switch
6WP74004153 Whirlpool Indicator Light
7WP7730P011-60 Whirlpool Indicator Lens
8WP98008544 Whirlpool Screw Assembly
8MAY 74010211
8MAY 74010212
9MAY 74009943
10WP74010331 Whirlpool White Knob
11MAY 74009701
11SCREW (8BX3/8-NI)
12MAY 74009708
12WP90767 Whirlpool Screw
