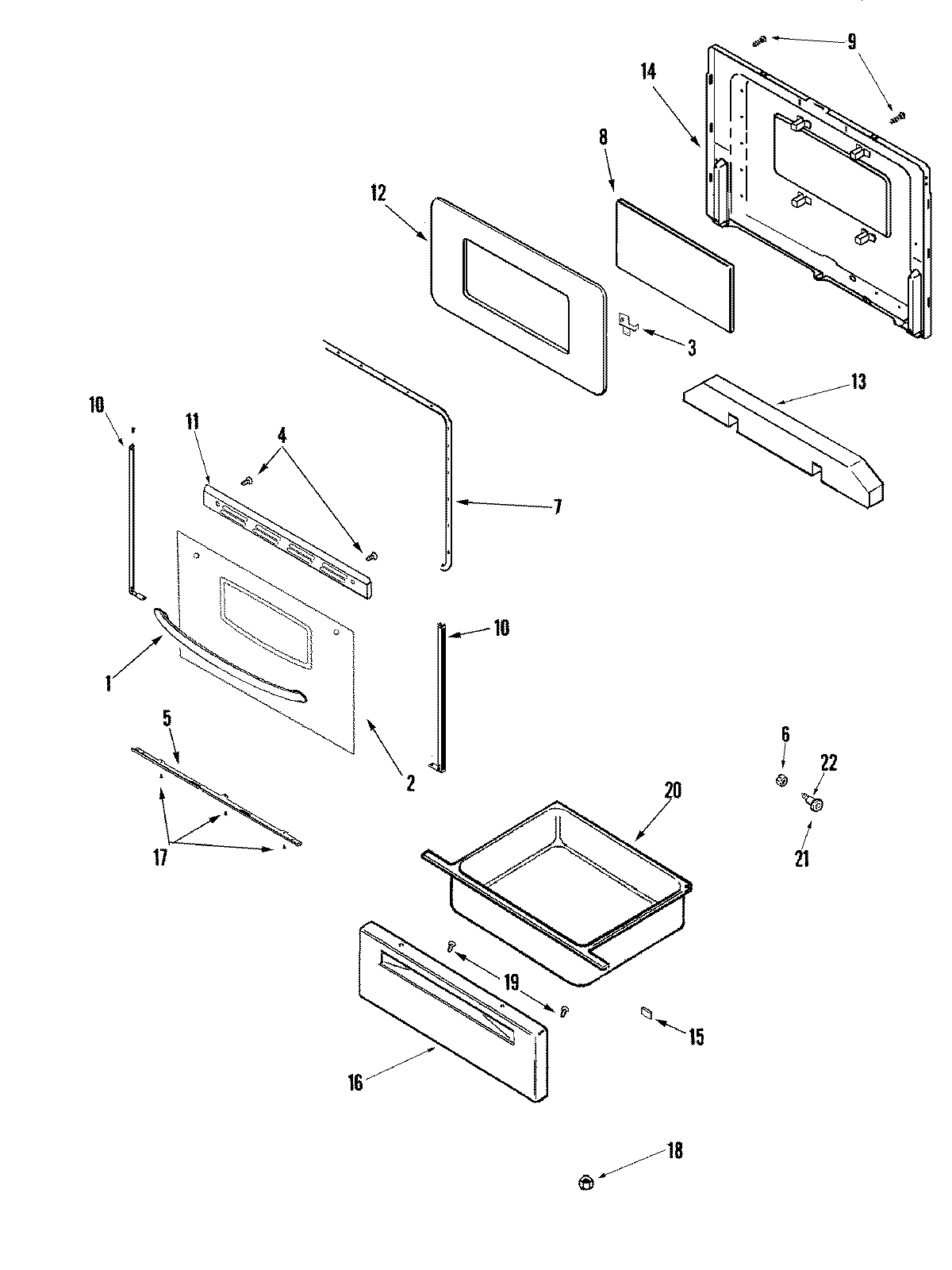

CE35400ACV 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74010337
2	MAY 74010344
2	MAY 74003146
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	MAY 74006295
4	MAY 74001521
5	WP3807F708-71 Whirlpool Support
6	WP488130 Whirlpool Air Conditioner Nut
7	WP7212P043-60 Whirlpool Oven Door Seal Gasket
8	MAY 74002002
10	WP98008544 Whirlpool Screw Assembly
10	WP3608F117-71 Whirlpool Door Trim
10	WP3608F116-71 Whirlpool Door Trim
10	WP74004224 Whirlpool Tape
11	MAY 74010238
11	MAY 7101P356-60
12	MAY 74002461
13	MAY 74002458
14	MAY 74005097
14	NUT, SNAP (ROUND-BLK)
15	WP74005546 Whirlpool RU Spacer
16	MAY 74003399
17	SCREW
18	WPW10131078 Whirlpool Nut Assembly
20	DRAWER, STORAGE
21	WP74004078 Whirlpool Door Roller
22	SHAFT, STORAGE DRAWER ROLLER
