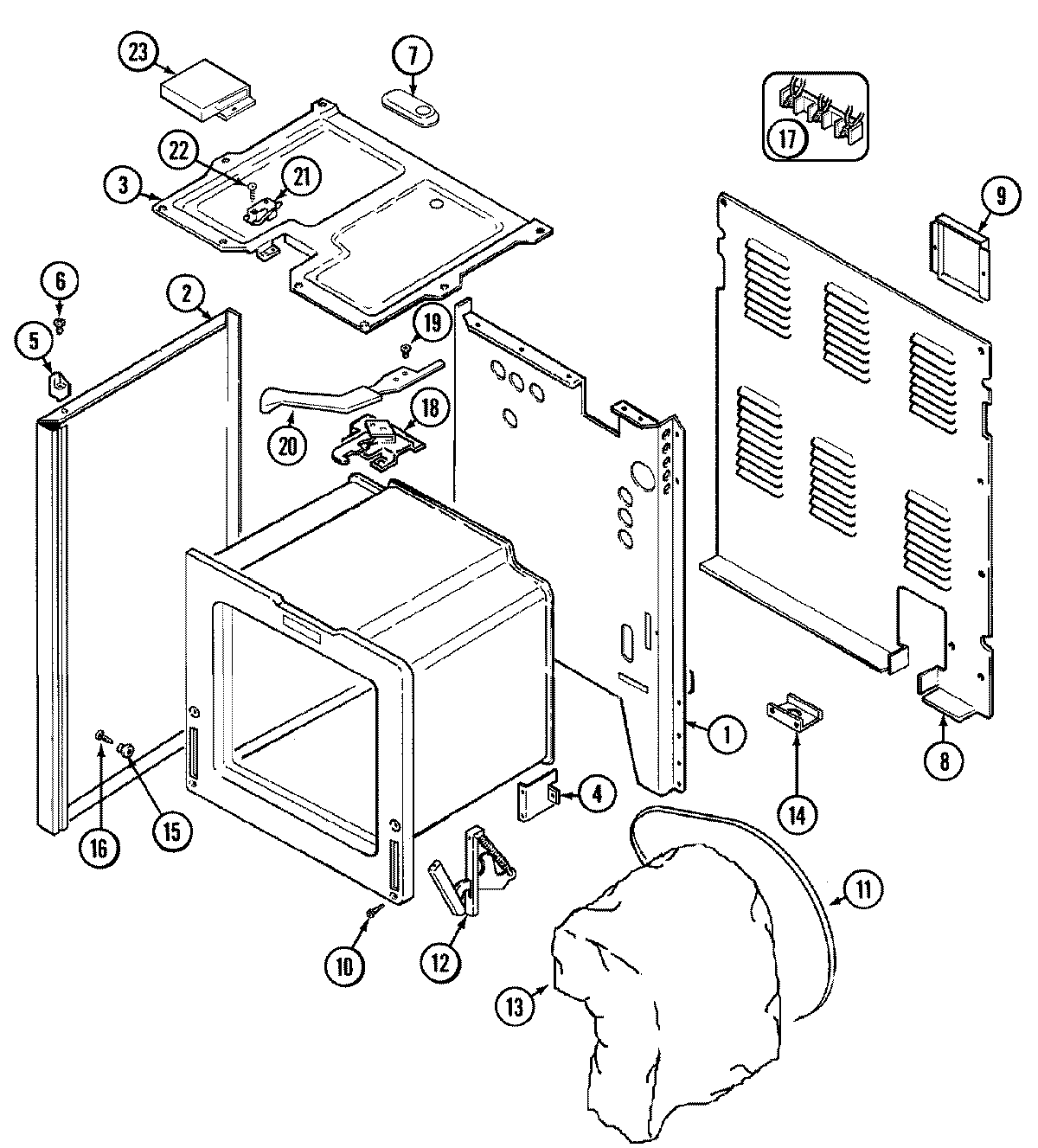

CE38000AAA 01 – BODY

Products

Position	Product
1	MAY 74002334
1	MAY 74001772
2	MAY 74003237
2	MAY 8270P078-60
3	MAY 74003403
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	SCREW
7	COVER, VENT
8	MAY 74003241
9	MAY 4005F427-51
11	MAY 74003385
12	WP74011140 Whirlpool Oven Hinge
13	MAY 74003381
13	WP74010942 Whirlpool Insulation
14	W10190166 Whirlpool Service Bracket
15	MAY 8004P024-60
16	MAY 74001449
16	W11693756 Whirlpool Screw Assembly
17	WP7103P027-60 Whirlpool Nut
17	SCREW (10ABX1.0-ZN)
17	WPW10245259 Whirlpool Terminal Block
18	MAY 74003139
18	MAY 74001084
18	MAY 74003380
19	WP4159193 Whirlpool Screw
20	MAY 74003005
21	MAY 74003630
21	MAY 74003383
22	MAY 912012
23	MAY 74003479
