CE38300BAQ 04 – OVEN/BASE

CE38300BAQ 04 – OVEN/BASE

Written by

in

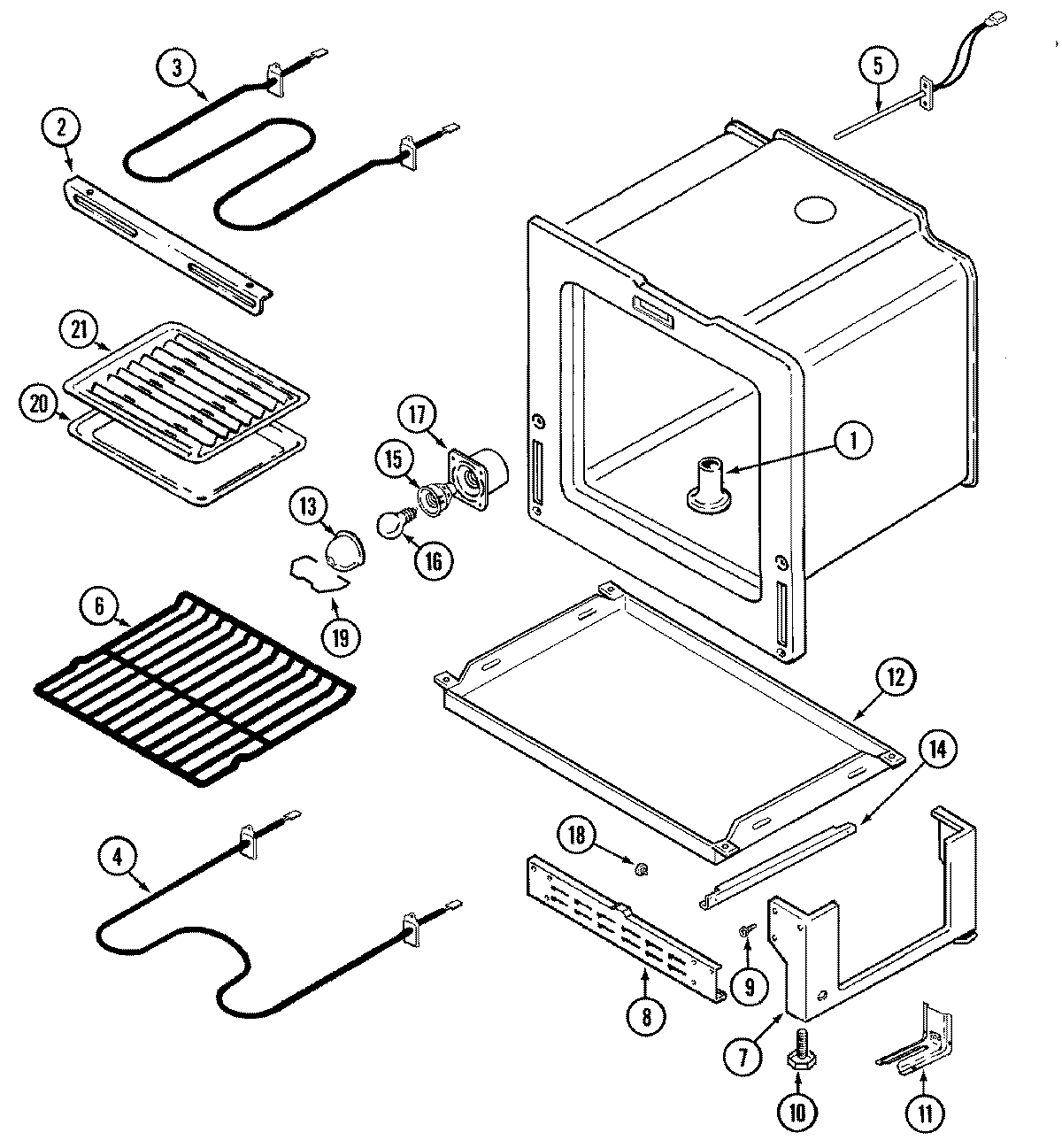

CE38300BAQ 04 – OVEN/BASE

Products

PositionProduct
1MAY 74003469
2SUPPORT, BROIL ELEMENT
3WPW10310249 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
512001656 Whirlpool Range Oven Temperature Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 74006325
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP7101P485-60 Whirlpool Anchor Tip
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12MAY 74005250
13MAY 74003389
14RUNNER, DRAWER
15MAY 74003387
15SCREW
16MAY Y707319
17MAY 74003388
1874005230 Whirlpool Oven Lock Nut (8-32)
18SHAFT, STORAGE DRAWER ROLLER
18WP74004078 Whirlpool Door Roller
19MAY 74003391
20MAY Y3401F02019
21MAY Y3413F01619
