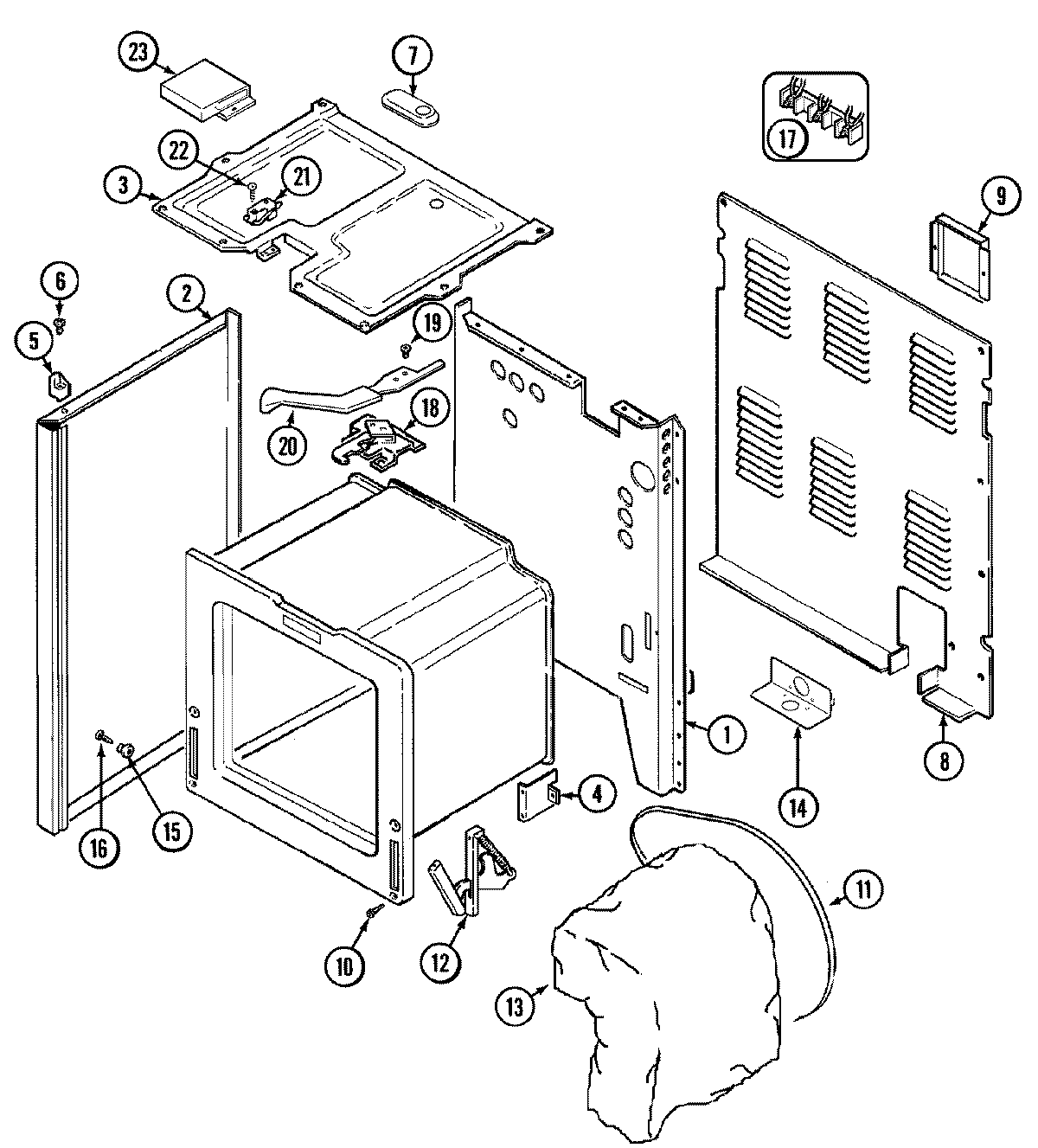

CE38300BAV 01 – BODY

Products

Position	Product
1	MAY 74006322
1	MAY 74002334
2	MAY 74003236
2	MAY 8270P078-60
3	MAY 74006384
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	SCREW
7	COVER, VENT
8	MAY 74003241
9	MAY 4005F427-51
11	MAY 74003385
12	WP74011140 Whirlpool Oven Hinge
13	MAY 74005771
13	WP74010942 Whirlpool Insulation
14	W10190166 Whirlpool Service Bracket
15	MAY 8004P024-60
16	MAY 74001449
16	W11693756 Whirlpool Screw Assembly
17	WP7103P027-60 Whirlpool Nut
17	WPW10245259 Whirlpool Terminal Block
17	SCREW (10ABX1.0-ZN)
18	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
18	MAY 74006342
18	MAY 12001943
18	MAY 74003380
18	MAY 74001084
20	MAY 74002973
21	MAY 7003P063-60
21	MAY 74003383
22	WP4159193 Whirlpool Screw
23	MAY 74003479
